Oil and gas modules, bridge girders, shipyard subassemblies, and tower sections all share the same operational reality: when fit-up, cutting, drilling, or welding queues build, the schedule slips fast and recovery costs compound across shifts. As Regional Sales Executive at Mac-Tech, I act as the single point of contact to coordinate layout planning, automation integration, installation, commissioning, training, and service continuity so your line supports reliable throughput, not just peak-rate capacity.
Throughput Reliability Challenges in Heavy Fabrication Line Layouts
Throughput reliability breaks down when material movement, crane time, and staging space are treated as secondary to machine selection. The business impact is measurable: missed ship dates, overtime spikes, WIP inflation, and avoidable rework when parts are handled too many times or staged in unsafe, unplanned zones.
Common failure points
- Excess touchpoints: 6–10+ part moves per beam/plate bundle drives damage and rework above 2–5%
- Crane dependency: 30–60 minutes of crane queue time per shift becomes the hidden bottleneck
- Unmanaged WIP: 1–3 days of WIP piled near machines increases search time by 10–20 minutes per job
- Safety conflicts: mixed pedestrian and crane aisles raise near-miss frequency and slow lifts due to spotter requirements
SMALL SERIES ANGLE ROLL BENDING MACHINE
IPG LIGHTWELD LASER WELDING & CLEANING SYSTEMS
Decision Criteria for Layout Planning and Structural Automation Integration
Executives need layout decisions tied to schedule risk, labor availability, and cash conversion, not just equipment footprint. The goal is a line that maintains output across variability: mixed profiles, changing weld procedures, fluctuating steel deliveries, and uneven staffing.
Decision criteria that hold up in production reviews
- Takt and buffer logic: sized to protect 1–2 critical constraint processes without creating 2+ days of excess WIP
- Handling strategy: target 2–4 total touches from receipt to ship, with defined lift plans and rigging points
- Changeover performance: keep changeovers under 15–30 minutes where variability is high, or isolate via cells
- Automation fit: match processes to the right platforms, such as Prodevco for structural drilling and processing, Akyapak for plate processing and forming, Liberty for structural material handling systems, Ermaksan for press brake capacity, Ercolina for section bending, and HSG Fiber Lasers where fiber cutting supports your mix and tolerances
Line Configuration Options: Flow, Buffers, Material Handling, and Automation Cells
A reliable line layout usually comes down to choosing the right flow model and then engineering infeed, outfeed, and staging so cranes are a contingency, not the primary conveyor. The best configuration is the one that keeps your constraint fed while minimizing travel distance, lift frequency, and interference between trades.
Configuration patterns that improve schedule reliability
- Straight-through flow:
- 1 infeed lane and 1 outfeed lane per major process, with 20–40 feet clear to prevent backflow
- 1–2 buffer zones sized for 2–4 hours of upstream output, not full-shift stockpiles
- U-shaped or parallel lines:
- reduces forklift travel by 15–30% when receiving and shipping doors are fixed
- allows shared staging for weld prep and QA without crossing crane aisles
- Cell-based islands:
- isolates high-mix work to protect the main line from changeover volatility
- improves utilization by keeping specialized tooling inside the cell, reducing setup hunts to under 5 minutes per job

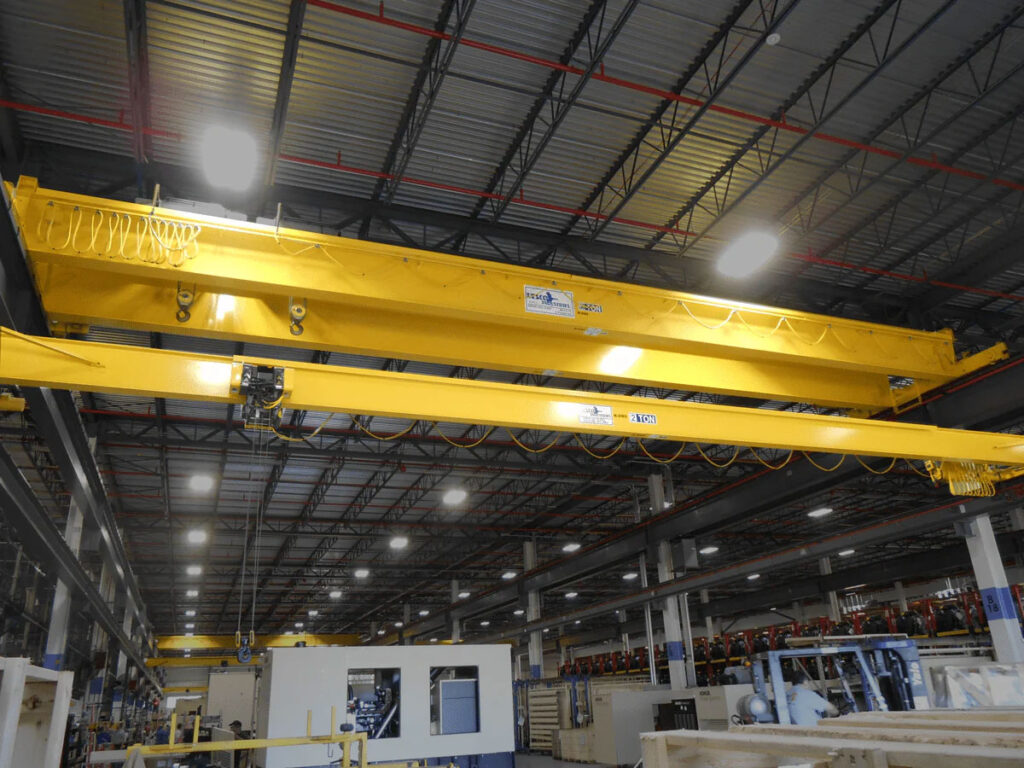

- Material handling and cranes:
- dedicate crane “no-cross” safety corridors and schedule lift windows to reduce unplanned crane use by 20–40%
- integrate Liberty-style handling where feasible to remove repetitive lifts and stabilize cycle time
Integration Execution Risks and Mitigation Under a Single Point of Contact
Most automation projects miss their throughput targets due to integration gaps, not machine performance. The risk is scope fragmentation: multiple vendors, unclear handoffs, and commissioning that proves a machine works but not that the line sustains output over a full week of production.
How I mitigate integration risk as the one-call owner
- Unified layout and responsibility matrix: defined boundaries for foundations, power, air, network drops, and crane coverage so nothing lands in a grey zone
- Phased commissioning: prove safety, then single-machine rates, then end-to-end flow with real jobs and real operators across 2–3 shifts
- Training and adoption plan: operator, programmer, and maintenance training scheduled before ramp, with documented standard work and escalation paths
- Lifecycle continuity: parts, service cadence, and preventive maintenance planning aligned across the integrated systems so uptime does not degrade after the first 90 days
For planning tools, replacement consumables, and standard accessories that support readiness, reference https://shop.mac-tech.com/.
KPIs and Validation Methods to Prove Sustainable Throughput Reliability
Sustainable throughput reliability is proven by weekly performance, not best-day speed. Validation should include a baseline, a ramp plan, and documented acceptance criteria tied to shipment commitments and labor constraints.
KPIs that show reliability, not just capacity
- On-time completion rate: increase by 10–20 points within 60–120 days post-ramp
- OEE at the constraint process: target 60–75% in mixed production, measured across 2–3 shifts
- Queue time at the constraint: keep average queue under 60–120 minutes with visible WIP limits
- Touches per part: reduce to 2–4 from receipt to ship; track exceptions with root cause codes
- Rework rate: reduce by 1–3 points through fewer handling events and clearer staging segregation
- Safety performance: zero recordables tied to material handling, supported by mapped pedestrian zones and lift plans
Next Steps for Structural Fabricators Planning Automation Ready Layouts
Start with a current-state map that captures where time is really lost: crane waits, staging hunts, and rehandling. Then design the future-state around protected flow to the constraint, with explicit space for infeed, outfeed, QA, rework containment, and safe pedestrian movement.
A practical executive-ready plan
- Week 1–2: throughput study and lift map, including measured travel distance and crane utilization per shift
- Week 3–6: layout options with buffer sizing, safety zoning, and utility plans validated against the production schedule
- Week 6–12+: equipment integration plan and ramp schedule, with acceptance tests tied to weekly output and staffing levels
If digital workflow and quoting discipline are part of your throughput constraints, a connected approach can help, and https://vayjo.com/ may be relevant depending on your scope.
FAQ
What lead times should I expect for an automation-ready layout and integrated equipment plan?
Typical planning and layout definition can be completed in weeks, while equipment and installation timelines depend on scope and site readiness. I coordinate sequencing so facility work does not become the pacing item.
How do you reduce implementation risk when multiple systems are involved?
I manage a single integrated plan covering layout, utilities, safety, installation, and commissioning, with clear acceptance criteria tied to throughput and uptime.
Will my operators and maintenance team need extensive retraining?
Training is role-based and scheduled ahead of ramp, with standard work and escalation paths so shifts run consistently. The goal is faster proficiency, not dependence on a few experts.
How do you protect uptime after the first few months?
We align PM schedules, spares strategy, and service response expectations across the line so reliability is maintained as production pressure increases.
How is ROI measured in a heavy fabrication layout project?
We track labor hours per ton, touches per part, queue time at the constraint, rework percentage, and on-time shipment performance, then validate against baseline over multiple weeks.
What is the integration scope you can coordinate as one point of contact?
Layout planning, equipment selection, handling strategy, installation oversight, commissioning, training, and long-term service continuity across the integrated workflow.
