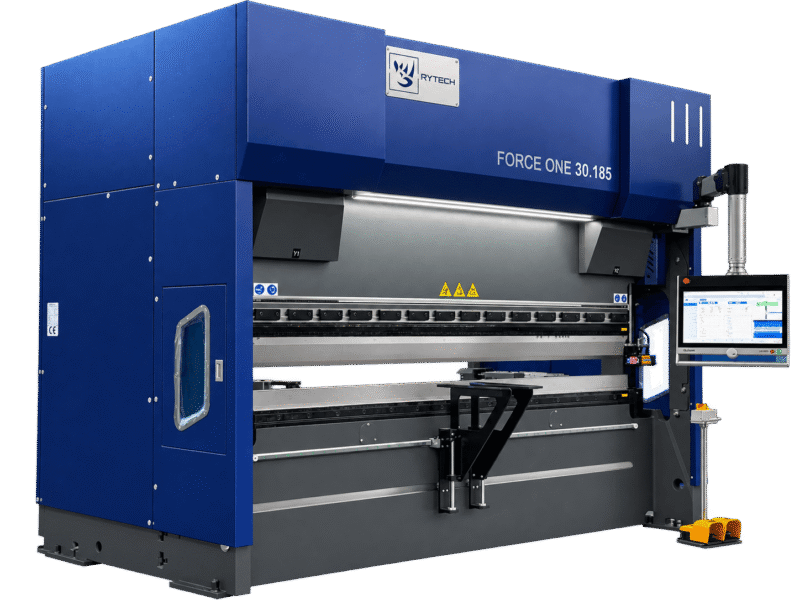

RYTECH FORCE ONE HYDRAULIC PERFORMANCE PRESS BRAKE

Description

Standard Equipment

STANDARD EQUIPMENT

• DELEM 58TX CNC Control

• Y1, Y2, X & R Controlled Axes

• Mechanical Crowning (B-CM)

• Precision Frame Technology

• Heavy-Duty Stress-Relieved Welded Steel Frame

• Precision-Guided Ram

• GHP Precision Backgauge System

• High-Speed Rack-and-Pinion Backgauge Drive

• Dual-Guide Rail Construction

• Anti-Collision Backgauge Fingers

• Two Rear Fingers

• KYOKKO Quick Change Tooling System

• Manual European-Type Single-Side Upper Clamping

• Manual Bottom Clamping

• EZ Front Support Arms

• HAWE Hydraulic Valve Group

• High-Visibility LED Work Lighting

• DSP AP+MCS Laser Safety System

• Dedicated Safety PLC Controls

• Side Protective Door

• Rear Protection Door

• Triple-Point Hydraulic Monitoring

• Heat Exchanger

• Air Conditioner

• CE/UL Standard

• 480V, 3-Phase, 60 Hz Electrical Configuration

Specifications

SPECIFICATIONS

Rytech Force One Technology

RYTECH FORCE ONE TECHNOLOGY

Precision Frame Technology

• Heavy-Duty Welded Steel Construction

• Stress-Relieved Frame for Long-Term Accuracy

• High-Rigidity Design Minimizes Deflection

• Open-Throat Design for Larger Parts

• Precision Ram Guidance

• Built for Dependable Production

Precision Frame Technology utilizes a heavy-duty, stress-relieved welded steel frame to provide rigidity, stability, and consistent bending accuracy. The open-throat design accommodates larger workpieces, while precision ram guidance supports dependable performance throughout production.

CNC System

• DELEM DA-66S CNC Control Featured in Brochure

• Advanced 2D Graphical Touchscreen Programming

• 24″ High-Resolution Color TFT Display

• Automatic Bend Sequence Calculation

• Collision Detection

• 3D Visualization in Simulation & Production Modes

• Industry 4.0-Ready Network Connectivity

• Optional OPC-UA Integration

• Shop Floor Control & Remote Diagnostics Capabilities

The CNC System simplifies programming, setup, and production through advanced touchscreen controls and graphical visualization. Automatic bend sequencing, collision detection, and 3D simulation help improve accuracy and reduce setup time.

Configuration note: The brochure’s CNC technology section features the DELEM DA-66S, while its standard configuration table specifies the DELEM 58TX. I have retained the 58TX under Standard Equipment rather than treating the DA-66S as standard.

Dynamic Crowning System

The Dynamic Crowning System automatically compensates for bed deflection throughout the bending process. Controlled through the CNC, it helps maintain consistent bend angles, improve repeatability, and reduce setup time and operator adjustments.

LED Positioning System

The LED Positioning System provides real-time visual backgauge positioning guidance in the work area. This helps operators align material more quickly, improve setup accuracy, and reduce positioning errors during production.

Quick Change Tooling

The Quick Change Tooling System features precision upper and lower clamping for secure, efficient tooling changes. The quick-release upper clamp supports vertical tool loading, while rigid lower clamping provides stability for consistent bending performance.

Precision Backgauge

• High-Speed Rack-and-Pinion Positioning

• Dual-Guide Rail Construction

• Precision X & R Axis Positioning

• Anti-Collision Backgauge Fingers

• Two Rear Fingers

• Reliable, Repeatable Production

• X-Axis Stroke: 23.62″

• R-Axis Stroke: 7.87″

• X-Axis Velocity: 1,417.32 IPM

• R-Axis Velocity: 590.55 IPM

• Z-Axis Velocity: 1,889.76 IPM

The Precision Backgauge provides fast, accurate, and repeatable part positioning. Its rigid dual-guide rail construction and rack-and-pinion drive support smooth movement and stable positioning throughout production.

Integrated Safety System

• Laser Safety Protection System

• Dedicated Safety PLC Controls

• Side & Rear Safety Guarding

• Triple-Point Hydraulic Monitoring

• Comprehensive Machine Protection

The Integrated Safety System combines laser guarding, dedicated safety PLC controls, and hydraulic monitoring to enhance operator protection while maintaining productivity.

Options

OPTIONS

• DELEM DA-69S CNC Control Upgrade

• 3D Bending Software

• Hydraulic Upper & Lower Tool Clamping

• Angle Control

• Sheet Follower

• Dual Servo Hydraulic System

• Optional OPC-UA Connectivity

• Industry 4.0 Integration

Additional Details

ADDITIONAL DETAILS

• Available Models: Four Configurations

• Hydraulic Performance Press Brake

• Heavy-Duty Welded Steel Construction

• DELEM CNC Control Technology

• Dynamic Mechanical Crowning

• Precision X & R Axis Backgauge

• Quick Change Tooling

• Integrated LED Work Lighting

• Integrated Operator Safety Systems

• Heat Exchanger & Air Conditioner Included

• Mac-Tech Technical Services Support

• Spare Parts Inventory in Milwaukee, Wisconsin

• One-Year Warranty
