DOWNSPOUT ROLL FORMER 3X4 INCH
The Profiilikeskus Oy 3” x 4” Downspout Roll Former is a high-speed automated system designed for producing rectangular downspouts and elbows from pre-painted galvanized steel. This all-in-one machine combines straight downspout production, elbow forming, and end crimping into a single efficient production line for gutter and roofing manufacturers.
DOWNSPOUT ROLL FORMER 3X4 INCH
Description
Description
The Profiilikeskus Oy Rectangular Downspout and Elbow Roll Forming Machine is engineered for fast, precise production of 3” x 4” rectangular downspouts and elbow components. Designed for roofing and rainwater system manufacturers, this all-in-one solution integrates straight pipe forming, elbow forming, and end crimping into one automated machine platform. The system processes 26-gauge DX52 and DX53 steel and delivers production speeds up to approximately 147 ft/min while producing up to 500 elbows per hour.
The machine features an easy-to-use programmable touchscreen control system capable of storing up to 100 product programs with programmable lengths in both inches and millimeters. Hydraulic post-cutting and crimping systems provide accurate finishing, while the integrated elbow forming section allows production of standard A1, A2, B1, and Bs elbows with multiple bending angles including 45°, 60°, and 90°. A servo-driven chain system ensures smooth, reliable forming performance, making this line an efficient solution for continuous downspout production operations.
Equipped With
Equipped With
EQUIPPED WITH

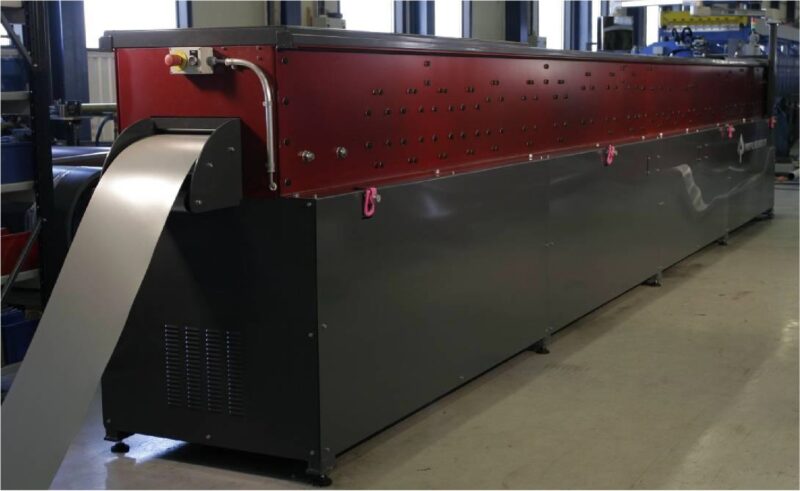

- Integrated Downspout Roll Forming Section

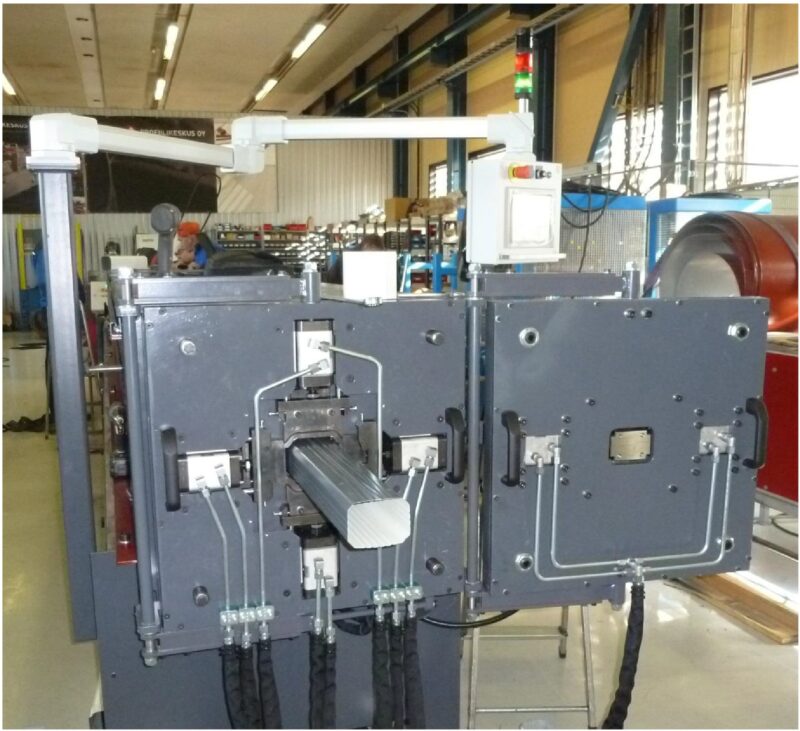

- Integrated Elbow Forming Section
- Hydraulic Post Cutter
- End Crimping System

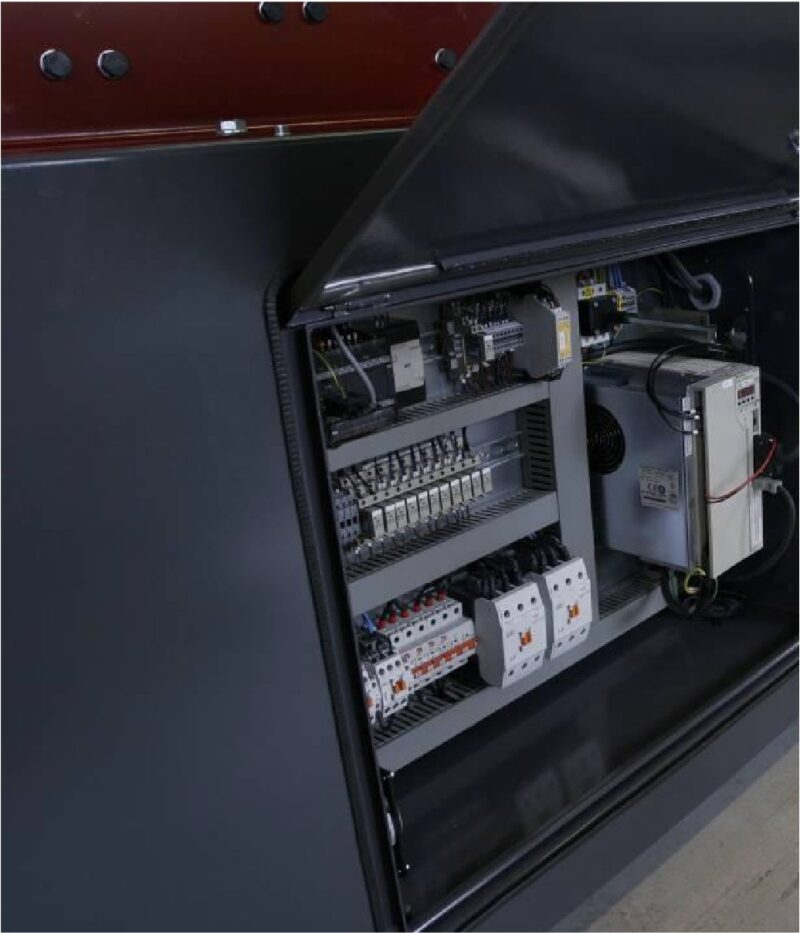

- Touchscreen Programmable Control
- Servo Motor Drive System

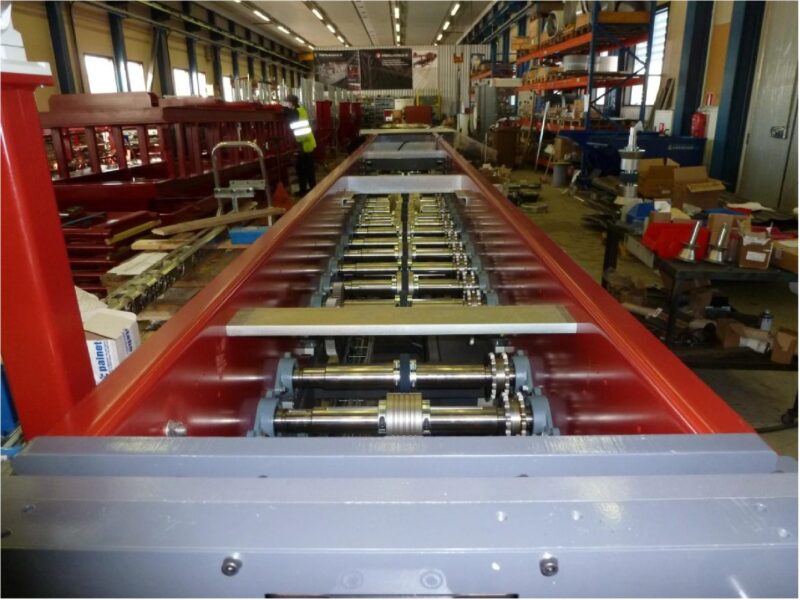

- Chain Driven Roll Forming System
- Product Program Storage
- Hydraulic Crimping Plate
- Transformer for 480V Power

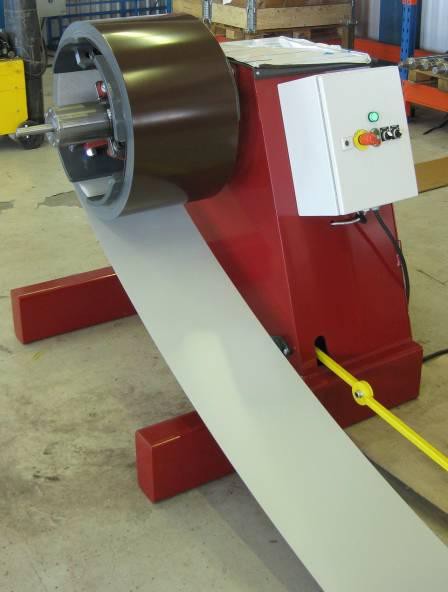

- 2 Ton Motorized Decoiler
- Automatic Sensor Arm Coil Feed System
- Electrical Wheeling Decoiler System
Spec Sheet
Spec Sheet
SPEC SHEET
- Manufacturer: Profilikeskus Oy
- Machine Type: Rectangular Downspout and Elbow Roll Former

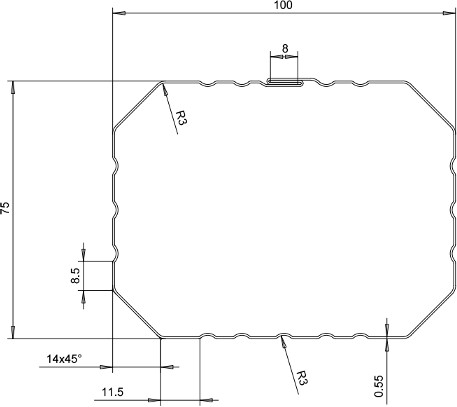

- Profile Size: 3″ x 4″
- Material Capacity: 26 ga steel
- Material Type: DX52 / DX53 steel
- Production Speed: Approx. 147.64 ft/min
- Elbow Production Capacity: Up to 500 elbows/hour
- Machine Dimensions (L x W x H): 288.7′ x 22.96′ x 39.37′
- Machine Weight: 11,905 lbs
- Servo Drive Motor: 4.4 kW
- Hydraulic System: 4 kW / 125 bar
- Power Requirement: 3x480V, 60 Hz
- Programmable Product Storage: 100 programs
- Programmable Lengths: Inches or millimeters
- Compatible Elbow Angles: 45°, 60°, 90°
- Decoiler Capacity: 2 Ton
- Maximum Coil Width: 15.74″
- Decoiler Expansion Range: 14.566″ – 24.803″
- Decoiler Power: 1.5 kW
- Decoiler Electrical Requirement: 3x480V, 16 Amp, 60 Hz
