ROUND DOWNSPOUT MACHINE 4 INCH
The Profiilikeskus 4″ Round Downspout Machine is a high-speed automated roll forming system designed for producing round downspouts and crimped elbows. This all-in-one machine combines straight downspout production, elbow forming, and end reducing into a single efficient line for gutter and roofing manufacturers.
ROUND DOWNSPOUT MACHINE 4 INCH
Description
Description

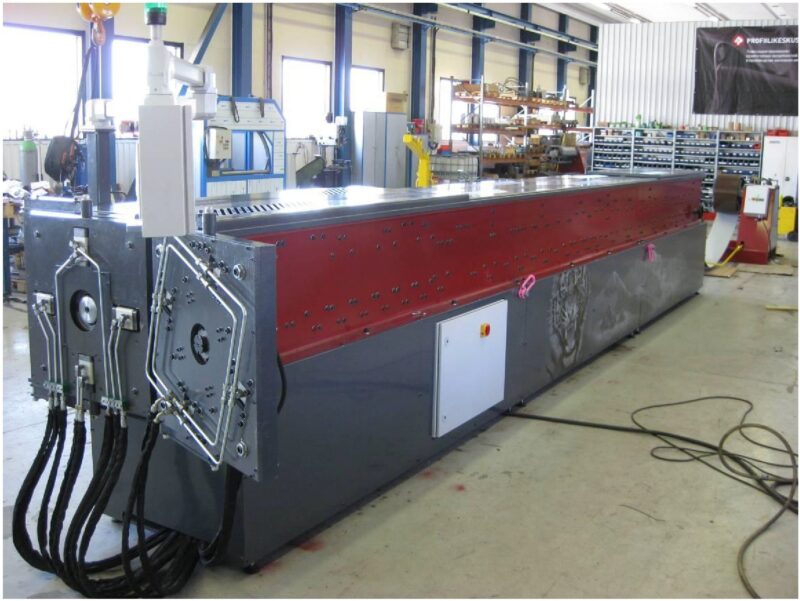

The Profiilikeskus 4″ Round Downspout Machine is engineered for efficient production of round downspouts and crimped elbows using DX52 and DX53 steel materials. Designed for high-volume gutter and rainwater system manufacturing, this machine integrates straight pipe forming, elbow forming, cutting, and end crimping into one streamlined production system. The line delivers rolling speeds up to 45 m/min while producing up to 500 elbows per hour for fast and consistent production output.
The machine features an easy-to-use programmable control system capable of storing up to 100 product programs with programmable lengths in both inches and millimeters. Hydraulic post-cutting and crimping systems ensure accurate finishing, while the servo-driven chain system provides smooth material flow and reliable forming performance. Integrated elbow forming allows production of standard A1, A2, B1, and Bs elbows with programmable 45°, 60°, and 90° bend configurations.
Equipped With
Equipped With
EQUIPPED WITH

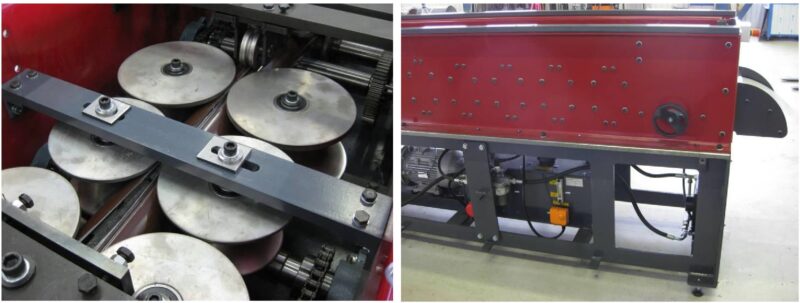

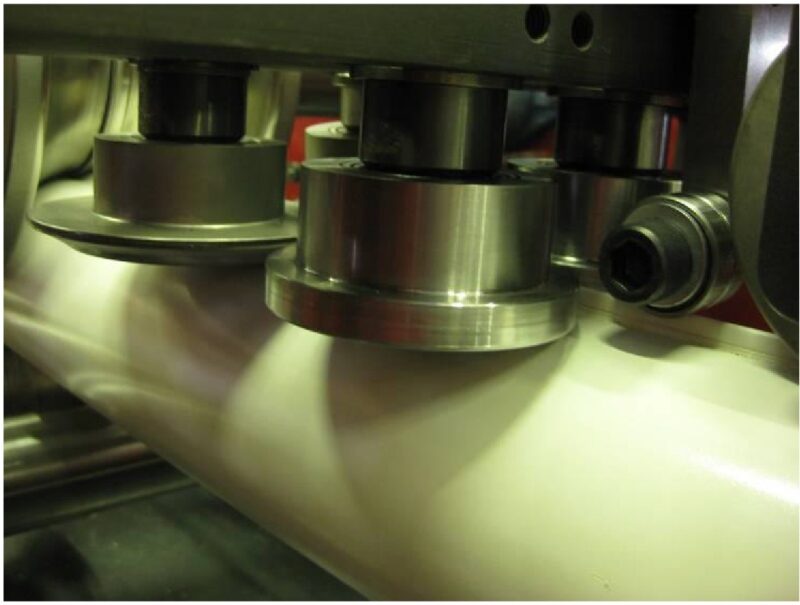

- Integrated Downspout Roll Forming Section

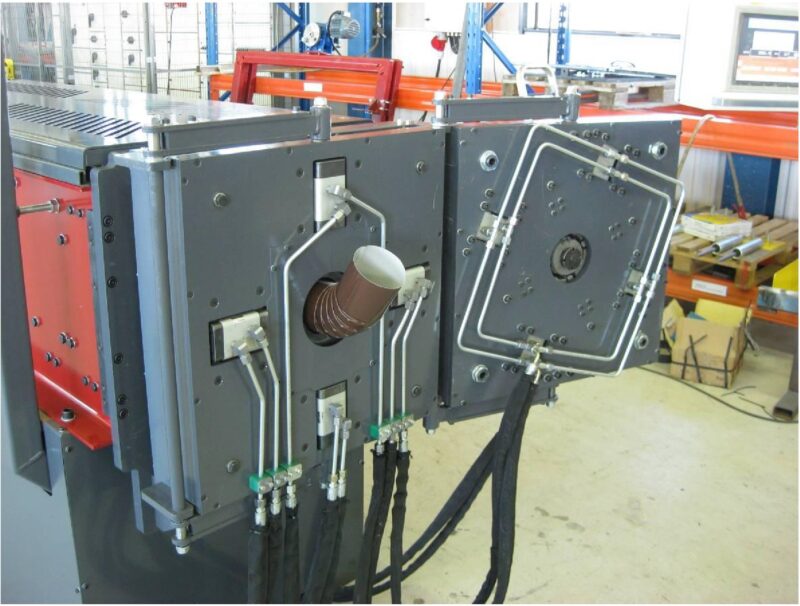

- Integrated Elbow Forming Section
- End Reducer Section
- Hydraulic Post Cutter
- Hydraulic Crimping System
- Touchscreen Programmable Control
- Servo Motor Drive System

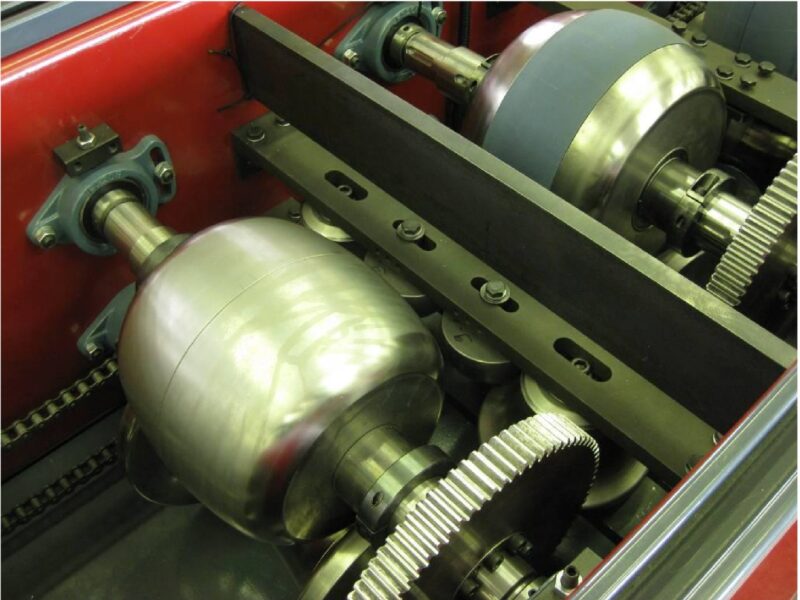

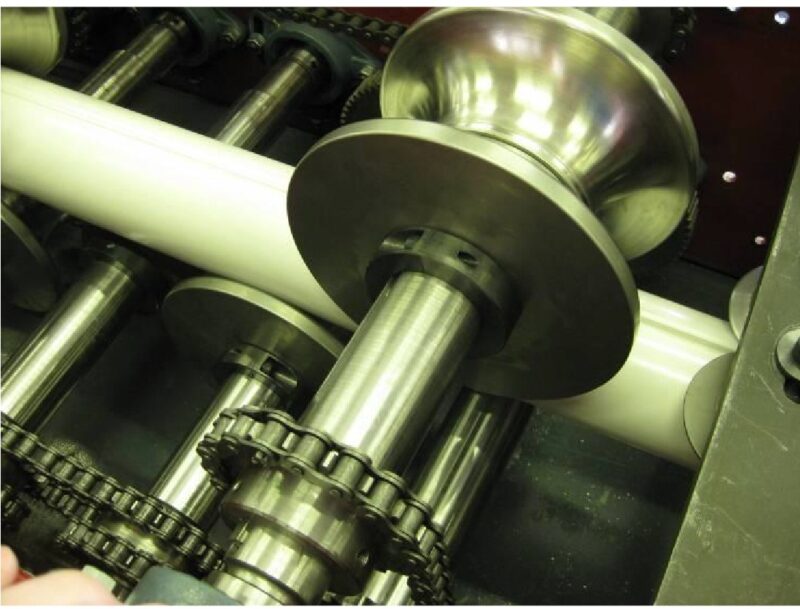

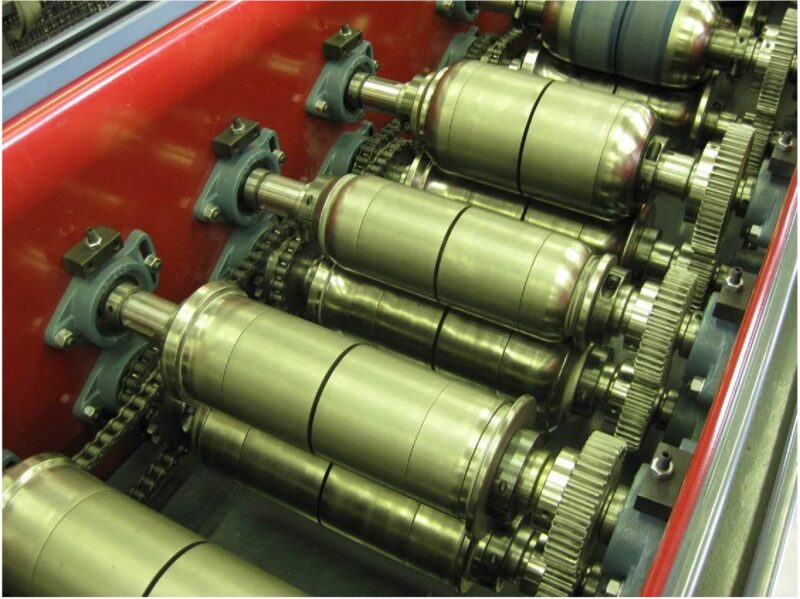

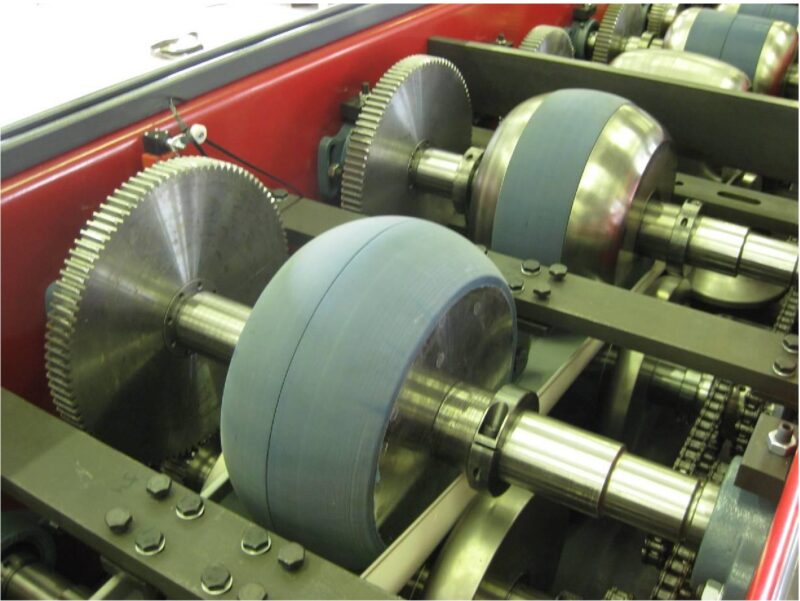

- Chain Driven Roll Forming System
- Product Program Storage

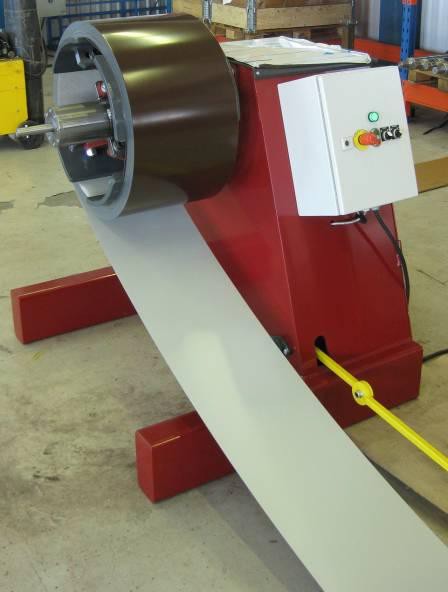

- 2 Ton Motorized Decoiler
- Automatic Sensor Arm Coil Feed System
- Mechanical Coil Tightening System
Spec Sheet
Spec Sheet
SPEC SHEET
- Manufacturer: Profiilikeskus
- Machine Type: Round Downspout Machine
- Downspout Size: Ø 4″
- Material Type: DX52 / DX53 Steel
- Material Thickness: 0.5 mm
- Machine Dimensions: 10000 x 700 x 1200 mm
- Production Speed: 45 m/min
- Elbow Production Capacity: 500 elbows/hour
- Servo Drive Motor: 4.4 kW

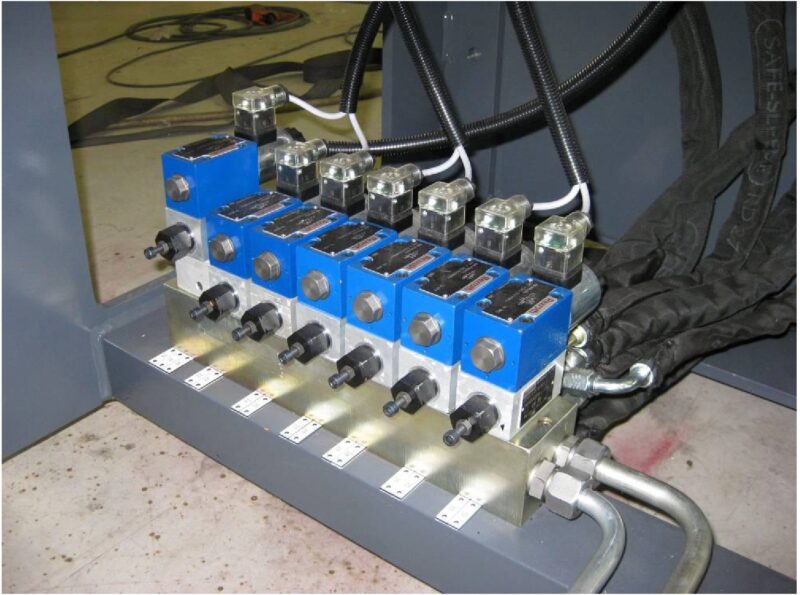

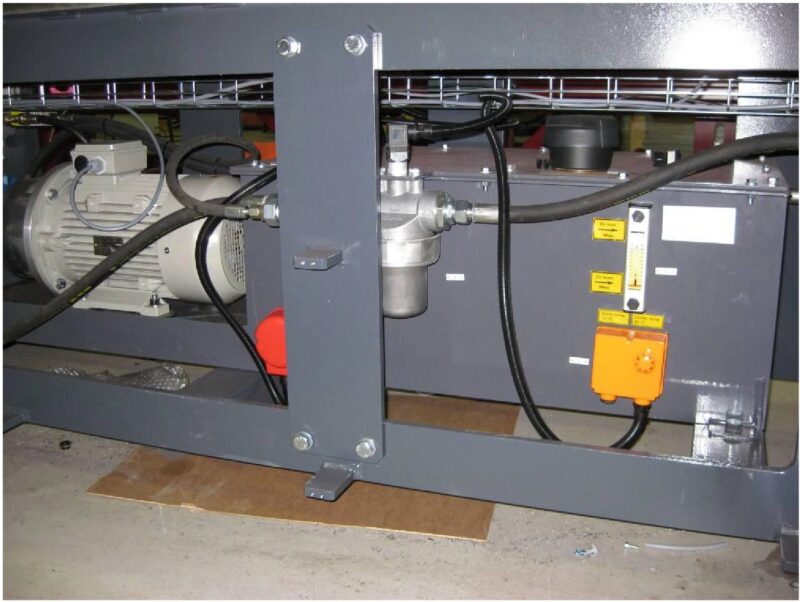

- Hydraulic System: 4 kW / 125 bar
- Power Requirement: 3x480V, 60 Hz
- Programmable Product Storage: 100 programs
- Programmable Lengths: Inches or millimeters
- Compatible Elbow Angles: 45°, 60°, 90°
- Decoiler Capacity: 2 Ton
- Maximum Coil Width: 400 mm
- Decoiler Expansion Range: 370 – 630 mm
- Decoiler Power: 1.5 kW
- Decoiler Electrical Requirement: 3x600V 16 Amp 60 Hz
