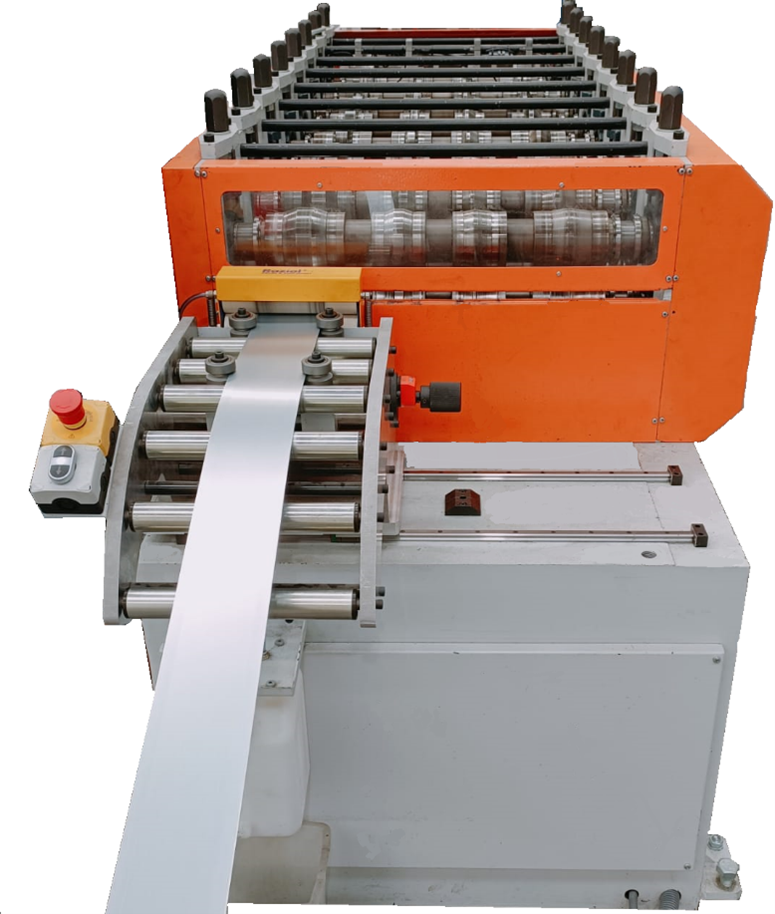

Downspout Roll Former

Description

Forming gutters and downspouts is faster, cheaper, and more consistent with a downspout roll former from Mac-Tech. This remarkable machine uses a series of steel rollers to create bends incrementally in flat metal. It uncoils a rolled metal strip and feeds it, assembly-line fashion, through a series of steel rollers that function as dies, forming precise bends along the way until the desired form is achieved.

A downspout roll forming machine works without heating the metal, reducing the risk of heat-related deformation, and lowering energy costs. Contact Mac-Tech for more details on how this downspout roll former can boost your metal fabrication operation.

Touch Screen Control Panel

• Easy to use 7′ Touch Screen Controller

Decoiler

• Capacity load up to 1.5 metric tons.
• Automatically reads the gap in the sheet using sensor technology which avoids touching the sheet to avoid damage.

Roll Former

• 1.1191 steel rolls with surface treatment in a hard chrome with a polished finish
• Profile tuning is accomplished with the vertical roller station
• The traction unit is comprised of a helical geared motor by padlock and gear transmission system
• The guillotine saw makes precise cuts within in each profile which avoids deformation of the original shape
• Protective metal shielding for operation safety

Pneumatic Discharge Table

• 6m long automated unloading pneumatic table

Specifications
