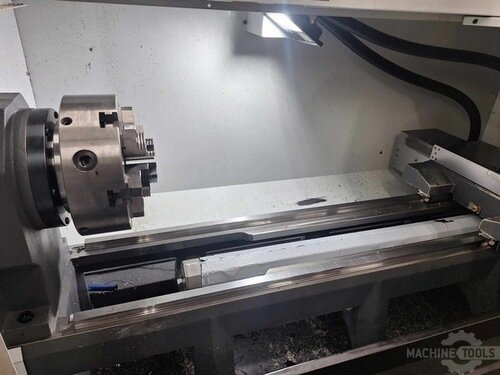

HAAS TL-2
HAAS TL-2
Description
Specifications
Specifications
| Chuck Size | 12″ |
| Bar Capacity | 3.5″ |
| # Axis | 2 |
| Power | 12 hp |
| Max RPM | 1,800 RPM |
| Turning Dia | 16″ |
| Swing | 20″ |
| Machining Length | 48″ |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Dimensions | 108.5 in x 68.5 in x 83.0 in |
| Weight | 5380 lbs |
| Control | CNC (HAAS) |
Equipped With
Equipped With
Equipped With
- Rigid Tapping
- VPS Editing
- Wireless Networking
- Tailstock
- Upgraded 12″ 6 jaw Chuck
- Electronic Handwheels
- 4 Station Turret
- Coolant Pump Kit
- A2-6 Big Bore Spindle,
Spec Sheet
Spec Sheet
Spec Sheet
- Bar Capacity: 3.5″
- Chuck Size: 12″
- Spindle Speed: 1800 RPM
- Spindle Motor: 10 HP
- Spindle Nose: A2-6
- X Axis Travel: 8″
- Z-Axis Travel: 48″
- Rapid Rate Z-Axis: 450 IPM
- Turret Tools: 4 Station
- Rapid Rate X-Axis: 450 IPM
- Max Turning Diameter: 16″
- Max Turning Length: 48″
- Max Swing: 16″
- Weight: 5900 lbs
