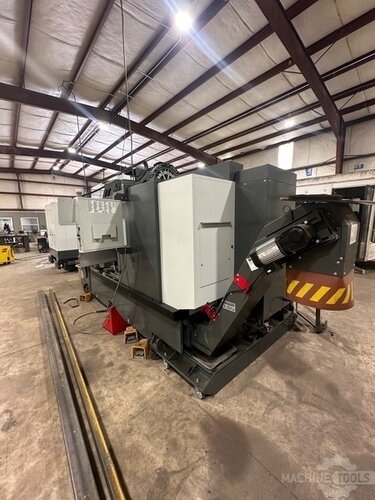

HAAS ST-35LY
HAAS ST-35LY
Description
Specifications
Specifications
SPECIFICATIONS
| Chuck Size | 12″ |
| Bar Capacity | 4″ |
| Power | 40 hp |
| Max RPM | 3,200 RPM |
| Turning Dia | 13.75″ |
| Swing | 21″ |
| Machining Length | 62.5″ |
| Tailstock | Yes |
| Live Tooling | Yes |
| Dimensions | 202.0 in x 90.0 in x 92.0 in |
| Weight | 13820 |
| Control | CNC (Haas) |
Equipped With
Equipped With
EQUIPPED WITH
- 4000 RPM Live Tooling w/12 Station BMT65 Turret & C-Axis
- Automatic Tool Presetter
- 55 Gallon Coolant Tank
- Belt-Type Chip Conveyor
- Chuck Air Blast
- Chip Tray Filter Kit
- High Pressure Coolant
- Visual Parts Programming System
- Internal High Voltage Isolated Transformer
- Auto Door for Lathes
- Programmable Hydraulic Tailstock
- 12″ Hydraulic A2-8 Chuck
- Steadyrest Provision
Spec Sheet
Spec Sheet
SPEC SHEET
- Spindle Bore: 4.62 in ø
- C Axis Speed: 60 rpm
- Maximum Rating: 5.0 hp (C-Axis)
- Positioning: 0.01 ° (C-Axis
- Brake Diameter: 13.9
- In Brake Holding Torque: 250 ft-lbf
- Number of Tools: 12 Stations
- Max Torque: 425.0 ft-lbf @ 325 rpm
- Air Required: 4 scfm @ 100 psi
- Inline Air Hose: 3/8 in
- Coupler (Air): 3/8 in
- Air Pressure Min: 80 psi
- Spindle Speed: 3200 rpm
- Spindle power: 40.0 hp
- Input AC Voltage (3 Phase): Low 220 VAC – High* 440 VAC
- Full Load Amps (3 Phase): Low 70 A – High* 35 A
- Rapids on X: 472 ipm
- Max Part Swing: 21.0″
- Max Cutting Diameter: 13.75 in (with BMT65 turret)
- Max Cutting Length: 62.5 in (varies with workholding)
- Bar Capacity: 4.00 in
- Between Centers: 62.5 in
- X-Axis Travel: 9.40 in
- Y-Axis Travel: ± 2.0 in
- Z-Axis Travel: 62.50 in
- Chuck Size: 12″
- Rapids on Y: 472 ipm
- Rapids on Z: 945 ipm
- Max Thrust X: 4100 lbf
- Max thrust Y: 2300 lbf
- Max Thrust Z: 5100 lbf
- Spindle Nose: A2-8
