DOOSAN PUMA MX2500ST
The Doosan Puma MX2500ST is a heavy-duty multitasking CNC turning center designed for precision and flexibility in demanding machining environments. Equipped with a Fanuc 18i-TB CNC control, this machine features full C-axis capability on both spindles, B-axis articulation, and a lower turret with live tooling for complex milling, drilling, and turning operations. With a large swing capacity, long Z-axis travel, and automated material handling options like an LNS quick load bar feeder and unloading conveyor, the MX2500ST delivers robust performance and productivity for a wide range of part sizes and machining applications.
DOOSAN PUMA MX2500ST
Specifications
Specifications
SPECIFICATIONS
| # Axis | 5 |
| Chuck Size | 10″ |
| Bar Capacity | 2.6″ |
| Power | 35 hp |
| Max RPM | 500 RPM |
| Turning Dia | 21.7″ |
| Swing | 23.6″ |
| Machining Length | 59.9″ |
| Tailstock | No |
| Dimensions | 180″ L X 91″ W X 100″ H |
| Weight | 28,200 Lbs |
| Control | CNC (Fanuc) |
Equipped With
Equipped With
EQUIPPED WITH
- Fanuc 18i-TB CNC Control
- B Axis Head
- Full C Axis Spindle Movement on Both Spindles
- Sub Turret with 12 Positions
- Live Milling/Drilling Capability Upper & Lower
- Y Axis Capability
- Subspindle

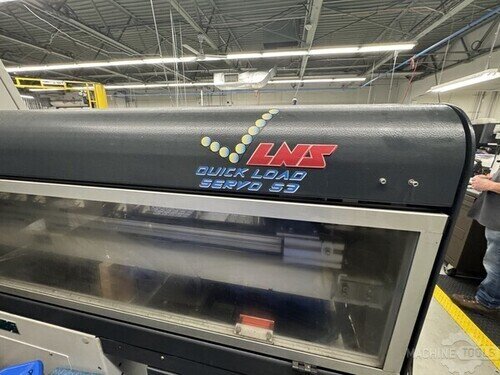

- LNS Quick Load Servo S3 Bar Feeder
- Chip Conveyor
- Automated Part Unloading Conveyor
- Automatic Tool Presetter
- Hand Held Manual Pulse Generator
Spec Sheet
Spec Sheet
SPEC SHEET
-
Swing Over Bed: 39.37″
-
Swing Over Cross Slide: 23.6″
-
Maximum Cutting Diameter: 21.7″
-
Maximum Machining Length: 59.9″
-
Maximum Bar Capacity Left / Right: 2.6″ / 2.95″
-
X-Axis Travel: 24.8″
-
Z-Axis Travel: 62.4″
-
Y-Axis Travel: 9.05″
-
C-Axis Spindle Movement (Both Spindles): 0.001 Degree
-
B-Axis Movement / B-Axis Increment: 240 Degrees (+/–120) / 5 Degrees
-
Spindle Nose / Spindle Bore: A2-8″ / 3.89″
-
Spindle Speed: 5,000 RPM
-
Spindle Motor: 35 HP
-
B-Axis Speed / Power: 10,000 RPM / 30 HP
-
Lower Turret Rotary Tool Speed: 4,000 RPM
-
Turret Type: 40-Station ATC – Capto-C6
-
Number Of Lower Turret Positions: 12
-
Rapid Traverse Rates X / Z: 787 IPM / 1,574 IPM
-
Machine Dimensions (L x W x H): 180″ x 91″ x 100″
-
Machine Weight: 28,200 Lbs
