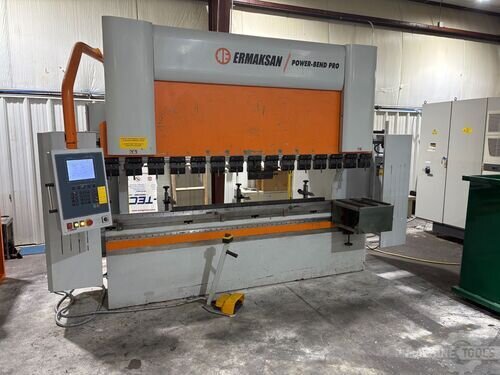

2019 ERMAKSAN POWER BEND SEATER
- Tonnage: 66 T
- OA Length: 4.16′
- Control: CNC (DELEM 58T 2D Graphical)
2019 ERMAKSAN POWER BEND SEATER
Specifications
Specifications
- Tonnage 66 US Tons
- Bending Length 50″
- Distance Between Housings 39.4 “
- Stroke: 10.8″
- Daylight (Open Height): 20.9″
- Throat Depth 16.1″
- Table Height 35.4”
- Table Width 3.54″
- Approach Speed 472.2 IPM
- Bending Speed 33 IPM
- Return Speed 390 IPM
- Back Gauge Travel (X Axis) 31.5″
- Back Gauge Travel (R Axis, Optional) 9.8″
- Main Motor 10.1 HP
- Oil Capacity: 39.6 US Gallons
- Machine Length: 88.6″
- Machine Width: 77.2″H
- Machine Height: 108.3″
- Weight: 9,200 lbs
