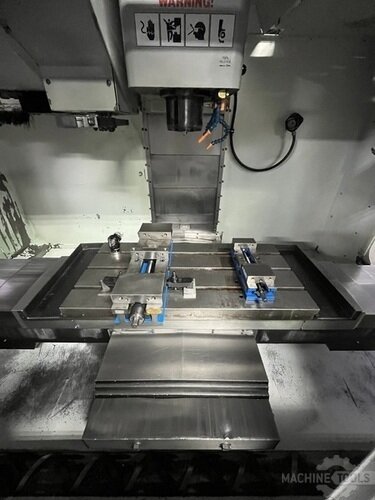

HAAS VF-2 – Vertical Machining Center
HAAS VF-2 – Vertical Machining Center
Description
Specifications
Specifications
| X | 30″ |
| Y | 16″ |
| Z | 20″ |
| Power | 30 hp |
| RPM | 8,100 RPM |
| # ATC | 24 |
| Table-W | 14″ |
| Table-L | 36″ |
| Taper | CT 40 |
| # Axis | 3 |
| Control | CNC (HAAS) |
Equipped With
Equipped With
Equipped With
- Chip Auger
- Coolant Tank
- Probing
- Royal Filter Mist Collector
Spec Sheet
Spec Sheet
Spec Sheet
- X Axis Travel: 30″
- Y Axis Travel: 16″
- Z Axis Travel: 20″
- Rapid Rate X Axis: 1,000 IPM
- Rapid Rate Y Axis: 1,000 IPM
- Rapid Rate Z Axis: 1,000 IPM
- Table Size: 36″ x 14″
- Max Table Load: 3,000 LBS
- Spindle Motor: 20 HP
- Spindle Speed: 8,100 RPM
- Spindle Taper: 40 CT
- Tool Changer: 21 ATC
- Max Torque 90 ft-lbf
- Max Thrust X 2550 lbf
- Max Thrust Y 2550 lbf
- Max Thrust Z 4200 lbf
- Max Tool Diameter 3.5″
- Max Tool Weight 12 lb
- Tool-to-Tool (avg) 4.2 s
- Chip-to-Chip (avg) 4.5 s
- Dimensions: 101″ x 99″ x 101″
- Weight: 7,800 LBS
