STEFA VH620

Description

Specifications

SPECIFICATIONS

Equipped With

EQUIPPED WITH

• Elite Bender Package
• 2D Graphical Software with 21″ Touch Screen
• Servo Backgauge System
• Automatic Radius and Thickness Adjustment
• Differential Clamp Pressure Sensor
• Safety Laser System
• Conical Backgauge
• Extra Backgauge Fingers

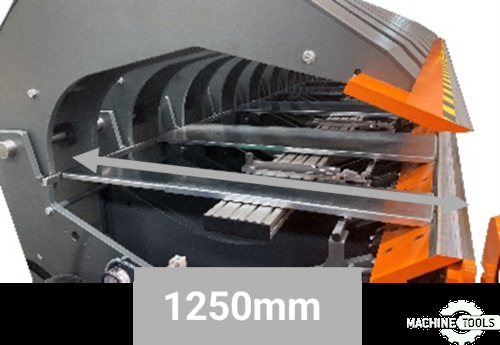

• Extended Backgauge (Up to 1250 mm)
• Retractable Trays
• Remote Access for Assistance

Spec Sheet

SPEC SHEET

• Max Thickness Admissible: 2 mm St40 / 2.6 mm Aluminum / 1.25 mm Stainless Steel
• Working Length: 6030 mm
• Number of Arms: 10
• Max Cut Capacity: Specified for St40
• Backgauge Range (Max–Min): 1110 mm ↔ 5 mm
• Standard Backgauge Tolerance: -1.0 / +0.2 mm
• Servomotor Backgauge Tolerance: -1.0 / +0.2 mm / -0.01 / +0.02 mm
• Number of Backstops: 6
• Standard Backgauge Speed: ~70 mm/s
• Servomotor Backgauge Speed: 250 mm/s
• Opening Height Clamping Beam: 260 mm
• Max Rotation of Bending Beam: Approx. 145°
• Bending Tolerance: ±1°
• Hydraulic Power: 11 kW
• Weight: 7.5 ton
• Colors: RAL2008 / RAL7043 (Light Orange, Dark Grey)
