STEFA VH315
Description
Specifications
Specifications
SPECIFICATIONS
Max Thickness | 0.0591″ |
Max Thickness (gauge) | 16 gauge |
Overall Length | 10.5′ |
Control | CNC (Alligator) |
Equipped With
Equipped With
EQUIPPED WITH

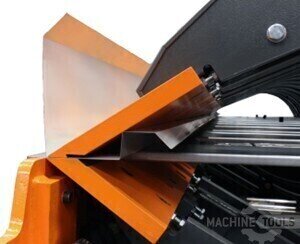

- New from Stefa the VH315 (10.5′ x 16g)
- Hybrid (Hydra-electric) CNC folder with built in slitter
- Includes on-site up and training
Spec Sheet
Spec Sheet
SPEC SHEET
- Model VH315
- Max. thickness admissible 1.5 mm steel – 2 mm Alu – .9 mm stainless
- Working length 3200 mm
- No. Arms 4
- Max. cut capacity (slitter) 3 mm mild steel
- Backgauge range (max – min) 1110mm <-> 5mm
- Standard backgauge tolerance -0,1 / +0,2 mm
- Servomotor backgauge tolerance -0,01 / + 0,02 mm
- No. backstops 3
- Standard backgauge speed ~70mm/s
- Servomotor backgauge speed 250mm/s
- Opening height clamping beam 260mm
- Max. rotation of bending beam 145º
- Bending tolerance +/- 1º
- Hydraulic power 3 kW
- Weight 8,512 lbs
- Colors RAL2008 / RAL7043 (Light orange, dark grey)
