STEFA ROLL FORMER LINE

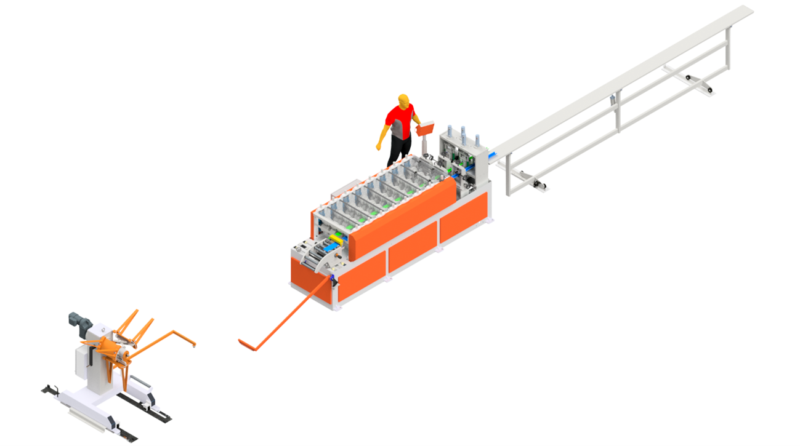

Stefa roll forming line designed to cold form 4 different roofing profiles. The system includes fixed shears with shaped profile blades, a 6 m discharge table to support material, and a touch screen command to control and program all machine functions. Protective barriers surround the roll former line for operator safety. The system is engineered for efficient, repeatable production in sheet metal environments.
STEFA ROLL FORMER LINE
Description
Description
Stefa roll forming line designed to cold form 4 different roofing profiles. The system includes fixed shears with shaped profile blades, a 6 m discharge table to support material, and a touch screen command to control and program all machine functions. Protective barriers surround the roll former line for operator safety. The system is engineered for efficient, repeatable production in sheet metal environments.
Specifications
Specifications
SPECIFICATIONS
- Material Type: Pre-Painted Galvanized Steel Sheet
- Tensile Strength: 220 ~ 350 MPa
- Material Thickness: 0.3 mm – 0.5 mm
- Number Of Profiles: 4
- Speed Of Roll Forming: 20 m/min

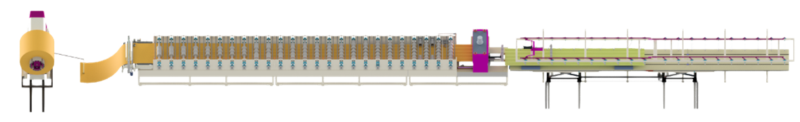

- Estimated Line Dimensions: 30 m x 4 m
- Total Power Estimated: 25 kW
- Power Supply: 3 phases 480 VAC
- Control Voltage: 24 VDC
- Estimated Stations: 14
- Shaft Diameter: Ø 85 mm
- Minimum Length: 100 mm
- Cutting Tolerance: +/- 0.5 mm on 6000 mm
- Colors: RAL9002 (White) / RAL2008 (Orange)
Equipped With
Equipped With
EQUIPPED WITH

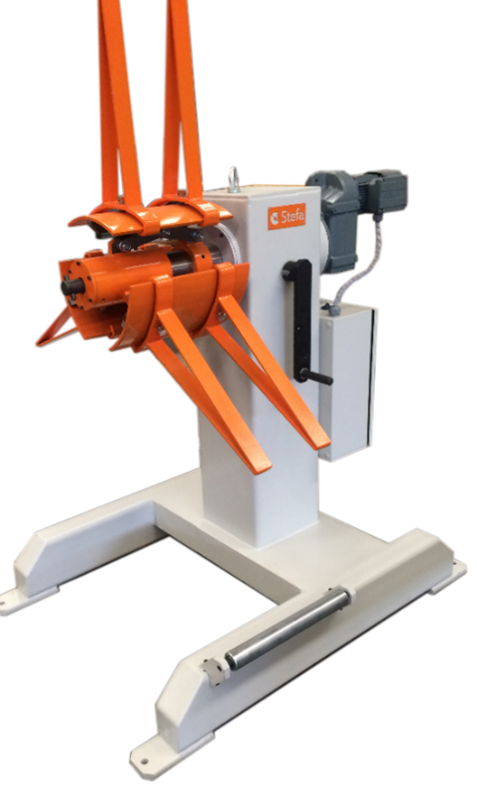

- Decoiler DM1.5-300

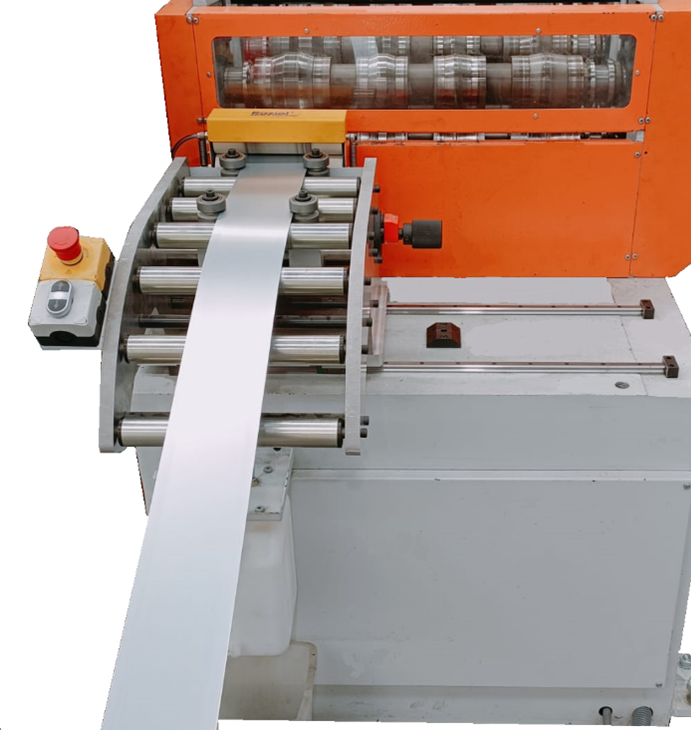

- Entry Guide with Adjustable Side Guides
- Roll Former Unit with 4 Profile Lines
- Roll Former Stations and Spacers

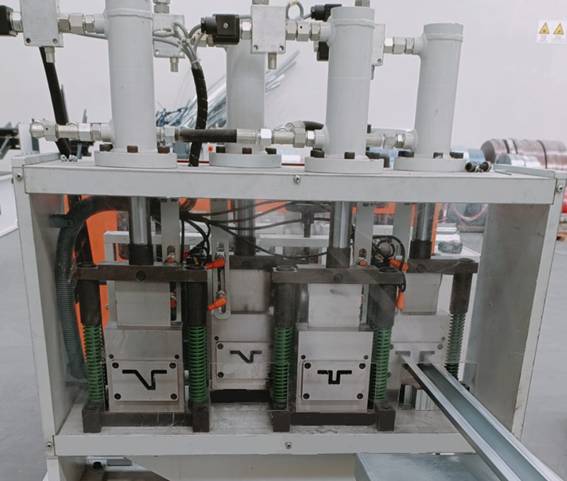

- Hydraulic Shear with Profiled Blades

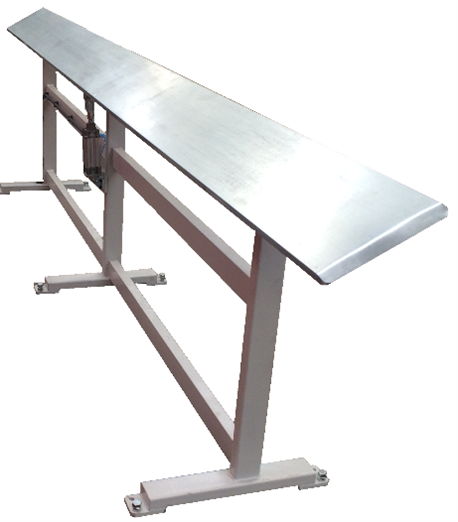

- 6 m Discharge Table with Pneumatic Unloading

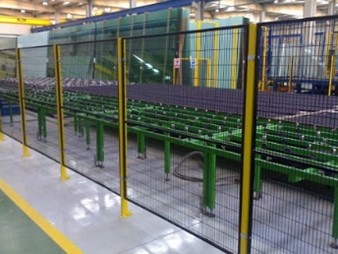

- Safety Perimeter with Mesh Panels
- Safety Curtain Lights on Entry and Exit
- Touch Screen Control Interface (9”)
- Siemens PLC (S7-1200 or S7-1500)
- Siemens Inverters (G120)
- Siemens HMI (TP900)
- IFM Sensors and Pizzato Limit Switches
- SEW Eurodrive Main Gearmotors
- Bonfiglioli Auxiliary Gearmotors
- Industrial Router for Remote Support
Key Features
Key Features
KEY FEATURES
- Roll Forming Line for 4 Different Roofing Profiles
- Single Gearmotor Drive with Chain Transmission
- Encoder Positioning System for Automatic Production

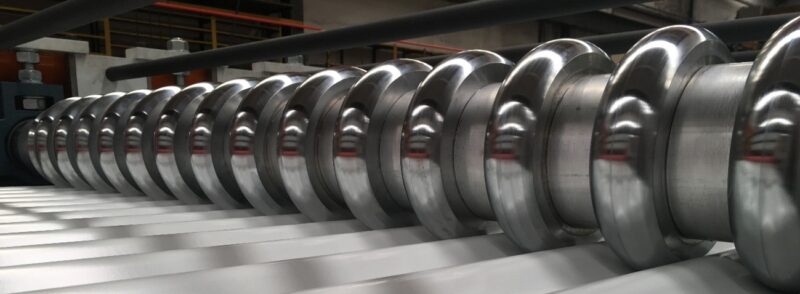

- Chrome-Treated Rollers for Surface Finish and Durability
- Adjustable Entry Guide with Position Indicators
- Hydraulic Shears with Profile-Specific Blades
- Automatic Loop Control with Contactless Sensor
- Lateral Positioning of Decoiler and Discharge Table
- Programmable Production with up to 99 Stored Jobs
- Integrated Safety System with Guards and Light Curtains
- Remote Support Capability via Industrial Router
