Press Brakes

RYTECH FUSION HYBRID B32.135

Brand – RYTECH
Model – FUSION HYBRID B32.135
Type – Press Brakes
New – Build-to-Order

Get a Quote

Categories: , Tags: ,

Videos RYTECH FUSION HYBRID B32.135

RYTECH FUSION HYBRID B32.135

Description

Description

The RYTECH FUSION from Mac-Tech combines innovative modular design with proven industry experience. With over 41 years of expertise and more than 12,000 installed machines, the system offers flexible automation options and customizable solutions from basic to high-end configurations. Built with tier-1 globally supported components and standardized suppliers, the machine ensures long-term reliability, readily available spare parts, and consistent performance. Backed by a 3-year warranty and supported by Mac-Tech’s 10-man field service team and parts inventory in Milwaukee, WI, the RYTECH FUSION delivers precision bending, dependable service, and long-term value.

Specifications

Specifications

SPECIFICATIONS

Tonnage 151 T
Type HYD
Overall Length 126″
Between Housings 106″
Stroke 11.8″
# Axis 7
Weight 20,062
Control CNC (Delem 66S)

Equipped With

Equipped With

EQUIPPED WITH

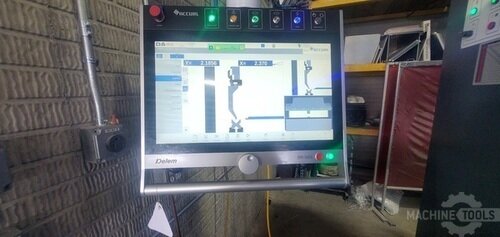

  • Delem DA-66S 2D/3D CNC Control, 24″ Touch Screen (DA-69S Optional)

  • Profile S “Lite” Offline Software Included (Profile S-3D Included with DA-69S)

  • 7-Axis Configuration: Y1, Y2, X, R, Z1, Z2, X-Prime (8-Axis Optional)

  • CNC Motorized Crowning System

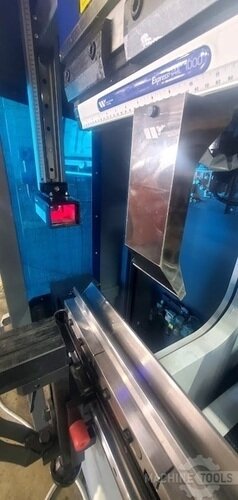

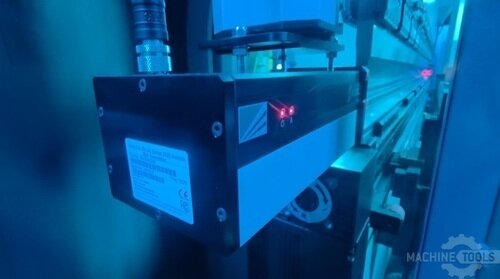

  • LazerSafe IRIS Integrated Ram-Mounted Safety System

  • Precision Tooling Package (Clamps, Punch, 4-Way Die, Riser)

  • Barcode Scanner

  • Automatic Motorized Lubrication System

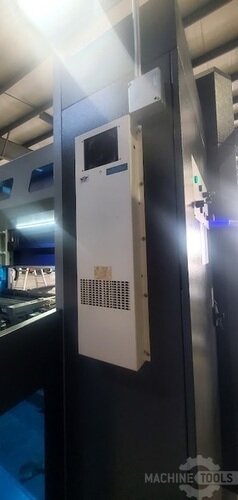

  • A/C Electrical Cabinet

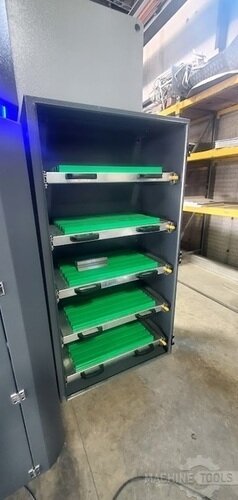

  • Tool Storage Cabinet

  • On-Site Commissioning & Operator Training

  • 3-Year Parts Warranty / 1-Year Labor Warranty

Spec Sheet

Spec Sheet

SPEC SHEET

  • Model: Rytech Fusion B32.135 (150 Ton x 126″ CNC Press Brake)

  • CNC Control: Delem DA60 Series CNC System

  • Control Axes: Y1, Y2, X, R, Z1, Z2 with CNC Crowning

Capacity and Performance

  • Bending Force: 150 Tons

  • Bending Length: 126″

  • Distance Between Columns: 106.2″

  • Throat Depth: 17.7″

  • Beam Stroke: 11.8″

  • Open Height (Daylight): 22.8″

  • Positioning Accuracy: ±0.00019″

Working Speeds (ePrAX Hybrid Servo System)

  • Rapid Speed: 519.7 IPM

  • Working Speed: 35.4 IPM

  • Return Speed: 472 IPM

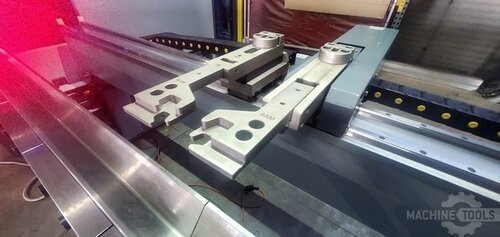

Back Gauge

  • X-Axis Travel: 31.5″

  • R-Axis Travel: 9.8″

  • Z1 / Z2 Axis Travel: 100.4″

Machine Details

  • Table Width: 3.54″

  • Working Table Height: 37.4″

  • Hydraulic Pressure: 275 Bar

  • Hybrid Servo Motor: 2 x 5.7 kW

  • Ambient Temperature Range: 0° to 40°C

  • Power Supply: AC 220–480V, 3 Phase, 50/60 Hz

Dimensions and Weight

  • Overall Dimensions: 202.8″ x 78.7″ x 120.1″ (approx.)

  • Machine Weight: 25,960 kg (≈57,230 lbs)

Standard Components

  • ePrAX Hybrid Servo Drive System

  • Lazersafe PCSS A1 + IRIS Block Type 4 Safety System

  • Siemens / Schneider Electrical Components

  • Hoerbiger Hydraulic System and Hybrid Connection Block

  • Heidenhain / GIVI Precision Linear Scales

  • HIWIN Ball Screws and Linear Guides

  • Delta Servo Motor and Drive System for Back Gauge

  • Siemens Foot Switch

  • Manual Tool Clamps with 85° Punch, 4-Way Die, and Riser Block
