Press Brakes

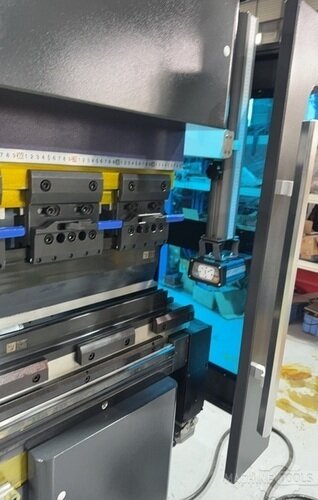

RYTECH FORCE-1 HE 2204

Brand – RYTECH
Model – FORCE-1 HE 2204
Type – Press Brakes
Condition – New Build-to-Order

Get a Quote

Categories: , Tags: ,

RYTECH FORCE-1 HE 2204

Description

Description

The RyTech Force-1 from Mac-Tech offers an innovative modular design that can be combined with automation modules for a complete workflow solution. Backed by 42 years of experience and over 12,000 installed machines, it delivers reliable, high-quality performance. With a comprehensive range of tools, customizable solutions, and tier-1 components, it ensures precision, durability, and standardized support. Mac-Tech provides a 1-year warranty and full after-sales service, including spare parts inventory in Milwaukee, WI, making the Force-1 a smart, dependable choice for modern production needs.

Specifications

Specifications

SPECIFICATIONS

Tonnage 242 T
Type HYD
Overall Length 161″
Between Housings 140″
Stroke 0.4252″
# Axis 8
Dimensions 197″ x 75″ x 116.5″ H
Weight 33,000
Control CNC (Delem DA 66S / 69S Option)

Equipped With

Equipped With

EQUIPPED WITH

  • Machine: RYTECH FORCE-1 HE220-4

  • Tonnage / Bed Length: 242 Ton × 13.1′ Press Brake

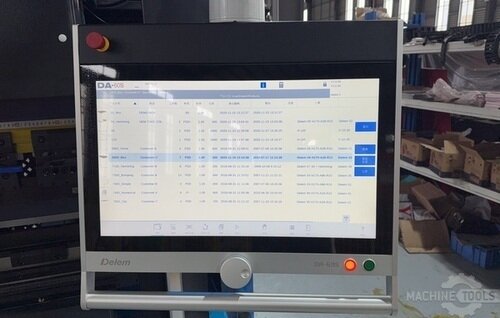

  • CNC Control: Delem DA-66S 2D/3D

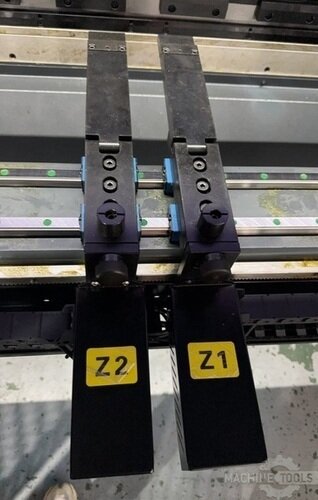

  • Machine Axis: 6-Axis + Crowning (Y1, Y2, X, R, Z1, Z2)

  • Crowning: Wedge-Type Ultra CNC Crowning

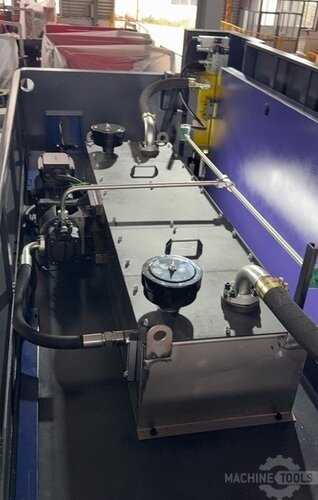

  • RYTECH Hybrid Servo Drive System (SERVO Motor Pump)

    • 35% energy consumption savings

    • Near-silent operation

    • Reduced maintenance and waste

    • Extreme precision (+/-.00019″) & repeatability

  • Advanced Press Control and Safety System

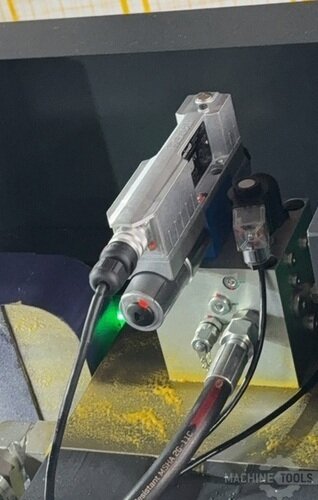

    • DSP Laser, Ram-Mounted Safety

  • Standard Precision Tooling Set

    • European QUICK Clamps

    • European 85° Punch

    • 85° 4-Way Die

    • Riser Block

  • Two (2) Adjustable Sheet Supports on Linear Rail

  • Wooden Crate Packaging for Ocean Transport

  • FOB: US Port, DDP

  • On-Site Start-Up & Operator Training

  • One (1) Year (or 2,080 Hours) Labor Warranty

Spec Sheet

Spec Sheet

SPEC SHEET

Technical Specifications

  • Machine Model: HE220-4

  • Bending Force: 220 Ton

  • Table Length: 4100 mm

  • Throat Depth: 400 mm

  • Slider Stroke: 250 mm

  • Maximum Opening Height: 470 mm

  • Working Speed: 10 mm/sec

Axis & Performance:

  • Standard Axis Configuration

  • X-Axis Positioning Accuracy: ±0.05 mm

  • X-Axis Speed: 400 mm/sec

  • Main Motor Power: 22 kW

Machine Dimensions:

  • Length (L): 5000 mm

  • Width (W): 1900 mm

  • Height (H): 2960 mm

  • Weight: 15 Ton
