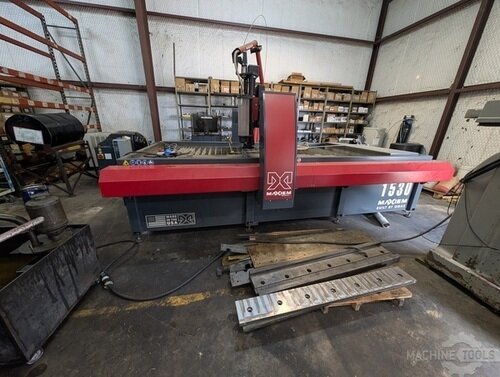

OMAX MAXIEM 1530
OMAX MAXIEM 1530
Description
Description
Specifications
Specifications
Specifications

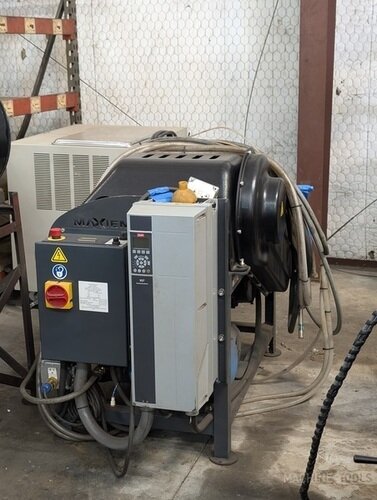

| Pump Output | 50,000 PSI |
| X | 10′ |
| Y | 5′ |
| Z | 12″ |
| Table Size-W | 68″ |
| Table Size-L | 146″ |
| Power | 30 hp |
| Dimensions | 14′ x 10′ x 10′ 6″ hgt (w/ whip plumbing) |
| Weight | 7,000 lbs |
Equipped With
Equipped With
Equipped With

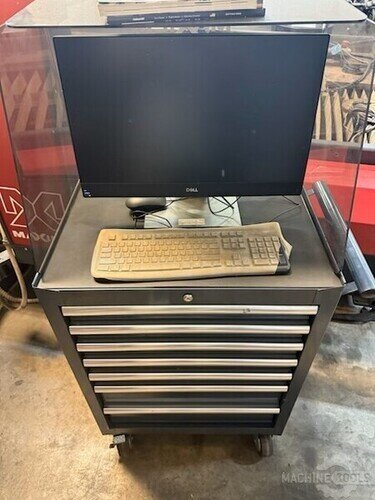

All-in-one controller computer with large 23″ screen, IntelliMAX Standard Software, IntelliTRAX traction drive inside the X-Y Axis beams fully enclosed inside coated steel covers, Programmable motorized Z-Axis , OMAX MAXJET 5i nozzle, 600lbs Abrasive Bulk Tank, A-Jet Cutting Head, MaxJet 5I Fusable MT Diamond Nozzle, Tool Chest, Waterproof Keyboard with Mouse and Pad, Abrasive Hopper, Water Level Control, Swivel Plumbing
Spec Sheet
Spec Sheet
Spec Sheet
- Material Supports Slats, 4″ x 14Ga Galvanized Steel (102 mm x 2 mm)
- Maximum Supported Material Load 300 lbs/sq ft (1,465 kg/sq meter)
- Electrical Requirements: 3-Phase, 380-480 VAC ±10%, 50-60 Hz
- Noise Level: Below 80 dBA at one meter for submerged cutting
- Speed: 500 in/min (12.70 m/min)
- Linear Positional Accuracy*: ±0.003″ (±0.076 mm)
- Repeatability*: ±0.001″ (±0.025 mm)
