OCEAN AVENGER

Description

Equipped With

EQUIPPED WITH

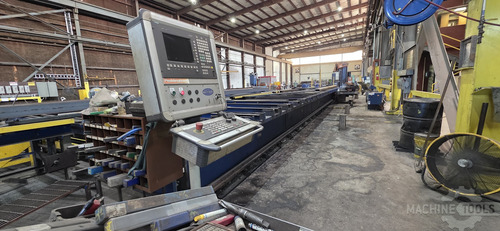

• CNC Single-Spindle Beam Drilling System
• Automated Layout & Hole Drilling
• Weld Attachment Marking System
• Multi-Profile Material Processing Capability
• Compact, Space-Saving Machine Design

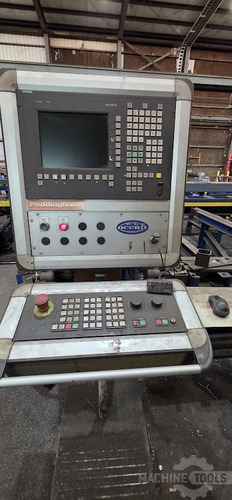

• CNC Control System
• Structural & Miscellaneous Steel Processing Capability
• Beam, Channel, Angle, Plate, RHS, Square & Round Profile Processing

Spec Sheet

SPEC SHEET

Capacity:

• Maximum Beam Size: 40″ x 60′ (Avenger FORTY)
• Maximum Beam Size: 30″ x 60′ (Avenger THIRTY)
• Maximum Profile Weight: 730 lbs/ft (1,088 kg/m)
• Maximum Material Thickness: 10″ (250 mm)

Drilling Capacity:

• Minimum Drill Diameter: 1/4″ (6.5 mm)
• Maximum Drill Diameter: 1-9/16″ (40 mm)
• Drilling Speed: 0–545 RPM (Continuously Variable)
• Drilling Feed Rate: 2″–10″/min (50–254 mm/min)
• Maximum Spindle Stroke: 13″ (330 mm)

Performance:

• Maximum X-Axis Speed: 120 FPM
• Maximum Y-Axis Speed: 120 FPM
• Average Output: 200–400 Holes per Hour

Power & Electrical:

• Spindle Motor: 13-3/4 HP
• Total Power: 20 HP (14.9 kW)
• Power Supply: 208–575V, 3-Phase, 60 Hz (50 Hz Available)

Manufacturer:

• Peddinghaus Corporation, USA
