AMTEK APC1200
AMTEK APC1200
Description
Description
Equipped With
Equipped With
EQUIPPED WITH

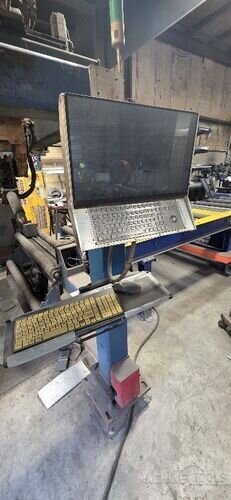

- AMTEK APC1200 PC Control & Software

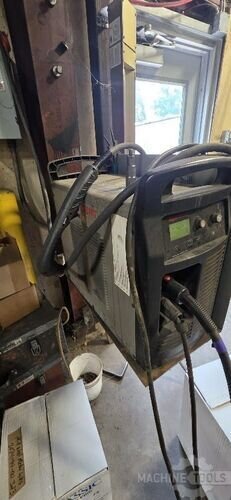

- Hypertherm Powermax 125 Plasma System
- Koike Oxy-Fuel Cutting Torch

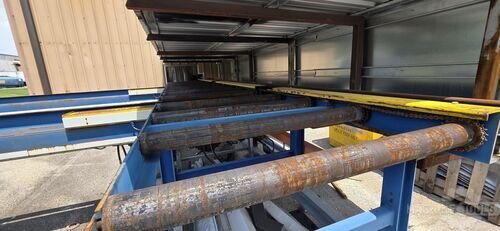

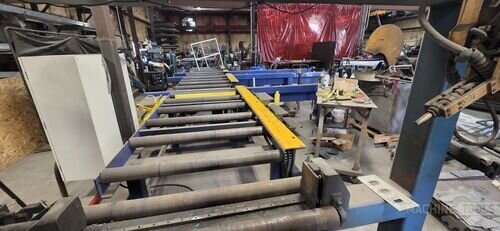

- 30′ In-Feed with (2) Lift & Carry Transfers
- 30′ Out-Feed with (2) Lift & Carry Transfers
- Hydraulic Material Clamps
- Hydraulic Lift Rollers
- Windows 10 CNC Control
- DSTV File Import
- Manual Programming Capability
- Wi-Fi & RJ45 Network Connectivity
- 5-Axis CNC Motion System
- Wired Remote Control
- Automatic Material Probing System
Spec Sheet
Spec Sheet
SPEC SHEET
Capacity:
- Maximum Profile Capacity: 42″ x 22″
- Maximum Oxy-Fuel Thickness: 6″
- Maximum Plasma Thickness: 0.75″
- Maximum Plasma Piercing: 1″ Mild Steel
- Plasma Bevel Capacity: 5/8″ @ 45°
Working Envelope:
- Maximum Depth: 42″ (1066 mm)
- Maximum Height: 22″ (558 mm)
Axes:
- X-Axis Travel: 38″
- Y-Axis Travel: 72″
- Z-Axis Travel: 24″
- W-Axis Rotation: 360°
- V-Axis Tilt: -90° to +60°
Hydraulic Clamping System:
- Maximum Clamping Depth: 47″ (1066 mm)
- Maximum Clamping Force: 1000 PSI
- Manual & Automatic Operation
Hydraulic Lift Rollers:
- Maximum Lift Depth: 47″ (1066 mm)
- Maximum Lift Force: 1000 PSI
- Manual & Automatic Operation
Controller:
- Operating System: Windows 10
- DSTV Import: Included
- Manual Programming: Included
- Network Connectivity: Wi-Fi & RJ45
Torch System:
- Oxy-Fuel Torch: Koike, 2.5″
- Fuel Gas: Propane, Propylene, or Acetylene
- Cutting Oxygen: Gas or Liquid Oxygen
- Plasma System: Hypertherm Powermax 125 Mini Machine Torch
- Plasma Cutting Speed: Up to 5× Faster Than Oxy-Fuel
Material Handling:
- In-Feed: 30′ with (2) Lift & Carry Transfers
- Out-Feed: 30′ with (2) Lift & Carry Transfers
