MITSUBISHI ML-3015 EX PLUS CO2 – 2017

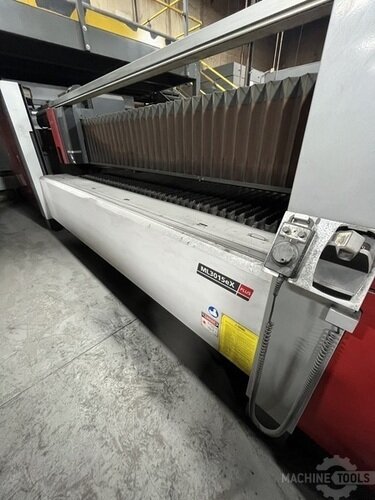

2017 Mitsubishi ML3015eX Plus with ML45CF-R 4.5kW Resonator
MITSUBISHI ML-3015 EX PLUS CO2 – 2017
Description
Specifications
Specifications
| heet-W | 60″ |
| Sheet-L | 120″ |
| Wattage | 4500 w |
| IPM | 5550 ipm |
| X | 122″ |
| Y | 61″ |
| Z | 5.9″ |
| Dimensions | 418.5″ L x 90.6″ H x 183″ W |
| Weight | 26,325 lbs. |
| Control | CNC (Mitsubishi M700) |
Equipped With
Equipped With
Equipped With
- Mitsubishi ML45CF-R 4.5 kW Resonator
- Thermalcare Accuchiller
- Donaldson Dust Collector
Spec Sheet
Spec Sheet
Spec Sheet
- Wattage: 4500
- Table Size: 5′ x 10′
- X-axis stroke: 122″
- Y-axis stroke: 61″
- Z-axis stroke: 5.9″
- Maximum Work Piece Size: 120.08″ x 60.04″
- Maximum Processing Feed Rate: 1180 IPM
- Maximum Workpiece Weight: 2050 lbs.
- Table Pass Height: 33.5″
- Rapid travel speeds:
- Single Axis: 3345 IPM
- Simultaneous: 4730 IPM
- Minimum command input: 0.001mm/.0001″
- Drive motor type: intelligent AC servo
- Machine Unit Dimensions: 418.5″ L x 90.6″ H x 183″ W
- Total System Weight: 26,325 lbs.
