Hydmech S-20
The original, horizontal pivot band saw is designed to give you the best cost per cut on the market.
The S-20 manual horizontal pivot band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.
Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20 is a versatile machine ideal for use in tight working spaces.
Videos Hydmech S-20
Hydmech S-20
Description
Description
The original, horizontal pivot band saw is designed to give you the best cost per cut on the market.
Specifications
Specifications
| Capacity | Rectangular (h x w) | Round |
| 90° | 13″ x 18″ | 13″ |
| 45° | 13″ x 10 3/4″ | 12″ |
| 30° | 13″ x 7 3/4″ | 8 1/2″ |
| Blade Size | 1” x 14’ 10” | |
| Blade Drive | 3 HP VFD | |
| Machine Voltage | 480 v (all other voltages require optional transformer) | |
| Blade Speed | 45-330 SFM | |
| Coolant Tank Capacity | 6 Gallons | |
| Work Load | 5,000 lbs. | |
| Machine Weight | 2,200 lbs. | |
| Table Height | 31” | |
| Dimensions (w x l x h) | 92” x 75” x 52” | |
Standard Features
Standard Features
STANDARD FEATURES
- Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction
- 3 HP true direct blade drive – no belts/pulleys
- 36” material in-feed roller table and 19” out feed table
- Heavy duty, quick adjusting, sliding material vise jaw
- Mechanical band tensioning with digital readout
- Cast iron band wheels
- Swing away operator control panel
- Replaceable blade brush
- Robust steel base
- Easy to read angle scale with an angle locking mechanism
- Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail
- Gravity fed sawing head with infinite down feed adjustment
- Pre-set, replaceable carbide guide inserts
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light

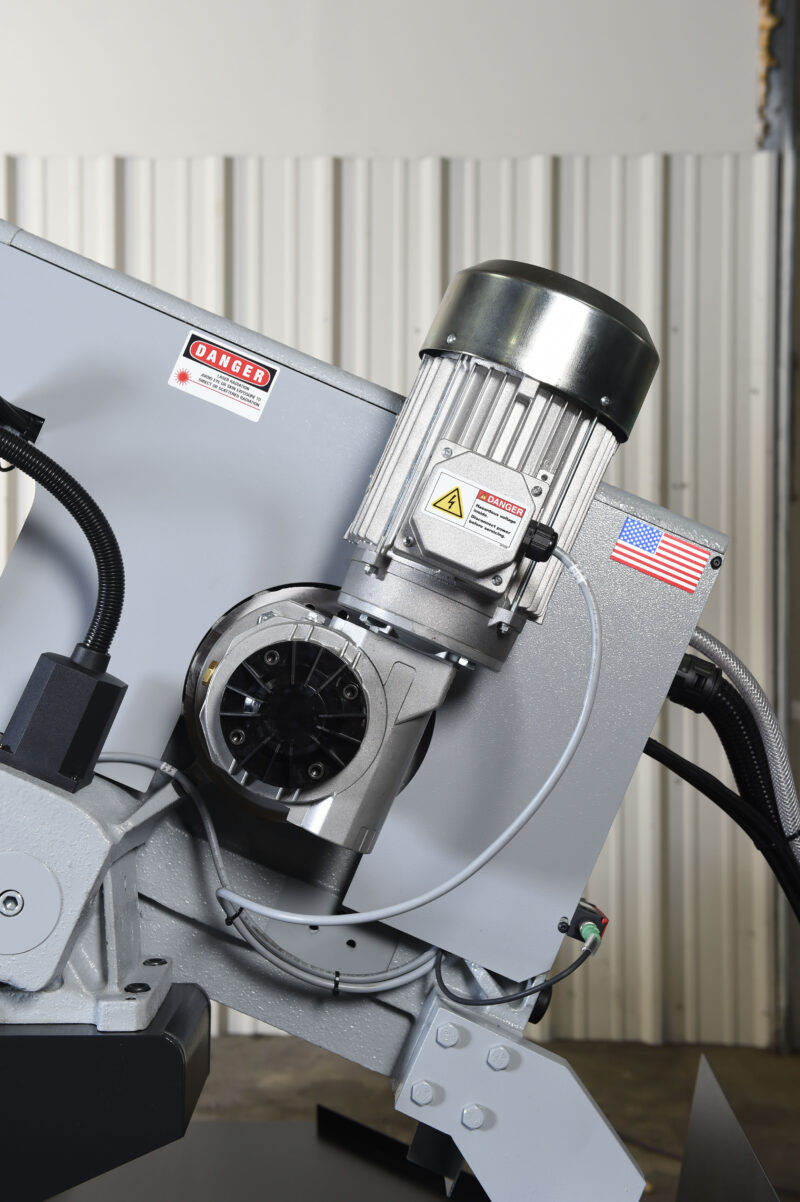

Inverter Band Drive Control
With the inclusion of an Inverter Drive, the band speed of the machine can be controlled form the operator’s control panel eliminating the need for the operator to walk around the saw to manipulate a pulley drive system.

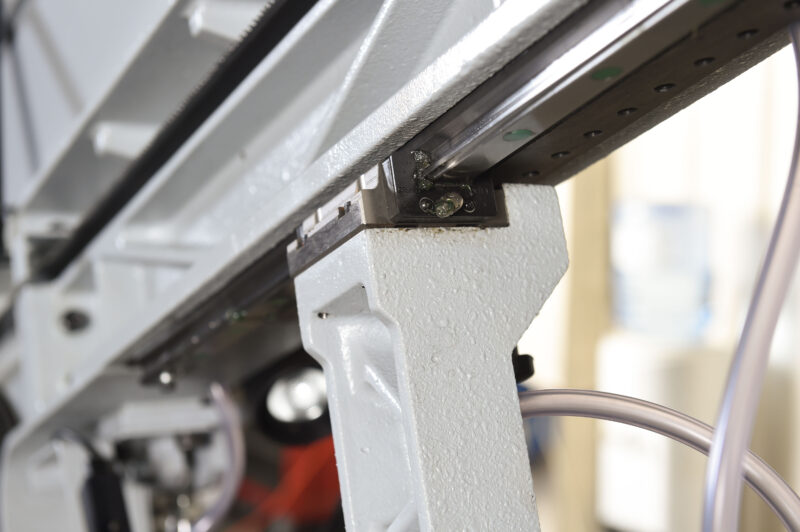

Movable Saw Guide Arm
Riding on linear bearings, the left movable saw guide arm can easily be positioned and locked into place when adjusting to the workpiece.

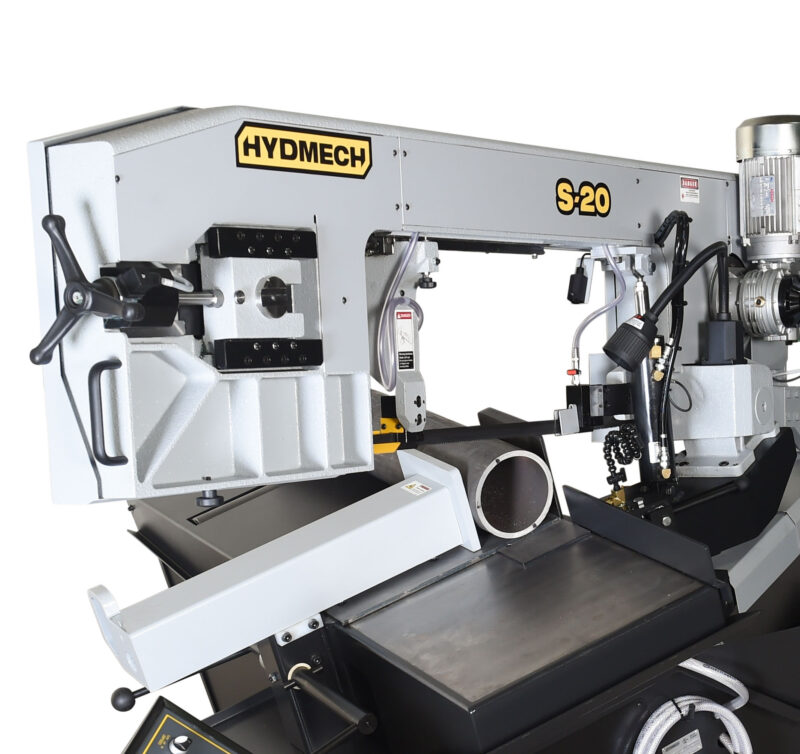

Cast Iron Saw Head
Heavy, cast iron head helps absorb vibrations when cutting structural material helping reduce cutting noise, increasing band life and providing better quality cuts.

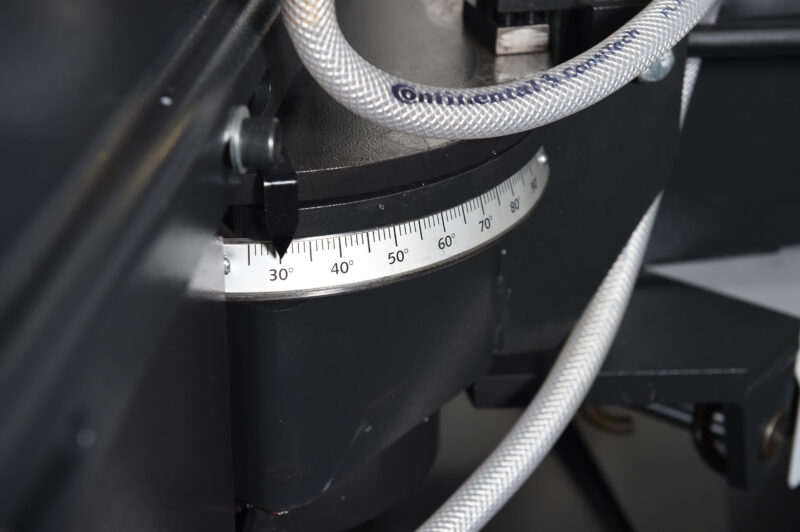

Pivoting Saw Head
The saw head can be swung a full 60 degrees simplifying the process of cutting angles when needed.
Optional Features
Optional Features
OPTIONAL FEATURES
- Mist lubrication (shop air required)
- Work stop – 34″
- Single phase – 220 v
- Right hand side control panel – rigid mount
- Idler conveyors
- Power transformer
