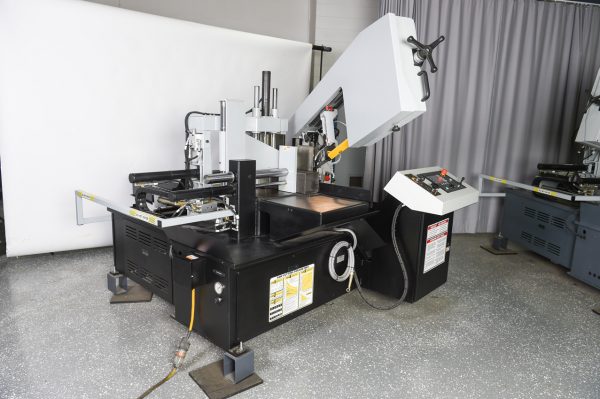

Hydmech S-20A
Automatic, horizontal pivot band saw designed to give you the best cost per cut on the market.
The S-20A, automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.
Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20A is a versatile, automatic scissor style band saw ideal for use in tight working spaces.
Videos Hydmech S-20A
Hydmech S-20A
Description
Description
Automatic, horizontal pivot band saw designed to give you the best cost per cut on the market.
Specifications
Specifications
| Capacity | Rectangular (h x w) | Round |
| 90° | 13″ x 18″ | 13″ |
| 45° | 13″ x 10 3/4″ | 12″ |
| 30° | 13″ x 7 3/4″ | 8 1/2″ |
| Blade Size | 1” x 14’ 10” | |
| Blade Drive | 5 HP VFD | |
| Machine Voltage | 480 v (all other voltages require optional transformer) | |
| Blade Speed | 75-330 SFM | |
| Coolant Tank Capacity | 12 Gallons | |
| Work Load | 5,000 lbs. | |
| Machine Weight | 3,800 lbs. | |
| Table Height | 31” | |
| Dimensions (w x l x h) | 93” x 86” x 52” | |
Standard Features
Standard Features
STANDARD FEATURES
Automatic, horizontal pivot band saw designed to give you the best cost per cut on the market. The S-20A, automatic scissor style band sawfeatures a swing head design and provides exceptional miter cutting capability for light to medium duty applications. Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20A is a versatile, automatic scissor style band sawideal for use in tight working spaces.
- Easy swing, heavy duty cast iron saw head
- Cast iron shuttle features automatic multi-indexing up to 27” in a single stroke. Powered by ball screw and stepper motor
- 5 HP VFD. True direct blade drive – no belts/pulleys
- On-demand hydraulics save energy
- Blade chamber separates material from cut part
- Cast iron band wheels
- Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue
- Replaceable blade brush
- Robust steel base
- Easy to read angle scale with angle locking mechanism
- Cast iron guide arms mounted on linear rails is adjustable for proper spacing
- Easy access electrical panel
- Out of stock switch
- Mechanical band tensioning with digital readout
- Hydraulic positive down feed
- Replaceable carbide guide inserts
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
- Variable vise pressure

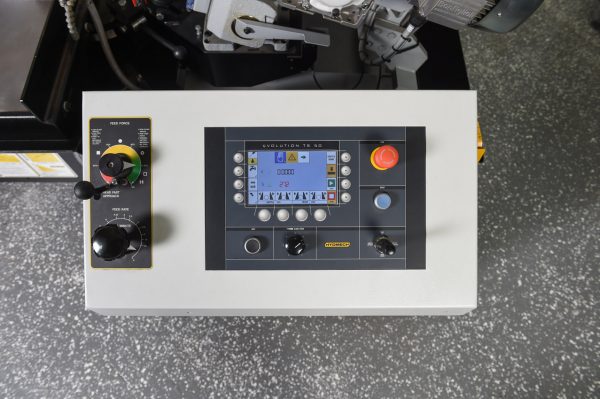

Automatic Control
Automatic mode provides for powered saw functions along with automatic clamping and indexing of material. Program the number of pieces needed and the saw will automatically index and cut required pieces.

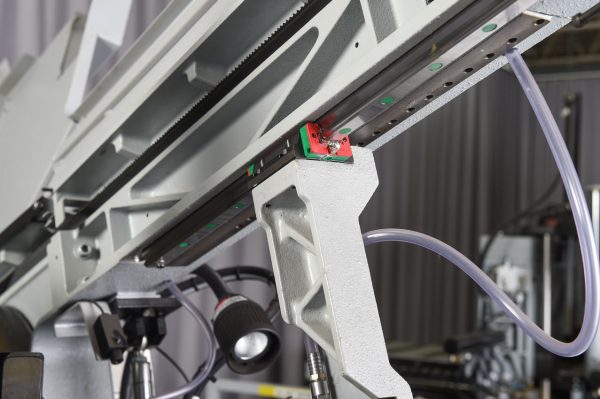

Movable Saw Guide Arm
Riding on linear bearings, the left movable saw guide arm can easily be positioned and locked into place when adjusting to the workpiece.

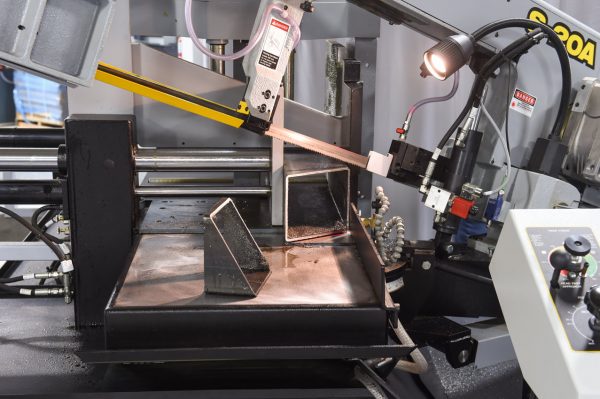

Cast Iron Saw Head
Heavy, cast iron head helps absorb vibrations when cutting structural material helping reduce cutting noise, increasing band life and providing better quality cuts.
Pivoting Saw Head
The saw head can be swung a full 60 degrees simplifying the process of cutting angles when needed.
Optional Features
Optional Features
OPTIONAL FEATURES
- Full capacity hydraulic overhead bundling
- Mist lubrication
- Remote console
- Idler conveyors and accessories
- Powered conveyors and accessories
