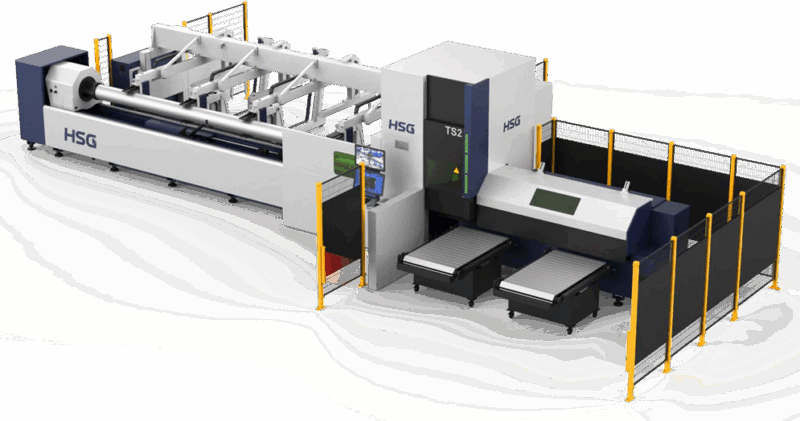

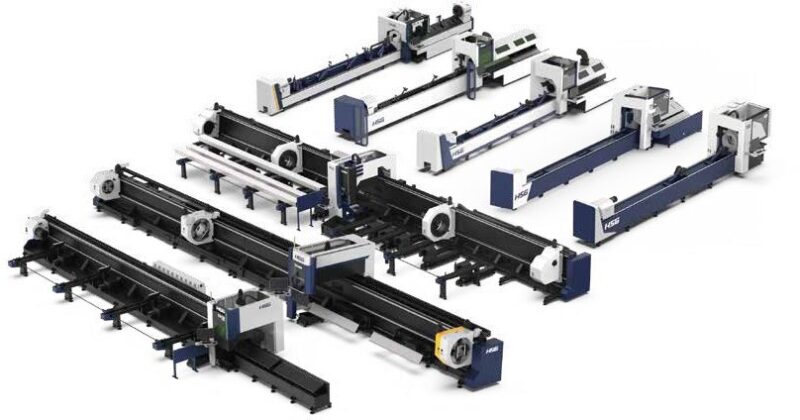

HSG TS2 V2.0 TUBE LASER CUTTING MACHINE
High-Speed Precision for Advanced Tube Processing
The HSG TS2 V2.0 delivers unmatched efficiency and accuracy in tube laser cutting. Equipped with a 6kW Raycus laser source, bevel cutting capability, and intelligent automation, it’s engineered to handle complex geometries, heavy workloads, and multiple material profiles with ease.
This machine is ideal for fabricators seeking precision, productivity, and reliability — all supported by Mac-Tech’s 40+ years of sales and service expertise.
Videos HSG TS2 V2.0 TUBE LASER CUTTING MACHINE
HSG TS2 V2.0 TUBE LASER CUTTING MACHINE
Description
Description
High-Speed Precision for Advanced Tube Processing
The HSG TS2 V2.0 delivers unmatched efficiency and accuracy in tube laser cutting. Equipped with a 6kW Raycus laser source, bevel cutting capability, and intelligent automation, it’s engineered to handle complex geometries, heavy workloads, and multiple material profiles with ease.
This machine is ideal for fabricators seeking precision, productivity, and reliability — all supported by Mac-Tech’s 40+ years of sales and service expertise.
Key Features
Key Features
-
High Power 6kW Raycus Laser – Clean, fast cuts for a wide range of materials.
-
±45° Bevel Cutting – Perfect for V and Y cuts in round, square, and rectangular tubes.
-

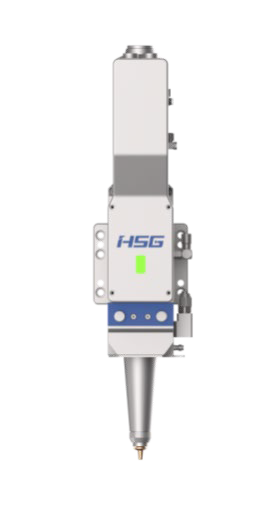

Intelligent HSG Cutting Head – Stable performance with integrated monitoring.
-

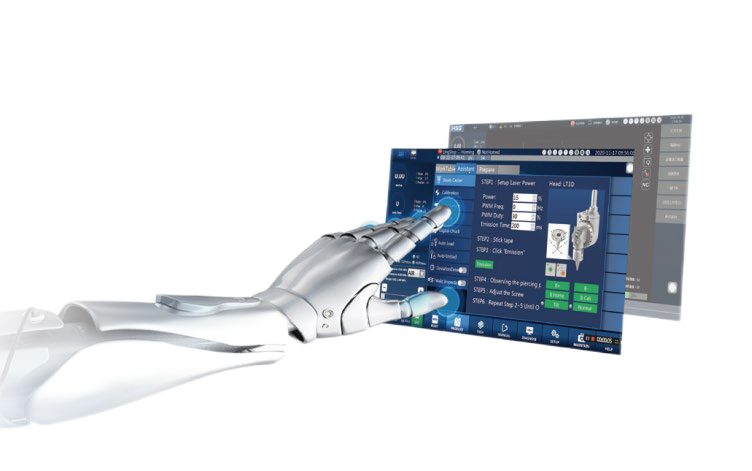

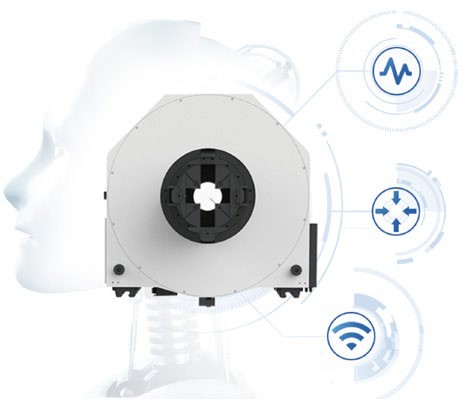

HSG-X Control System – Built-in chart library, automatic fault diagnosis, and real-time monitoring.
-
Full Accessory Package – Water chiller, transformer & stabilizer, dust collector, nesting software, safety curtain, and auto loading/unloading system.
-
Warranty & Support – 3 years on machine bed, 2 years on laser source, backed by Mac-Tech’s expert service team.
Technical Specifications
Technical Specifications
Technical Specifications
| Parameter | Metric | Imperial |
|---|---|---|
| Laser Source | Raycus 6kW | Raycus 6kW |

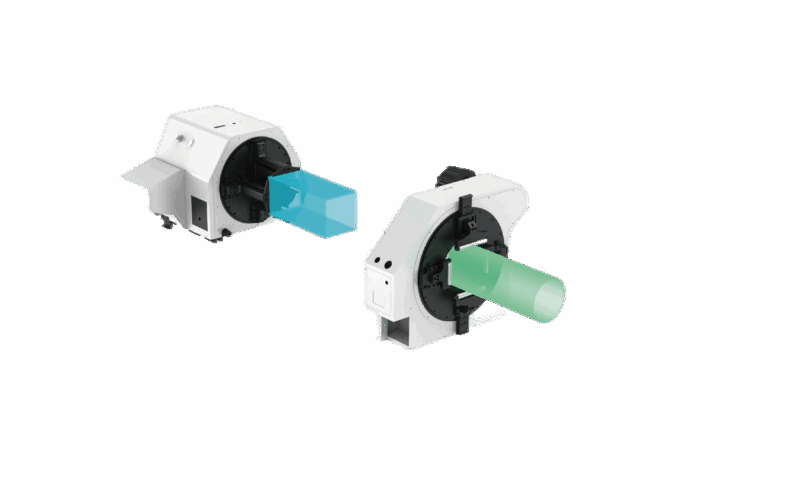

| Tube Processing Range | Round: φ20–φ273 mm Square: □20×20–□220×220 mm Rectangular: Diagonal ≤254 mm H-beam ≤180×180 mm |
Round: 0.78″–10.7″ Square: 0.78″×0.78″–8.66″×8.66″ Rectangular: Diagonal ≤10″ H-beam ≤7.1″×7.1″ |
| Bevel Angle | ±45° | ±45° |
| Positioning Accuracy (X/Y) | ±0.05 mm/m | ±0.0006 in/ft |
| Repetition Accuracy (X/Y) | ±0.03 mm | ±0.0012 in |
| Max Chuck Speed | 140 RPM | 140 RPM |
| Max Linkage Speed | 140 m/min | 459 ft/min |
| Acceleration | 1.4 G | 1.4 G |
| Max Tube Weight | 300 kg (33 kg/m) | 661 lbs (22 lbs/ft) |
| Tailing Length | ≥220 mm | ≥8.6 in |
| Machine Dimensions | 16,000 × 6,400 × 2,800 mm | 52.5′ × 21′ × 9.2′ |
| Power Consumption | 65 kW / 130 A | 65 kW / 130 A |
Included Accessories
Included Accessories
Included Accessories
-
Water Chiller
-
Transformer & Voltage Stabilizer
-
Dust Collector (4 filters)
-

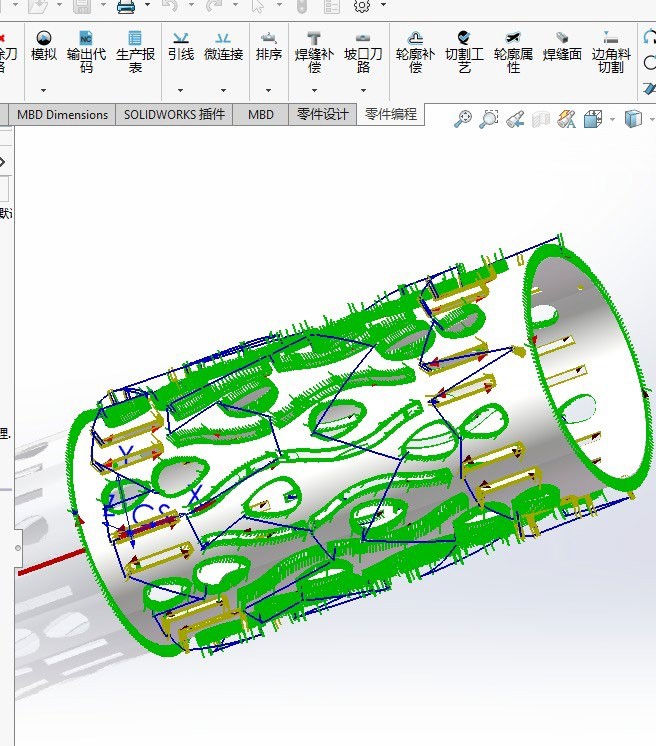

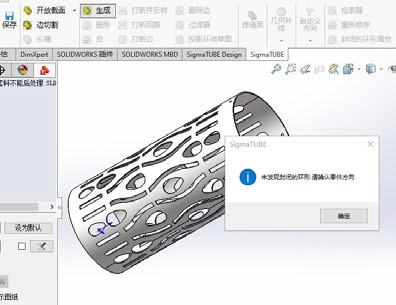

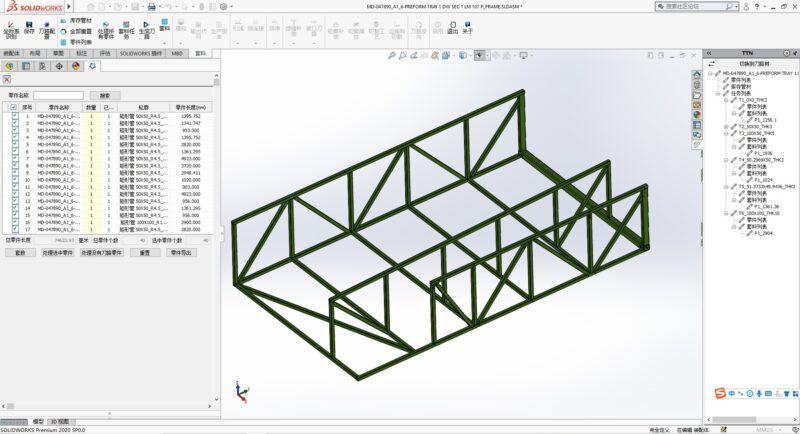

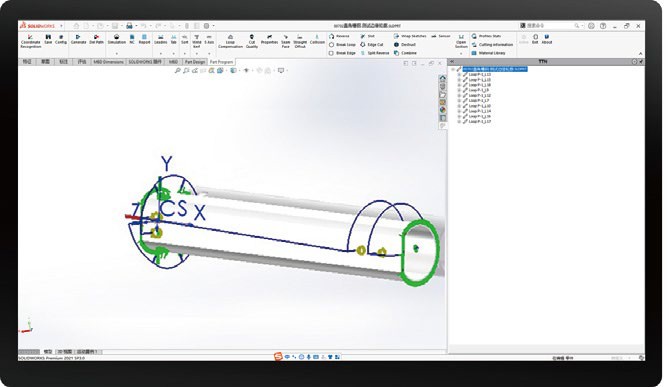

HSG Nesting Software (TTN)
-

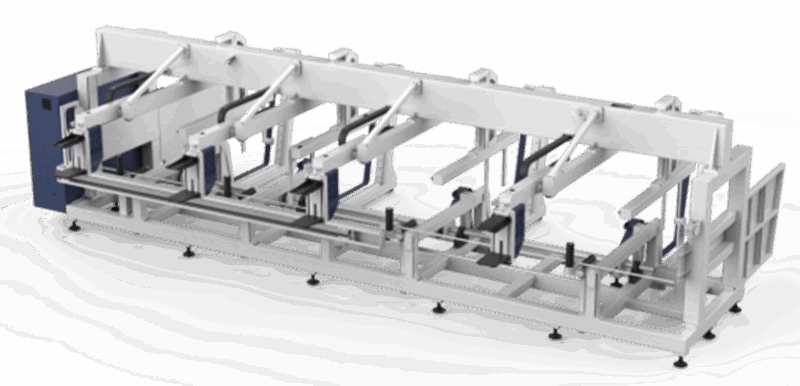

Auto Loading & Unloading Systems
-
Safety Light Curtain
