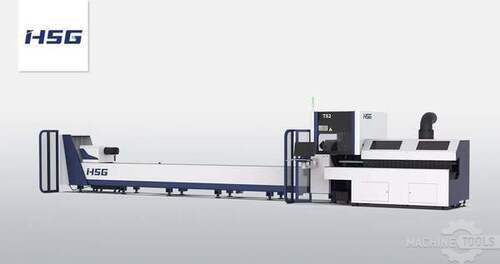

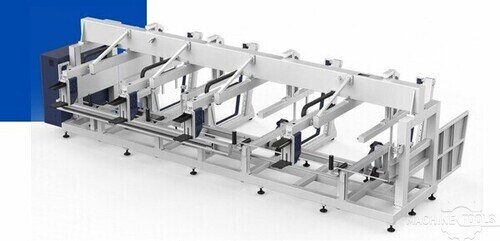

HSG TS2 HIGH SPEED TUBE FIBER LASER CUTTING MACHINE
Videos HSG TS2 HIGH SPEED TUBE FIBER LASER CUTTING MACHINE
HSG TS2 HIGH SPEED TUBE FIBER LASER CUTTING MACHINE
Description
Description
Specifications
Specifications
SPECIFICATIONS
| Wattage | 6000 w |
| Control | CNC (HSG X) |
Equipped With
Equipped With
EQUIPPED WITH
- 6kw Raycus Fiber Power Source
- HSG BEVEL Cutting Head

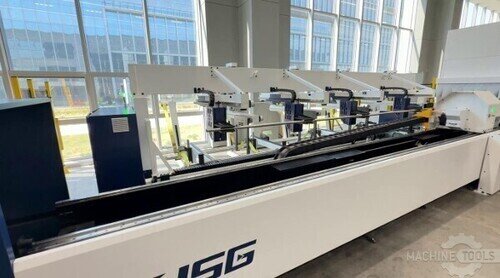

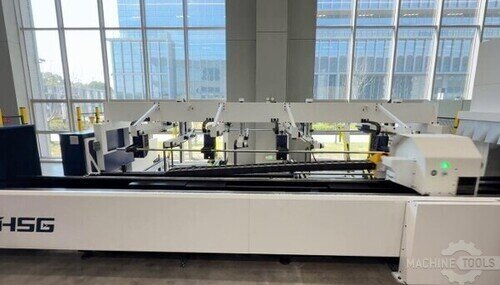

- Infeed Bundle Loader
- Seam Detection
- Unloading System
- HSG X Control System with Touchscreen Interface
- HSG TTN Nesting Software (supports all tube and profile shapes)

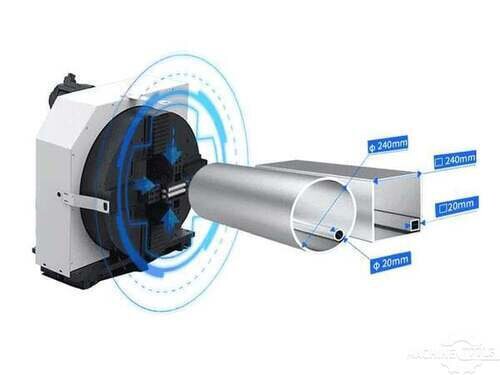

- 2 High-Speed Digital Smart Chucks with Auto-Centering
- Water Chiller
- Dust Collector (4-filter)
- Voltage Stabilizer

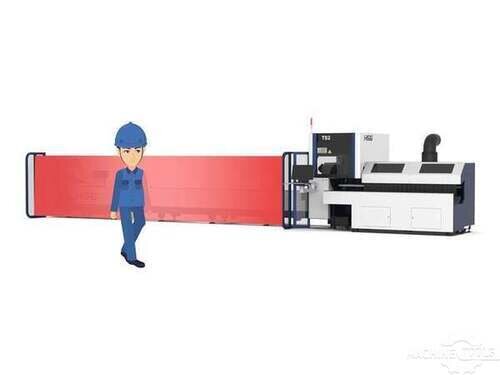

- Full Safety Package (Light Curtains, Enclosures)
- AC Cooling Room for Laser Cabinet
- Consumables Starter Kit (100 nozzles, 50 lenses, 30 ceramics)
Spec Sheet
Spec Sheet
SPEC SHEET
Core Cutting Specs:
- Laser Power: 6kW Raycus
- Round Tube Range: Ø0.79″ – Ø10.75″
- Square Tube Range: 0.79″ x 0.79″ – 8.66″ x 8.66″
- Rectangular Tube: Up to 10″ diagonal
- Infeed Length Capacity: 39″ – 362″
- Max Tube Weight: 660 lbs (approx. 22 lbs/ft)
- Tailing Length: ≥8.66″
- Bevel Cutting Angle: ±45° (V & Y cuts)
- Max Cutting Speed: ~5512 in/min
- Chuck Speed: Up to 140 RPM
- Positioning Accuracy: ±0.002″
- Repeatability: ±0.0012″
Included Standard Features:
- HSG BEVEL Cutting Head
- HSG X Control System with Touchscreen Interface
- HSG TTN Nesting Software (supports all tube and profile shapes)
- 2 High-Speed Digital Smart Chucks with Auto-Centering
- Water Chiller, Dust Collector (4-filter), and Voltage Stabilizer
- Full Safety Package (Light Curtains, Enclosures)
- AC Cooling Room for Laser Cabinet
- Consumables Starter Kit (100 nozzles, 50 lenses, 30 ceramics)
Automation & Handling
- Infeed Bundle Loader (Included):
- Tube Size Range: Ø0.79″ – Ø10.75″
- Load Length: 142″ – 256″
- Max Bundle Weight: 11,000 lbs
- Storage: Up to 5 tons of raw tube
- Seam Detection (Included):
- Auto seam orientation for round tubes ensures accurate bevels and cut alignment

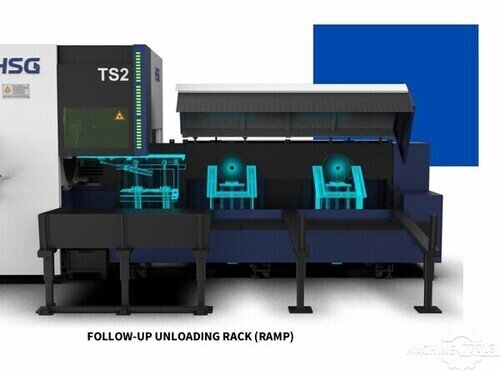

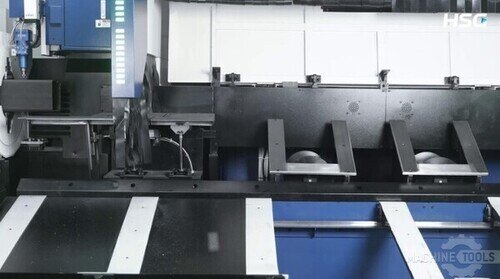

- Unloading System (Included):
- Follow-up auto unloading system with smart height adjustment
- 10.8A / 5.4kW powered conveyor to receive and stage parts up to 10 ft
Advanced Software Features
- Real-time diagnostics, pressure monitoring, fault alerts
- High-speed intelligent nesting
- Supports round, square, rectangular, oval, D-shaped, H/I beams, angle/channel
Support & Warranty
- 3-Year Machine Bed Warranty
- 2-Year Laser Source Warranty
- 24/7 Remote Support
- Onsite Installation & Training Included
