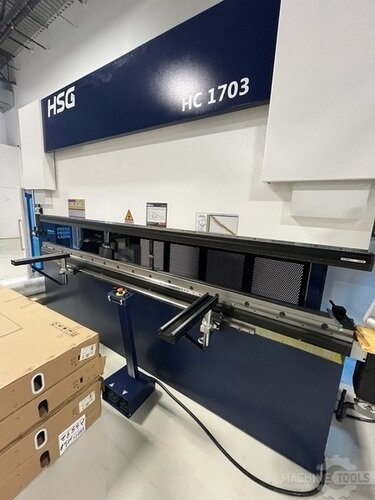

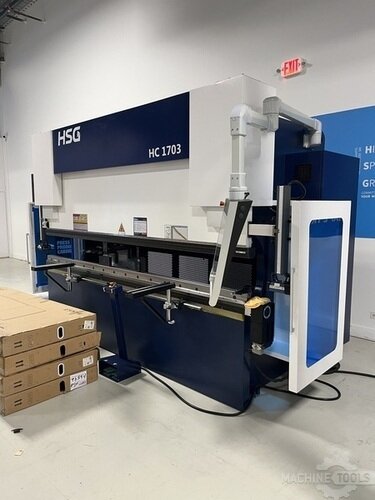

HSG HC1703

Description

Specifications

SPECIFICATIONS

Equipped With

EQUIPPED WITH

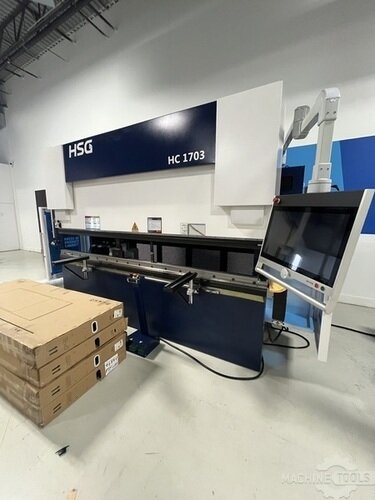

• DELEM DA69S Control w/24″ LED Display
• WILA Hydraulic Clamping
• WILA Hydraulic Station

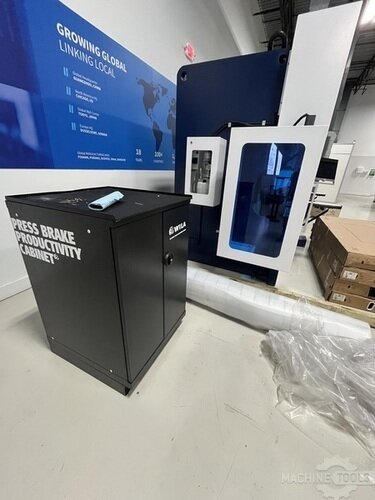

• WILA Tool Cabinet

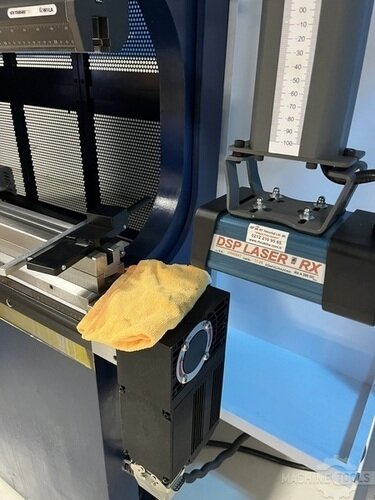

• Light Curtains
• Transformer & Voltage Stabilizer

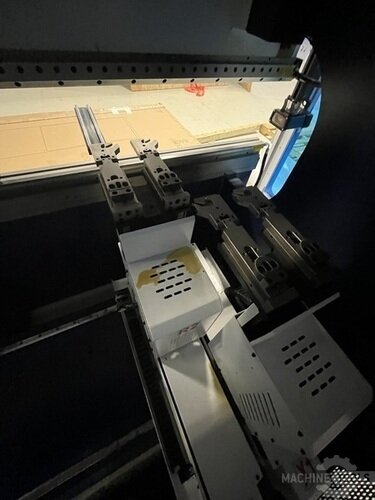

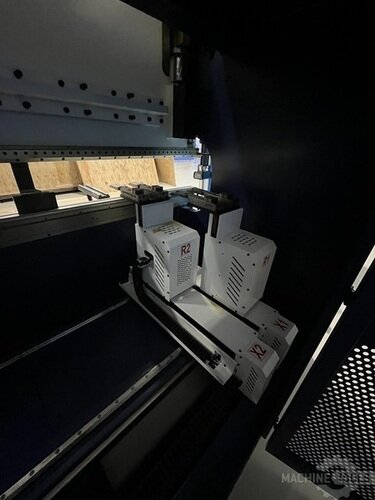

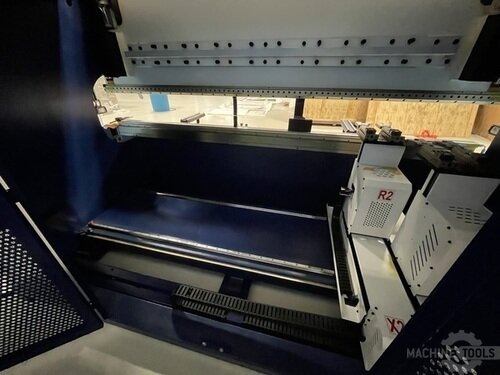

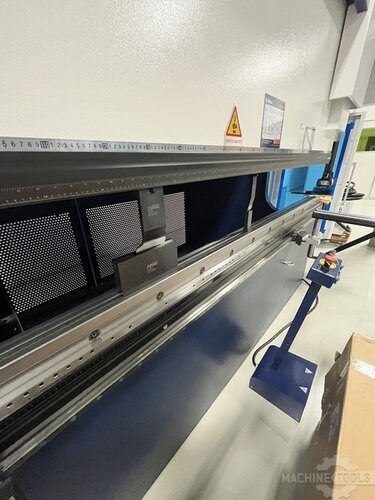

• 8+1 Axis Backgauge System

Spec Sheet

SPEC SHEET

• Bending Force: 170 metric tons / 187 US tons

• Bending Length: 3200 mm / 126″

• Height of Working Table: 900 mm / 35.4″

• Distance Between Columns: 2700 mm / 106.3″

• Throat Depth: 400 mm / 15.7″

• Slider Stroke: 200 mm / 7.87″

• Maximum Opening Height: 530 mm / 20.9″

• Rapid Descent Speed: 180 mm/sec / 7.09 in/sec

• Return Speed: 150 mm/sec / 5.91 in/sec

• Working Speed: 10 mm/sec / 0.39 in/sec

• X-Axis Back Gauge Travel: 0–600 mm / 0–23.6″

• Maximum Operating Speed of X Axis: 400 mm/sec / 15.75 in/sec

• Y Axis Positioning Accuracy: ≤ ±0.02 mm / ±0.0008″

• Y Axis Repetition Accuracy: ≤ ±0.01 mm / ±0.0004″

• R Axis Stroke: 150 mm / 5.91″

• Maximum Running Speed of R Axis: 100 mm/sec / 3.94 in/sec

• Working Accuracy – Straight Line: ±0.2 mm/m / ±0.0024″ per foot

• Angle Accuracy: ±0.5°

• Controlled Axis: 8 + 1

• Power of Main Motor: 18 kW

• Fuel Tank Capacity: 200 L / 52.8 gallons

• Dimensions (L × W × H): 4400 × 1700 × 2450 mm / 173.2″ × 66.9″ × 96.5″

• Total Weight: 10,500 kg / 23,150 lbs
