HSG G4020V 6G 30KW + STORE 4020 6
Videos HSG G4020V 6G 30KW + STORE 4020 6
HSG G4020V 6G 30KW + STORE 4020 6
Description
Description
Specifications
Specifications
| Sheet-W | 78.74″ |
| Sheet-L | 157.48″ |
| Wattage | 30 kw |
| IPM | 11811 ipm |
| X | 6.74′ |
| Y | 13.12′ |
| Z | 5.9″ |
| Dimensions | 12400×4430×2865 |
| Control | CNC (HSG-X Bus Control System) |
Spec Sheet
Spec Sheet
- Cutting Area (Length × Width): 160 × 80.3 in
- X-Axis Travel: 80.3 in
- Y-Axis Travel: 160 in
- Z-Axis Travel: 5.9 in
- X/Y Axis Positioning Accuracy: ±0.0012 in
- Max. Linkage Speed: 984 ft/min
- Max. Linkage Acceleration: 6 G
- Max. Loading Weight: 11,023 lbs
- Machine Overall Dimensions (L × W × H): 488.2 × 174.4 × 112.8 in
- Voltage: 380 V
- Frequency: 60 Hz
Equipped With
Equipped With
- Laser Source: 30kw RAYCUS
- Cutting Head: HSG BOCHU
- Control system (AlphaT Plus)
- Machine Bed: HSG

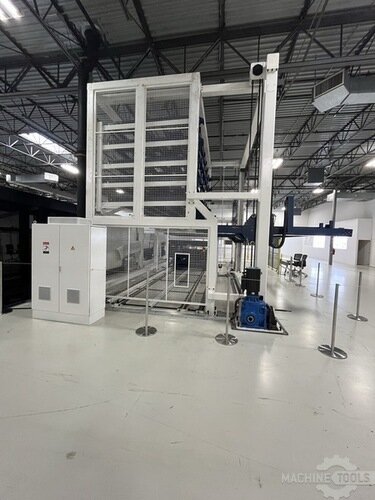

- Automation: Dual Pallet + STORE 4020 6 Shelf Tower Automation
- Standard Accessories
- Water chiller
- Dust collector
- Transformer&Voltage Stabilizer
- OD6 laser protection glass
- Safety light curtains
- Camera
- Nesting Software
- AC room for laser
