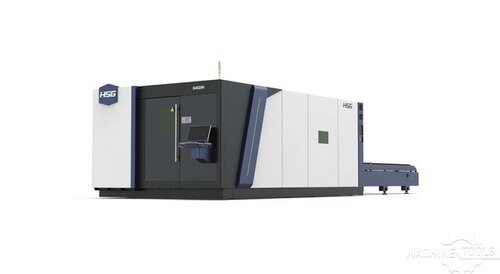

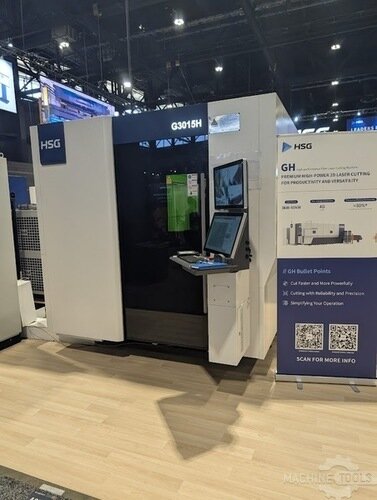

HSG-G3015H V2.0-STORE PRO3015 10 SHELF
Videos HSG-G3015H V2.0-STORE PRO3015 10 SHELF
HSG-G3015H V2.0-STORE PRO3015 10 SHELF
Description
Description
Specifications
Specifications
SPECIFICATIONS
| Sheet-W | 61.024″ |
| Sheet-L | 122.05″ |
| Wattage | 12000 w |
| IPM | 7874 ipm |
| X | 5′ |
| Y | 10′ |
Equipped With
Equipped With
EQUIPPED WITH
- Laser Source (Raycus-12kw)

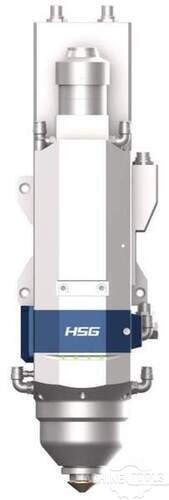

- Cutting head (HSG) P10
- Control system (AlphaT pro)
- Machine bed (HSG)
- Standard Accessories
- Water chiller
- Dust collector
- Transformer & Voltage Stabilizer
- OD4 laser protection glass
- Safety light curtains
- Camera
- Nesting Software
- AC room for laser
- NAC PRO automatic nozzle replacement
- MES Laser RayBox
- Single finished sheet sort station
Spec Sheet
Spec Sheet
SPEC SHEET

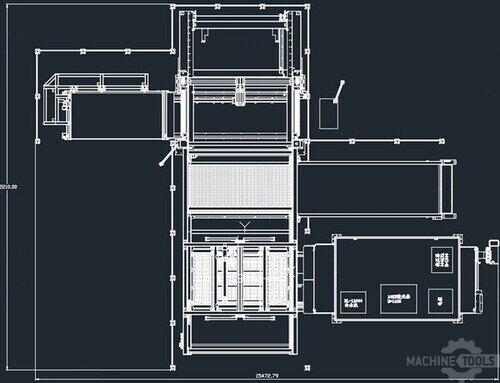

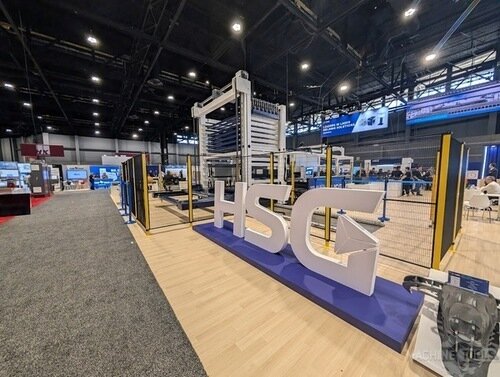

- 3015 single tower with total height of 7.1m / 23.7’ (incl. 6.4m steel structure height with total 15 layers) for both raw materials w/o wooden pallet (12 layers) and finished goods (3 layers)
- 12 for raw materials w/o wooden pallet (90mm (3.54”)) / 3 for finished goods (310mm (12.2”) incl. wooden pallet height)
- Each Pallet loading Weight: 3300kg (6,613lbs)
- Max Stacking Height per Each Pallet: 90 w/o wooden pallet / 310 incl. wooden pallet height (3.54 / 12.2)
- Total Tower Height 7,100 (23.7″)*
- Allowable Thickness Range: 0.8-16 (0.03-0.63)
- Min. Size of Raw Material :1,000 x 1,000 (3.28 x 3.28)
- Max. Size of Raw Material: 3,048 x 1,524 (10 x 5)
- Max. Loading and Unloading Weight : 600kg (1,322lbs)
- Weighting device
- WMS
- Unpacking station
- Synchronous loading and unloading
- Thin sheet separation package (0.8-3mm / 0.03-0.12’’), incl. double sheet detection, gas blower and peeling device
- Max 600kg / 1,322 Ibs
- Safety device for the whole automation system
- Right hand installation
