ERMAKSAN SPEED BEND 4270-400

Description

Specifications

SPECIFICATIONS

Equipped With

EQUIPPED WITH

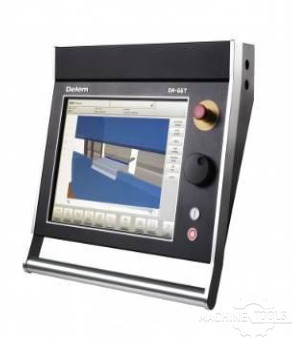

• Delem 66TOUCH 2D Programming with 3D Graphical Visualization

• Profile T ‘Lite’ Offline Software Included

• 6-Axis CNC: Y1, Y2, X, R, Z1, Z2

• CNC Motorized Wedge Crowning, Anti-Deflection

• LazerSafe PCSS Ram-Mounted Laser Safety System

• Oil Coolant System

• Mitsubishi MelServo JS Servo Drives & Motors

  • X-Axis Ballscrew: 31.5”

  • R-Axis Ballscrew: 9.8”

• Heidenhain Linear Glass Scales: ±0.0002” Resolution, ±0.0004” Repeatability

• Hoerbiger Hydraulic Valve System

• Siemens Electrical System

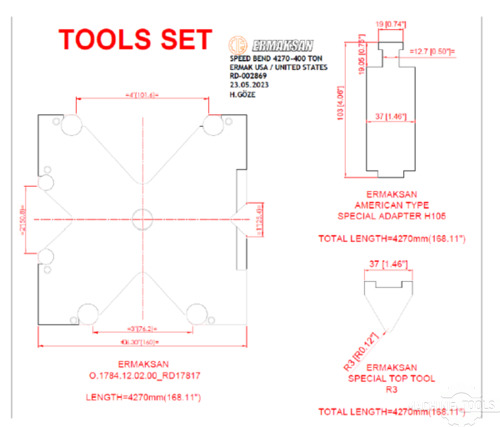

• Precision Tooling Package:

  • ERMAKSAN 300-400 TON American Promecam

  • ERMAKSAN American Type Adapter H105 (168.11”)

  • ERMAKSAN Special Top Tool R3 (168.11”)

  • ERMAKSAN 0.1784.12.02_RD17817 (168.11”)

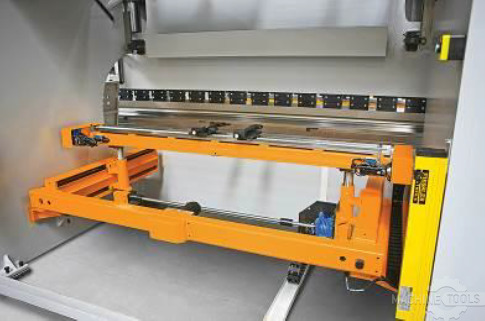

• Two (2) Front Sliding Support Arms on THK Ways

• Rear Photocell Guard: CAT .04 Fiessler / W2000 Sick

• Side Safety Guards with Switch

• Double Foot Pedal Operator Station

• 230V or 460V, 60Hz, 3-Phase Electrical (Specify at Order)

• Machine Finish: RAL 7035 / RAL 9007

• English Labels & Manuals

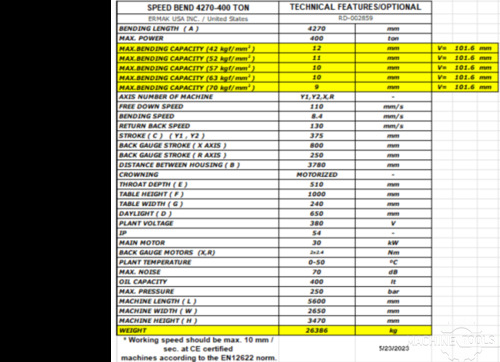

Spec Sheet

SPEC SHEET

• Model: ERMAK SPEED-BEND 4270-400

• Capacity: 440 US Tons

• Bending Length: 14’ (168”)

• CNC Axes: 6 (Y1, Y2, X, R, Z1, Z2)

• Back Gauge Travel: X-Axis 31.5”, R-Axis 9.8”

• Crowning: CNC Motorized Wedge, Anti-Deflection

• Safety: LazerSafe PCSS Ram-Mounted Laser, Rear Photocell Guard, Side Guards

• Drive System: Mitsubishi MelServo JS Servo Motors & Drives

• Hydraulic System: Hoerbiger

• Control: Delem 66TOUCH, Profile T ‘Lite’ Offline Software

• Tooling: ERMAKSAN Promecam / Adapter / Special Top / RD17817

• Operator Features: Double Foot Pedal, Front Sliding Support Arms

• Electrical: 230V or 460V, 60Hz, 3-Phase

• Machine Finish: RAL 7035 / RAL 9007

• Documentation: English Labels & Manuals
