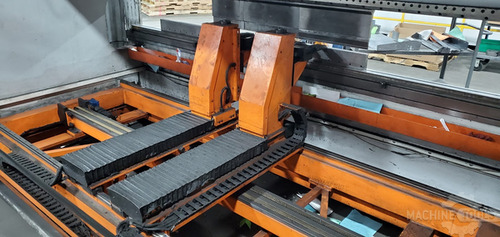

ERMAKSAN SPEED BEND 12′ X 193
Videos ERMAKSAN SPEED BEND 12′ X 193
ERMAKSAN SPEED BEND 12′ X 193
Description
Description
Thank you for the opportunity to present to you our Ermaksan Press brake total productivity solution. If your aim is to provide important developments in quality, productivity, aesthetic and security aspects, the Ermak CNC SPEEDBEND is exactly what you are looking for. The CNC SPEEDBEND series is designed to work with a wide variety and where production speed is critical. Syncro systems are provided by synchronized cylinders with proportional valve technology and controlled through high powered CNC control. The ROCK 3D control is used on our SPEEDBEND series. This controller’s easy usage, high capacity and fast processing power, durability and service network all around North America makes it one of today’s most popular. We are very proud to offer this machine to our customer and truly believe that we can not only change your bending culture, but help your company exceed expectations in your forming department.
Brand – ERMAKSAN
Model – SPEED BEND 12′ X 193
Type – Press Brakes
Condition – Used – Good
Specifications
Specifications
| Tonnage | 192 T |
| Type | HYD |
| Overall Length | 148″ |
| Between Housings | 128″ |
| Stroke | 10.8″ |
| # Axis | 6 |
| Dimensions | 193” x 84.7” x 110.24” |
| Weight | 24224 lbs |
Equipped With
Equipped With
Equipped With
- ROCK 3D CNC Control (2022)
- 6-Axis ATF Type Back-Gauge (X1, X2, R1, R2, Z1, Z2)
- WILA PREMIUM Upper & Lower Hydraulic Clamping
- AKAS II LC2000 Ram-Mounted Laser Safety
- CNC Motorized Crowning System
Spec Sheet
Spec Sheet
Spec Sheet
- ERMAK SPEED-BEND 3760-175
- Tonnage 193 US Tons
- A Bending Length 148 Inches
- B Distance Between Housings 128 Inches
- C Stroke 10.8 Inches
- D Daylight (Open Height) 21.7 Inches
- E Throat Depth 16.1 Inches
- F Table Height 35.4 Inches
- G Table Width 3.54 Inches
- Approach Speed 425 in/minute
- Bending Speed 28 in/minute
- Return Speed 448 in/minute
- Back Gauge Travel (X Axis) 31.5 Inches
- Main Motor 20.1 HP
- Oil Capacity 79.6 US Gallons
- L Machine Length 193 Inches
- W Machine Width 85 Inches
- H Machine Height 110 Inches
- Weight 24,420 lbs
