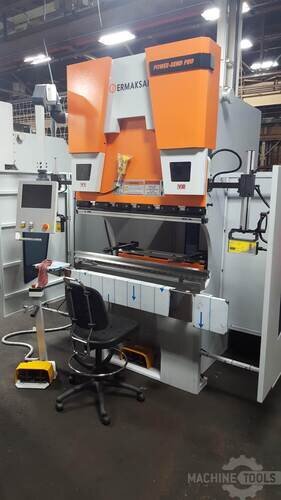

ERMAKSAN POWER BEND SEATER
ERMAKSAN POWER BEND SEATER
Description
Description
Specifications
Specifications
SPECIFICATIONS
| Tonnage | 66 T |
| Overall Length | 4′ |
| Between Housings | 39.4″ |
| Stroke | 10.8″ |
| # Axis | 4 |
Equipped With
Equipped With
EQUIPPED WITH
- Delem DA58TOUCH 2D CNC Control with Offline Programming
- 4-Axis (Y1, Y2, X, R)
- Heidenhain Linear Scales
- Promecam-Style Quick-Release Tool Clamps
- American Precision Ground & Hardened Gooseneck Punch
- American 4-Way V-Die
- American Die Riser Block
- 60 mm European Tool Holder
- 19.7″ Servo-Driven Ballscrew X-Axis
- Fiessler / W2000 Sick Rear Photocell Guard
- Interlocking Side Guards with Safety Switch
- Hoerbiger Hydraulic Valve System
- Siemens Electrical System
- Floating Pendant Suspension Arm
- Knee-Gap Operator Workstation
- Double Foot Pedal
- Collapsible Front & (2) Side Work Tables
- Operator Chair
Spec Sheet
Spec Sheet
SPEC SHEET
- Tonnage Capacity: 66 Tons
- Bending Length: 50″
- Distance Between Housings: 41.3″
- Stroke: 10.8″
- Daylight (Open Height): 20.7″
- Throat Depth: 13.7″
- Table Height: 31.5″
- Table Width: 3.5″
- Approach Speed: 472 IPM
- Bending Speed: 33 IPM
- Return Speed: 389 IPM
- Backgauge Travel (X-Axis): 25.4″
- Backgauge Travel (R-Axis, Optional): 9.8″
- Main Motor: 10 HP
- Oil Capacity: 40 US Gallons
- Maximum Pressure: 3,701 PSI
- Machine Length: 85″
- Machine Width: 65″
- Machine Height: 110″
- Weight: 9,152 lbs
