Used Machines

TIMESAVERS 32 SERIES 1100 WRBW

Brand – TIMESAVERS
Model – 32 SERIES 1100 WRBW
Type – Deburring Machines
Year – 2019
Condition – Used – Excellent

Get a Quote

Categories: , Tags: ,

TIMESAVERS 32 SERIES 1100 WRBW

Description

Description

Brand – TIMESAVERS
Model – 32 SERIES 1100 WRBW
Type – Deburring Machines
Year – 2019
Condition – Used – Excellent

Specifications

Specifications

EQUIPPED WITH

  • 1100 mm maximum working width

  • Handles material thickness 0–100 mm

  • Digital readout with “dial-in” thickness setting

  • Variable through-feed conveyor speed: 0.2–8 m/min

  • Vacuum table for processing small aluminum pieces with automatic vacuum compensation

  • “Sticky” faced conveyor belt

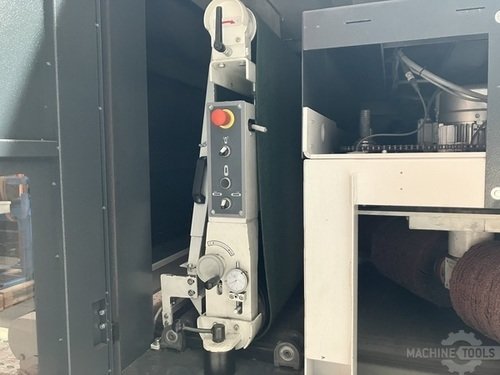

  • Abrasive belt head

  • Aspiration unit included

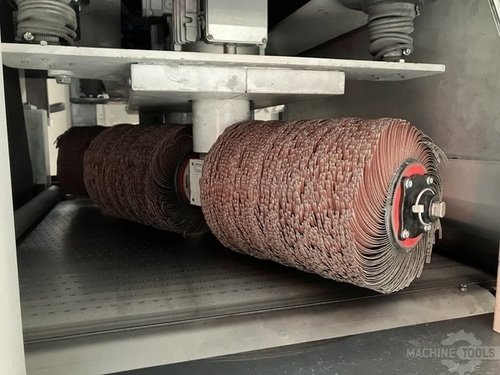

  • Extra head for deburring and finishing

  • Functions: deburring, edge rounding, oxide skin removal, finishing

  • Built in 2019

  • Complete original manuals and technical documentation in English



Spec Sheet

Spec Sheet

SPEC SHEET

  • Max. Working Width: 1100 mm

  • Sanding Belt Dimensions (W x L): 1130 x 1900 mm

  • Brush Diameter: 300 mm

  • Table Opening: 0 – 100 mm

Speed:

  • 1st Unit, Frequency Controlled: 5 – 15 m/sec

  • 2nd Unit, Frequency Controlled: 6 – 17 m/sec

  • Feed Rate, Frequency Controlled: 0.2 – 8 m/min

Electrical:

  • Main Motor 1st Aggregate: 7.5 kW

  • Main Motor 2nd Aggregate (RB): 1.0 kW

  • Main Motor Brushes: 2 x 1.5 kW (3 kW total)

  • Main Motor 3rd Aggregate: 7.5 kW

  • Feed Motor: 1.5 kW

  • Vacuum Pump: 4 kW

  • Electrical Connections: 400 V

  • Frequency: 50 Hz

  • Control Current: 24 V

Air Requirements:

  • Required Air Pressure: 6 bar

  • Air Consumption: 45 l/min

Dust Extraction:

  • Required Capacity (100 mm WS): 6,100 m³/h

  • Machine Weight: 3,750 kg
