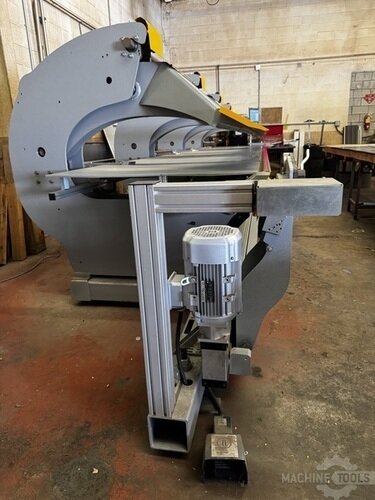

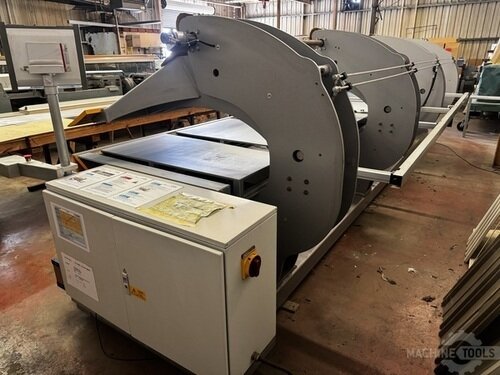

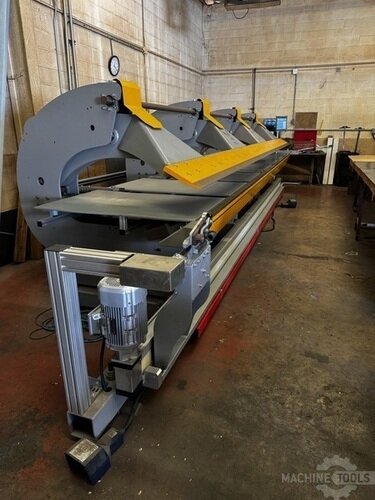

THALMANN TZ125-6.4M
THALMANN TZ125-6.4M
Description
Description
Specifications
Specifications
SPECIFICATIONS
| Max Thickness (gauge) | 18 gauge |
| Overall Length | 21′ |
| Dimensions | 77″ W x 280″ L x 71″ H |
| Weight | 10,800 |
Equipped With
Equipped With
EQUIPPED WITH
-
6.4m (21′) × 18 Gauge CNC Single Folder System
-
Integrated Roller Shear
-
Green LED Lights on Beam
-
Back Stoppers
-
Back Stopper for Short Parts
-
Modular Tool Geometry
-
35° flat tool angle
-
Allows 3:4 height/depth bending ratio
-
275° machining clearance
-
Upper blade with 35° tilt
-
15° inclination for straight bending blade geometry
-
-
Innovative Camshaft Technology
-
Even power distribution across full machine length
-
High angular accuracy and parallelism
-
Camshaft kinetic system
-
VFD (Vertical Force Drive) system
-
-

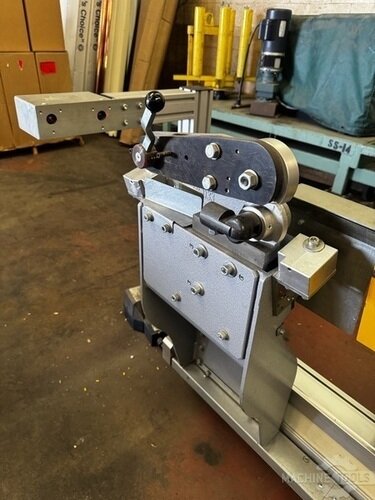

Electrical Longitudinal Cutting Unit
-
Mounted to machine frame
-
No linear guides on bending tool
-
Free tool travel and additional machining space
-
-
Sheet Thickness Adjustment & Cambering
-
Automatic sheet thickness adjustment via dual servomotors
-
Dynamic crowning function
-
Manual cambering of bending blade
-
-
Automatic Striker Stop
-
Radius range: 5–1250 mm
-
Optional conical striker stop
-
-
Safety System
-
Complete safety concept
-
Laser monitoring in clamping area
-
Laser monitoring on cutting unit
-
-
High-Performance STOP-and-GO Hydraulic System
-
Adjustable Sheet Metal Support Table
-

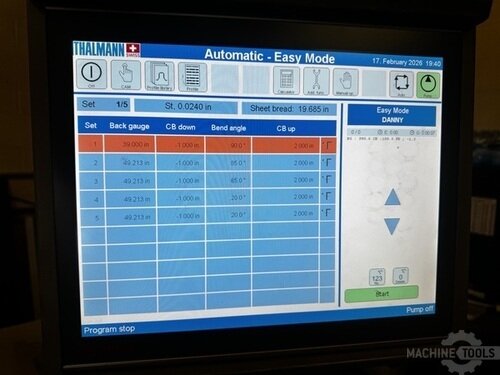

CNC Control Unit with Touch Screen
