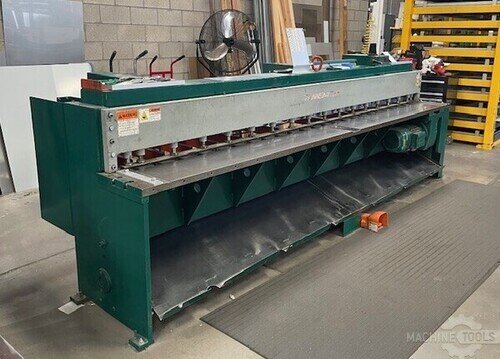

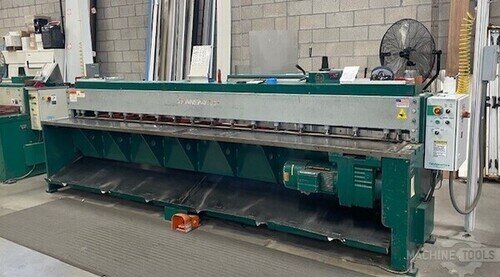

TENNSMITH LM1214
Description
Specifications
Specifications
SPECIFICATIONS
| Max Gauge | 14 gauge |
| Length of Blade | 12′ |
| Hyd/Mech | Mech |
| Back Gauge | 30″ |
| Power | 5 hp |
| SPM | 35 strokes/min. |
| Dimensions | 145″L x 27″W x 55″H |
| Weight | 6200 lbs |
Spec Sheet
Spec Sheet
SPEC SHEET
- Maximum Shearing Capacity
- Mild Steel 14 gauge/2,0mm
- Mild Steel Rated Materials 80,000 Tensile / 44,000 Yield
- Maximum Shearing Capacity, Stainless Steel 18 gauge/1,25mm
- Stainless Shear Rated Materials 90,000 Tensile / 55,000 Yield
- Maximum Cutting Length 127 in/3225mm
- Back gauge Range 30 in/762mm
- Strokes per Minute 35
- Number of Hold downs Solid Bar with Insert

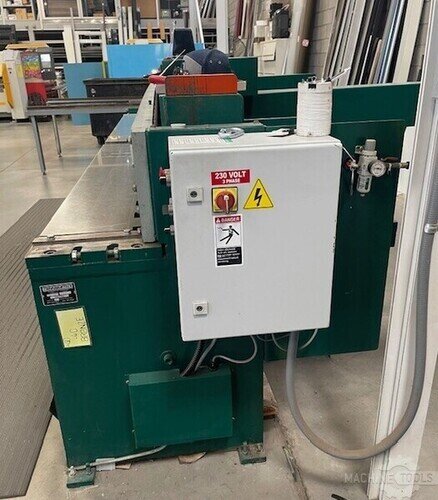

- Motor-230, 3-phase, 60Hz 5 hp
- Overall Dimensions, Less Gauges, LxWxH 145 x 27 x 55-1/2 in
- Floor Space, Gauges in Position 145 x 60 x 55-1/2 in
- Shipping Weight 6200 lbs
