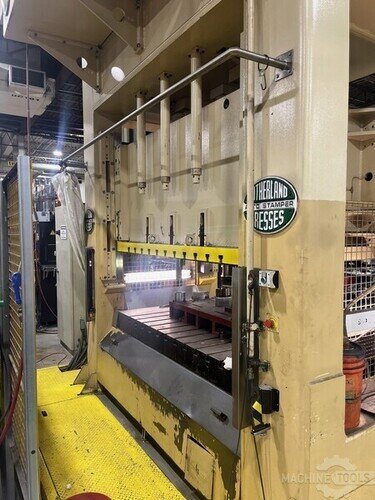

SUTHERLAND HD300
SUTHERLAND HD300
Description
Description
Specifications
Specifications
SPECIFICATIONS
| Tonnage | 300 T |
| Stroke | 30″ |
| Daylight | 48″ |
| Power | 100 hp |
| Bed L | 122″ |
| Bed W | 59″ |
| IPM | 15 ipm |
| Weight | 78300 |
Equipped With
Equipped With
EQUIPPED WITH

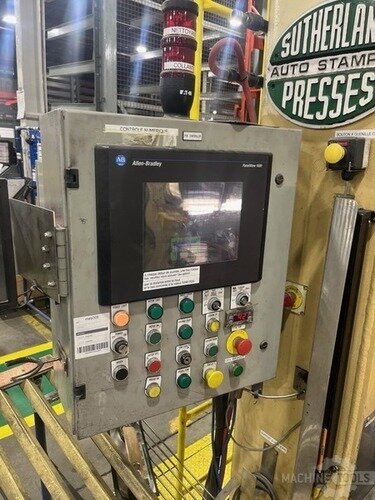

- Alan Bradley PanelView 1000 Control

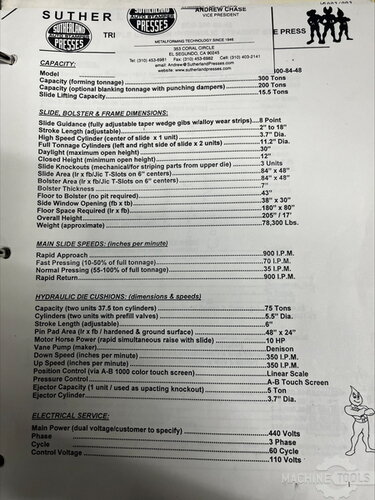

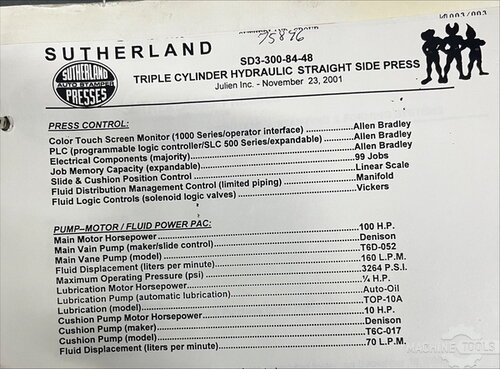

Spec Sheet
Spec Sheet
SPEC SHEET
CAPACITY:
- Capacity (forming tonnage): 300 tons
- Capacity (optional blanking tonnage with punching dampers): 200 tons
- Slide Lifting Capacity: 15.5 tons
SLIDE, BOLSTER & FRAME DIMENSIONS:
- Stroke Guidance: 8 point
- Stroke Length: 2″ – 18″ (adjustable)
- High Speed Cylinder: 3.7″ Dia
- Full Tonnage Cylinders: 11.2″ Dia
- Daylight: 30″
- Closed Height: 12″
- Slide Knockouts: 3 units
- Slide Area: 84″ x 48″Bolster Area: 84″ x 48″
- Bolster Thickness: 7″
- Floor to Bolster (no pit required): 43″
- Side window opening: 38″ x 30″
- Floor Space Requirements: 180″ x 80″
- Overall Height: 205″ / 17ft
- Approx. Weight: 78,300 lbs
MAIN SLIDE SPEEDS:
- Rapid Approach: 900 I.P.M.
- Fast Pressing: (10-50% of full tonnage): 70 I.P.M.
- Normal Pressing:(55-100% of full tonnage): 35 I.P.M.
- Rapid Return: 900 I.P.M.
HYDRAULIC DIE CUSHIONS:
- Capacity: (two units 37.5 ton cylinders): 75 Tons
- Cylinders: (two units with prefill valves): 5.5″ Dia
- Stroke Length (adjustable): 6″
- Pin Pad Area: 48″ x 24″
- Motor Horsepower: 10 HP
- Vane Pump Mfr: Denison
- Down Speed: 350 I.P.M.
- Up Speed: 350 I.P.M.
- Position Control: Linear Scale
- Pressure Control: AB Touch Screen
- Ejector Capacity: 5 ton
- Ejector Cylinder: 3.7″ DIa
ELECTRICAL SERVICE:
- Main Power: 440 Volts
- Phase: 3 Phase
- Cycle: 60 Cycle
- Control Voltage: 110 Volts
