STEFA VHB620
STEFA VHB620
Description
Specifications
Specifications
SPECIFICATIONS
| Max Thickness | 0.0787″ |
| Max Thickness (gauge) | 14 gauge |
| Overall Length | 19.69′ |
| Dimensions | 28′ x 5.9′ x 5.4′ |
| Weight | 19,800 lbs |
Equipped With
Equipped With
EQUIPPED WITH
- Declined clamping beam (deeper J channel and rectangular bends)

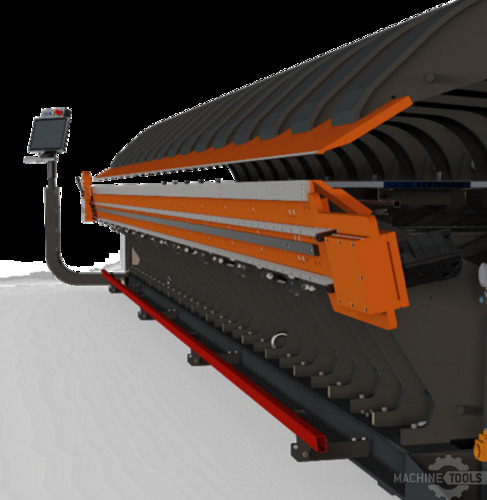

- Alligator 2D Controller
- Conical Backgauge
- Laser safety
- Thickness Sensing
- Material sensing
- 49″ backgauge
- Moveable support table
- Machined Geometry (for tight bends)
- Extra backgauge finger
- Pressure sensing
- Remote Access
- Auto radius sensing
- Servo Driven Backgauge
- Hydraulic slitter/shear
Spec Sheet
Spec Sheet
SPEC SHEET
- Model VHB620
- Max. thickness admissible 2 mm St40 – 2.6 mm Alu – 1.25 mm Inox
- Working length 6400mm No. Arms 11 arms
- Max. cut capacity 3 mm St40

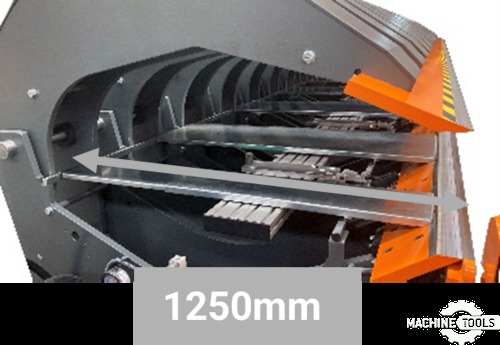

- Backgauge range (max – min) 1250mm <-> 5mm (49in to 0,2in)
- Servomotor backgauge tolerance -0,01 / + 0,02 mm
- No. backstops 6
- Servomotor backgauge speed 250mm/s
- Opening height clamping beam 260mm
- Max. rotation of bending beam 145º
- Bending tolerance +/- 1º
- Hydraulic power 7.5 kW
- Weight 19,800 lbs
- Colors RAL2008 / RAL7043 (Light orange, dark grey)
