STEFA VHB615

Description

Specifications

SPECIFICATIONS

Equipped With

EQUIPPED WITH

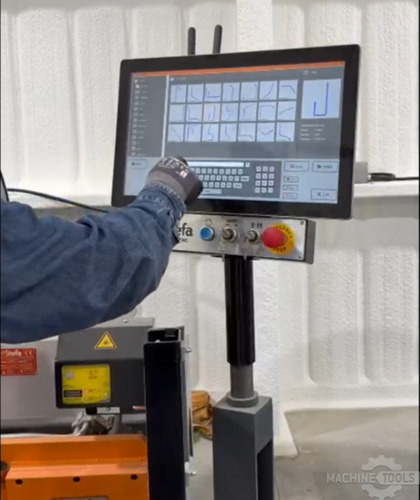

• CNC EliteBender
• Safety Laser
• Machined Geometry
• VHB Geometry
• Conical Backgauge

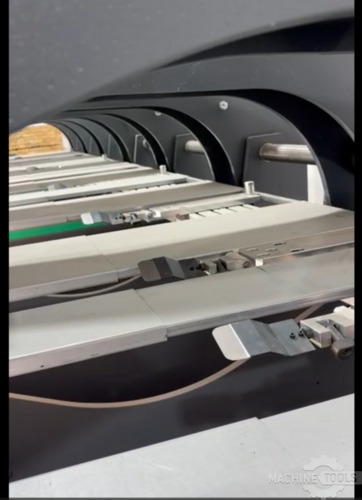

• 49in Backgauge
• Extra Arm

Spec Sheet

SPEC SHEET

• Max. Thickness Admissible: 1.5 Mm St40 / 2 Mm Aluminum / 0.9 Mm Stainless Steel

• Working Length: 6400 Mm

• Number Of Arms: 8

• Max. Cut Capacity: 2 Mm St40

• Backgauge Range (Max / Min): 1250 Mm to 5 Mm (49″ to 0.2″)

• Servomotor Backgauge Tolerance: –0.01 / +0.02 Mm

• Number Of Backstops: 6

• Servomotor Backgauge Speed: 250 Mm/Sec

• Opening Height (Clamping Beam): 260 Mm

• Max. Rotation Of Bending Beam: 145°

• Bending Tolerance: ±1°

• Hydraulic Power: 7.5 kW

• Weight: 14,560 Lbs

• Colors: RAL 2008 / RAL 7043 (Light Orange, Dark Grey)
