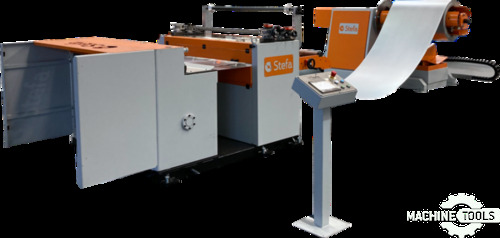

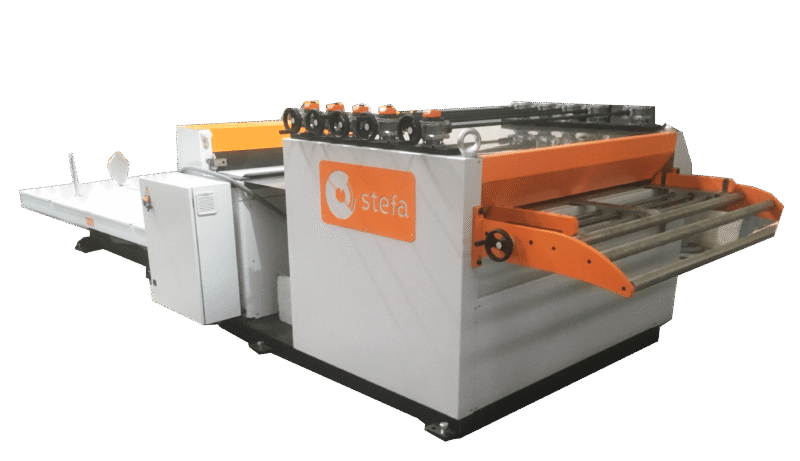

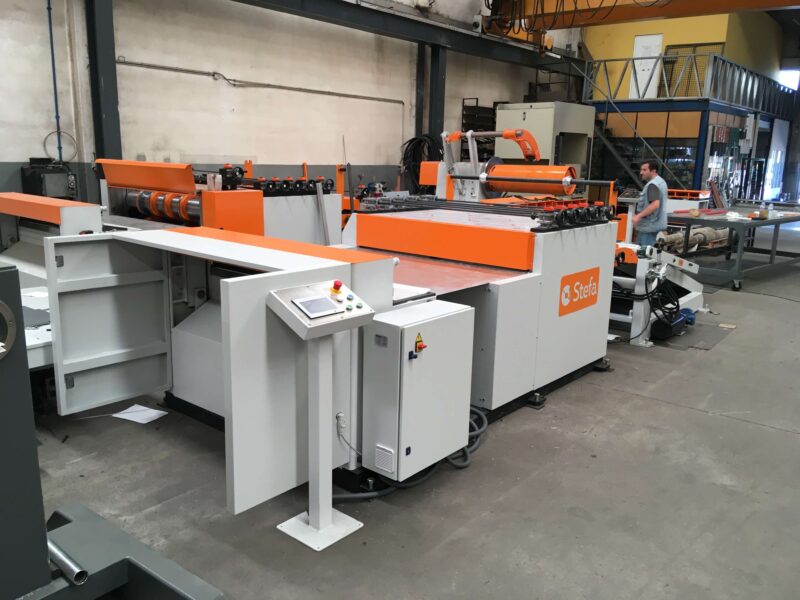

STEFA LCS3
Description
Specifications
Specifications
SPECIFICATIONS
| Max Width | 3.1102″ |
| Max Thickness (gauge) | 11 gauge |
| Max Thickness | 0.1181″ |
Equipped With
Equipped With
EQUIPPED WITH

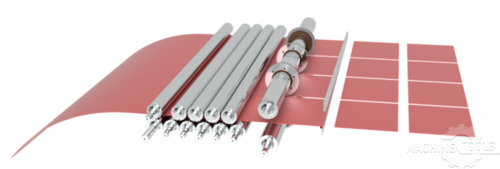

- 9 rolls for straightening
- 3 Sets of knives (additional knives available)

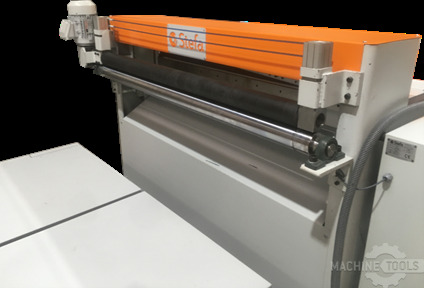

- Shear

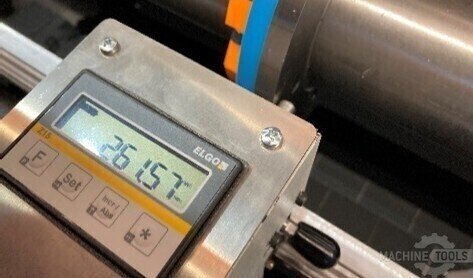

- Digital Ruler
- Radio Control
- Available options…

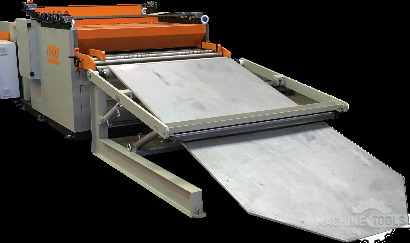

- Entry table

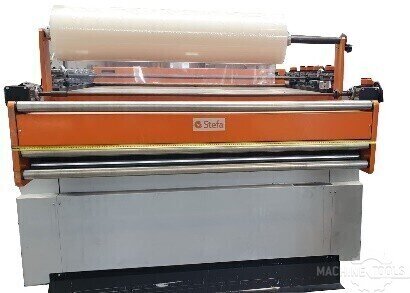

- Plasticizer unit model LC2 and LC3
- Strip Recoiler (scrap)

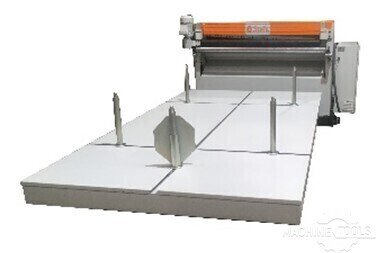

- Discharge Table 3m
- Discharge Table 6m
- Radio Control (entire line)
- High Speed Option (50m per minute)
Spec Sheet
Spec Sheet
SPEC SHEET
- Model LCS3
- Maximum thickness allowance Up to 3 mm (TS 45kg/mm²)
- Maximum Width of Steel Sheet 1550 mm
- Number of set rolls of straightener 9
- Diameter rolls straightener 138mm
- Number of Slitting Knives 3
- Diameter knives slitting 295 mm
- Speed Production up to 15m/min
- Equipment power 11kW (~V400 3ph+ N)
- Total Line power 15kW
- Tolerance on cut length +/- 1mm
- Tolerance on slitting cut +/- 0,5mm
- Tolerance on cross section +/- 0,2mm
