STEFA LCS1.5

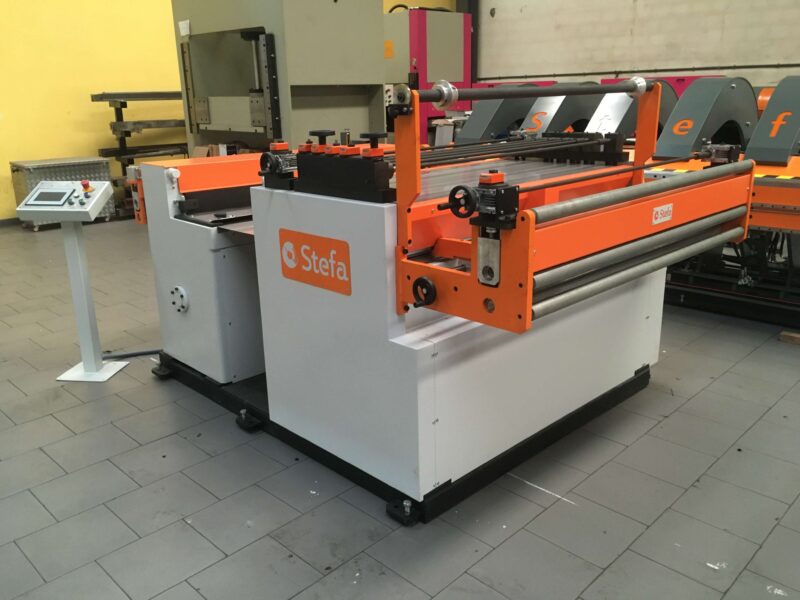

Stefa LCS 1.5 cut-to-length line with longitudinal slitting capabilities. Slitting is performed through penetration of rotating knives with vertical movement of the slitting shaft controlled by wheels equipped with millimeter indicators. Rotary knives are adjusted by free positioning and secured with an easy lock system by screw. The slitting area is protected by a metallic door with a safety sensor.
STEFA LCS1.5
Description
Description
Stefa LCS1.5 cut-to-length line with longitudinal slitting capabilities. Slitting is performed through penetration of rotating knives with vertical movement of the slitting shaft controlled by wheels equipped with millimeter indicators. Rotary knives are adjusted by free positioning and secured with an easy lock system by screw. The slitting area is protected by a metallic door with a safety sensor.
Specifications
Specifications
SPECIFICATIONS
- Model: LCS1.5
- Maximum Thickness Allowance: up to 1.5 mm (TS 45 kg/mm²)
- Maximum Width of Steel Sheet: 1550 mm
- Number of Straightener Rolls: 9
- Diameter of Straightener Rolls: 79 mm
- Number of Slitting Knives: 3
- Diameter of Slitting Knives: 183 mm
- Production Speed: up to 15 m/min
- Equipment Power: 7.5 kW (400V, 3-phase + N)
- Total Line Power: 11 kW
- Tolerance on Cut Length: +/- 1 mm
- Tolerance on Slitting Cut: +/- 0.5 mm
- Tolerance on Cross Section: +/- 0.2 mm
Equipped With
Equipped With
EQUIPPED WITH
- Slitting Unit with Rotating Knives
- Straightening System with 9 Rolls
Key Features
Key Features
KEY FEATURES
- Longitudinal Slitting via Rotating Knife Penetration
- Adjustable Slitting Shaft with mm Indicators
- Free Positioning of Knives with Screw Lock System
- Guarded Slitting Area with Safety Sensor
- Production Speeds up to 15 m/min
- Precision Cutting with Defined Tolerances
