STEFA LCAS1.5

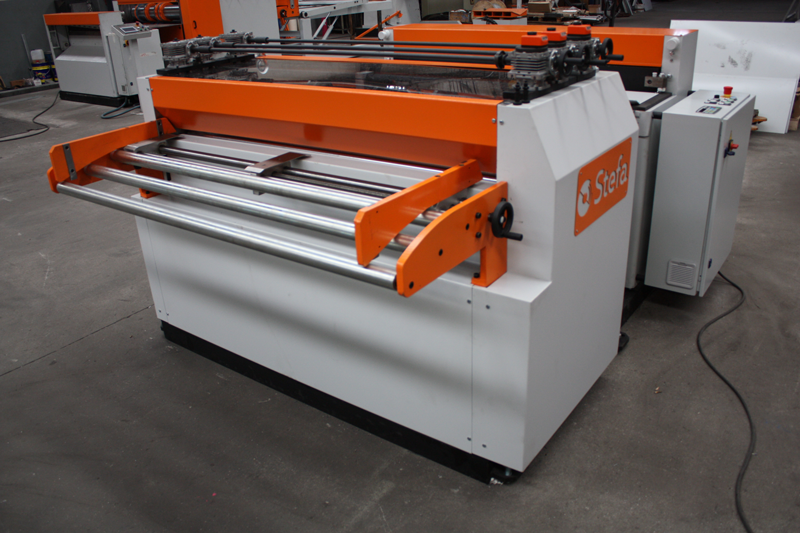

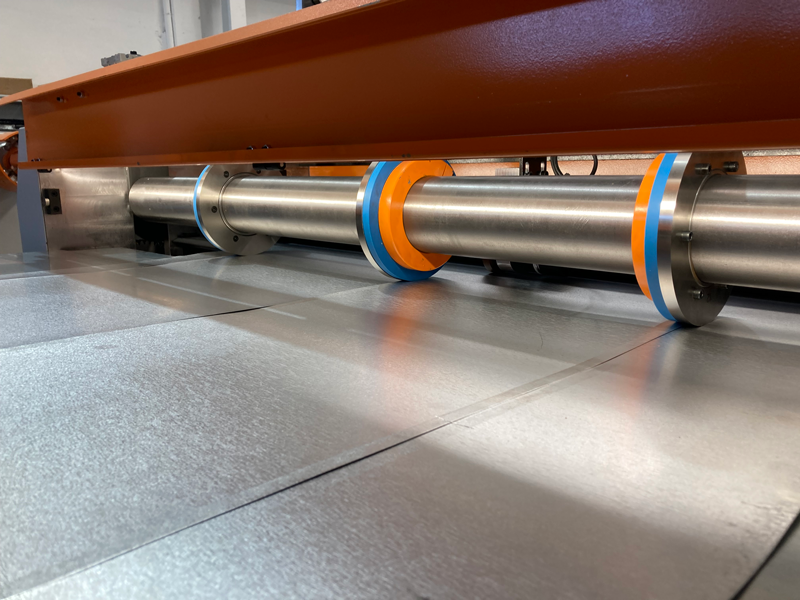

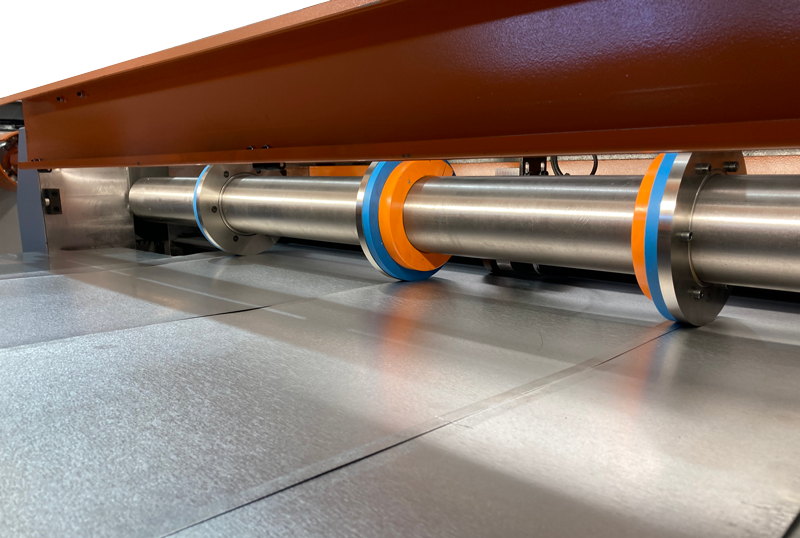

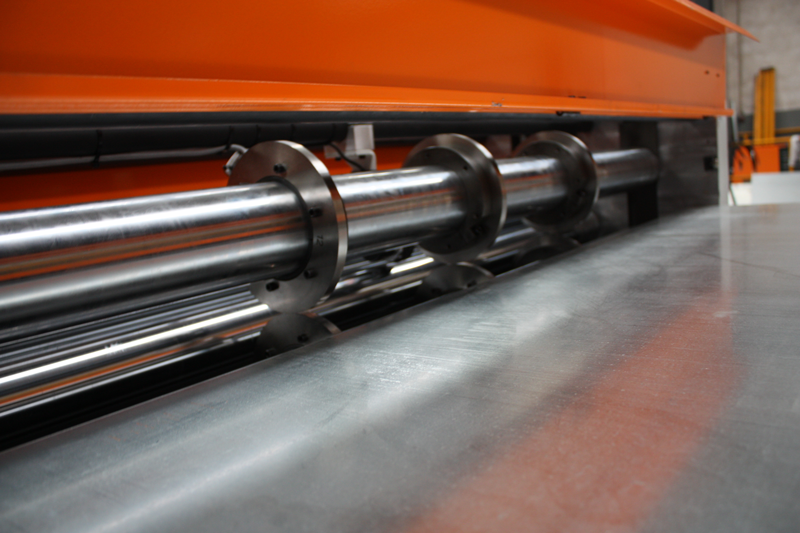

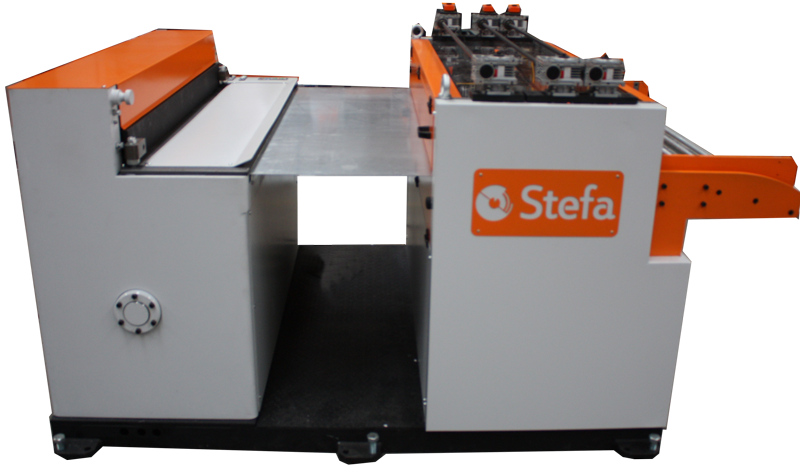

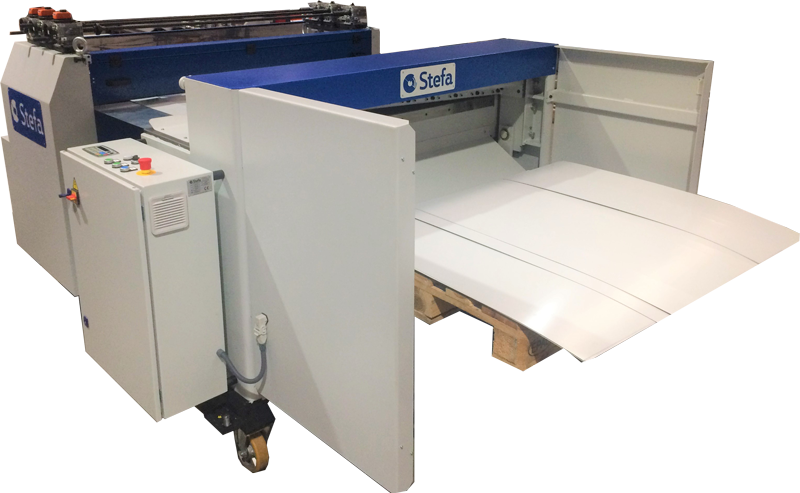

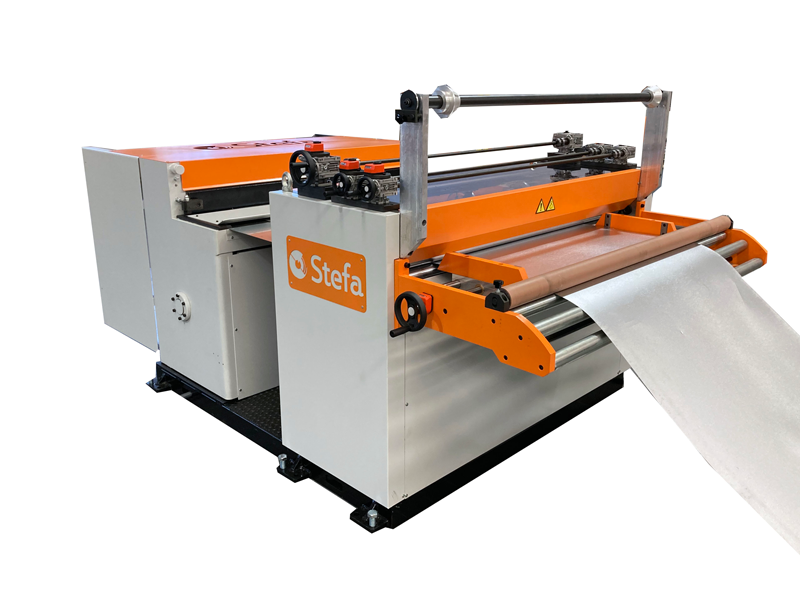

The Stefa LCAS 1.5 is a cut-to-length line featuring longitudinal slitting and transverse cutting capabilities. Longitudinal cutting is performed through penetration of rotating knives, with vertical movement of the slitting shaft controlled by wheels equipped with millimeter indicators for precise adjustment.
The rotary knives are adjusted by free positioning and secured with an easy lock system by screw. The slitting area is protected by a metallic door with a safety sensor. The system is also equipped with a mechanical shear capable of cutting up to 1.5 mm thickness, safeguarded by photoelectric barriers.
STEFA LCAS1.5
Description
Description
The Stefa LCAS1.5 is a cut-to-length line featuring longitudinal slitting and transverse cutting capabilities. Longitudinal cutting is performed through penetration of rotating knives, with vertical movement of the slitting shaft controlled by wheels equipped with millimeter indicators for precise adjustment.
The rotary knives are adjusted by free positioning and secured with an easy lock system by screw. The slitting area is protected by a metallic door with a safety sensor. The system is also equipped with a mechanical shear capable of cutting up to 1.5 mm thickness, safeguarded by photoelectric barriers.
Specifications
Specifications
SPECIFICATIONS
- Model: LCAS1.5
- Maximum Thickness Allowance: up to 1.5 mm (TS 45 kg/mm²)
- Maximum Width of Steel Sheet: 1550 mm

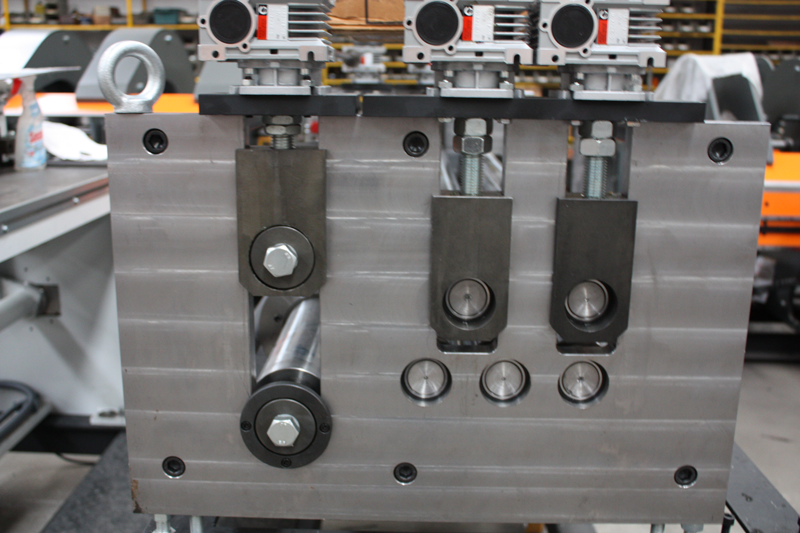

- Number of Straightener Rolls: 3
- Straightener Roll Diameter: 79 mm
- Number of Slitting Knives: 3
- Diameter of Slitting Knives: 180 mm
- Production Speed: up to 15 m/min
- Equipment Power: 4.5 kW (400V, 3-phase + N)
- Total Line Power: 10 kW
- Tolerance on Cut Length: +/- 1 mm
- Tolerance on Slitting Cut: +/- 0.5 mm
- Tolerance on Cross Section: +/- 0.2 mm
Equipped With
Equipped With
EQUIPPED WITH
- Slitting Unit with Rotating Knives
- Mechanical Shear (LCAS Model)
- Straightening System with 3 Rolls
Key Features
Key Features
KEY FEATURES
- Longitudinal Slitting via Rotating Knife Penetration
- Adjustable Slitting Shaft with mm Indicators
- Free Positioning of Knives with Screw Lock System
- Guarded Slitting Area with Safety Sensor
- Mechanical Shear with Photoelectric Safety Barriers
- Production Speeds up to 15 m/min
- Precision Cutting with Defined Tolerances
