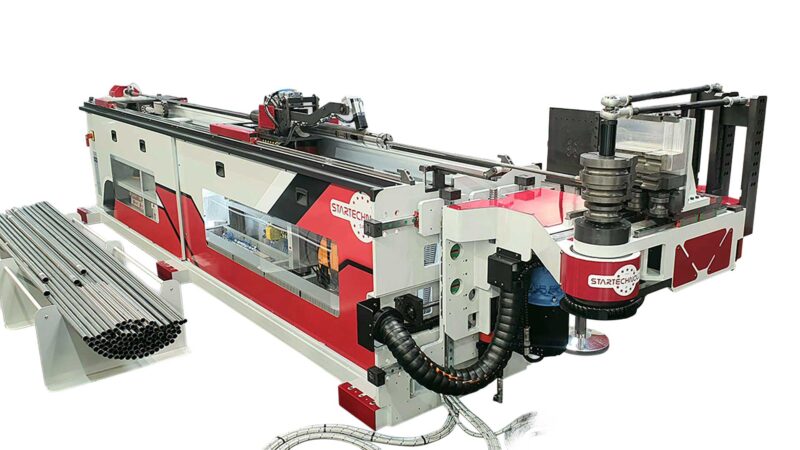

FULL BEND 450 SERIES
The Full Bend 450 Series from Star Technology is a fully electric CNC tube and pipe bending solution engineered for high-precision bending, advanced automation, and efficient production performance. Manufactured in Italy, the Full Bend 450 Series offers multiple automation levels and configurable machine layouts to support demanding tube fabrication applications across a wide range of industries.
FULL BEND 450 SERIES
Description
Description
The Star Technology Full Bend 450 Series is designed to deliver advanced fully electric CNC tube and pipe bending performance for manufacturers requiring precision, repeatability, and production efficiency. Built using advanced Italian engineering and decades of tube bending expertise, the Full Bend 450 Series combines intelligent automation, modern control technology, and flexible machine architecture to support a broad range of industrial tube bending applications.
Available in multiple configurations and automation levels, the Full Bend 450 Series can be customized to meet varying production requirements, material handling needs, and bending applications. The machine features Star Technology’s exclusive STI control system with graphical interface programming, integrated 3D simulation capabilities, and advanced file import functionality for simplified setup and operation. Designed for accurate and repeatable bending performance, the Full Bend 450 Series is ideal for metal furniture, industrial plant engineering, agriculture, marine, automotive, aerospace, and industrial manufacturing applications.
Spec Sheet
Spec Sheet
SPEC SHEET
Specifications & Configurations May Vary Depending on Full Bend 450 Model & Automation Level
- Maximum Mild Steel Tube Capacity: 45 x 3 mm
- Maximum Stainless Steel Tube Capacity: 35 x 2 mm
- Maximum Aluminum/Copper Tube Capacity: 50 x 3 mm
- Maximum Bending Radius: 240 mm
- Useful Length on Clamp: 3,000 mm
- Useful Length on Mandrel: 4,400 mm
- Maximum Bar Passage Diameter: 45 mm
- Head Clearance Radius: 125 mm
- Power Supply: 400/800 V
- Operating Frequency: 50/60 Hz
- Maximum Power: 18/27 kW
- Approximate Machine Weight: 3,400 kg
- Fully Electric CNC Bending Technology
- Left or Right Bending Capability
- Integrated 3D Part Simulation
- File Import Programming Capability
- Brushless Servo-Controlled Axes
- Made in Italy
- ISO 9001:2008 Certified System
Equipped With
Equipped With
EQUIPPED WITH
- STI Exclusive Machine Control System
- Simplified Graphical User Interface
- Integrated 3D Tube Simulation Software
- File Import Programming Capability
- Fully Electric Servo-Controlled Bending Axis
- Brushless Servo Axis Control
- Hydraulic Clamp System
- Hydraulic Shoulder System
- Hydraulic Mandrel System
- Pneumatic Following System
- Pneumatic Die Return System
- Left or Right Bending Capability
- Multiple Full Bend 450 Series Configurations Available
- Configurable Automation Layouts
- ISO 9001:2008 Certified System
Key Features
Key Features
KEY FEATURES
- Fully Electric CNC Tube & Pipe Bending Technology
- Multiple Full Bend 450 Series Configurations Available
- Available With Multiple Automation Levels
- Accurate & Repeatable Bending Performance
- Integrated 3D Bending Simulation
- Fast Programming Through File Import Functionality
- Brushless Servo-Driven Axis Movement
- Reduced Energy Consumption
- Supports Multiple Tube Materials & Profiles
- Reduced Setup & Changeover Time
- Designed for High-Production Manufacturing Environments
- Ideal for Automotive, Marine, Aerospace, Agriculture, & Industrial Applications
- Engineered & Manufactured in Italy
- Energy Saving System Reducing Absorbed Power Consumption
