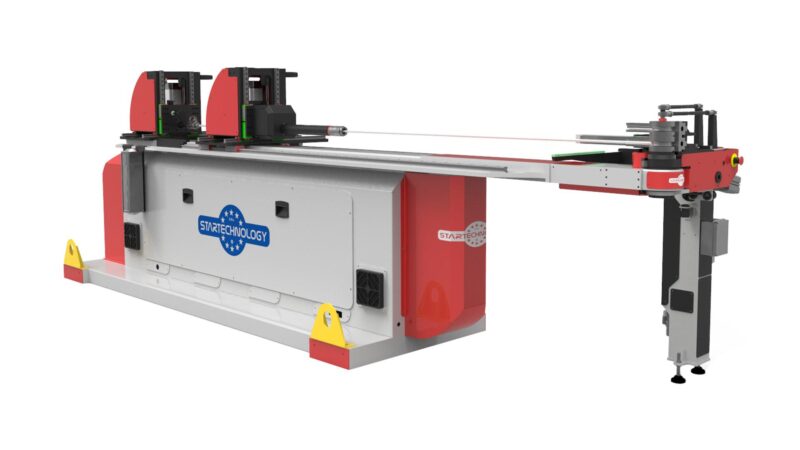

EVO BEND 250 SERIES
The Star Technology EVO BEND 250 series is a high-performance line of CNC tube and pipe bending machines designed to deliver precision, flexibility, and efficient production for a wide range of tube bending applications. Engineered and manufactured in Italy, the EVO BEND 250 series offers multiple configurations and automation levels to support varying production requirements and bending applications.
EVO BEND 250 SERIES
Description
Description
The Star Technology EVO BEND 250 series is designed to provide advanced CNC tube and pipe bending performance for manufacturers requiring precision, flexibility, and reliable productivity. Built in Italy using over 40 years of tube bending expertise, the EVO BEND 250 platform combines modern automation technology, user-friendly controls, and configurable machine layouts to support a wide variety of tube fabrication applications.
Available in multiple configurations with varying axis combinations and automation levels, the EVO BEND 250 series can be tailored to meet different production requirements and material handling needs. The machine incorporates the exclusive STI control system with a 21.5″ multitouch B&R industrial console, integrated 3D simulation capabilities, and advanced programming functionality for efficient setup and operation. Designed for accuracy, repeatability, and production efficiency, the EVO BEND 250 series is ideal for automotive, HVAC, furniture, agriculture, marine, construction, and industrial manufacturing applications.
Spec Sheet
Spec Sheet
SPEC SHEET
Specifications & Configurations May Vary Depending on EVO BEND 250 Model & Automation Level
- Maximum Mild Steel Tube Capacity: 25 x 3 mm
- Maximum Stainless Steel Tube Capacity: 20 x 2 mm
- Maximum Aluminum/Copper Tube Capacity: 30 x 3 mm
- Maximum Bending Radius: 180 mm
- Useful Length on Clamp: 2,100 mm
- Useful Length on Mandrel: 3,500 mm
- Maximum Bar Passage Diameter: 28 mm
- Head Clearance Radius: 90 mm
- Power Supply: 400/800 V
- Operating Frequency: 50/60 Hz
- Maximum Power: 10/15 kW
- Approximate Machine Weight: 2,900 kg
- Left or Right Bending Capability
- 21.5″ Multitouch B&R Control Console
- i5 Processor With 16 GB RAM
- Integrated 3D Part Simulation
- File Import Programming Capability
- Brushless Servo-Controlled Axes
- Hydraulic & Pneumatic Axis Integration
- Made in Italy
- ISO 9001:2008 Certified System
Equipped With
Equipped With
EQUIPPED WITH
- STI Exclusive Machine Control System
- Simplified Graphical User Interface
- 21.5″ Industrial Multitouch Screen
- B&R Console With i5 Processor
- 16 GB RAM Industrial Control Platform
- Integrated 3D Tube Simulation Software
- File Import Programming Capability
- Brushless Servo Bending Axis
- Hydraulic Clamp System
- Hydraulic Shoulder System
- Hydraulic Mandrel System
- Pneumatic Tube Support
- Pneumatic Die Return System
- Pneumatic Mandrel Movement
- Pneumatic Position Movement
- Left or Right Bending Capability
- Multiple EVO BEND 250 Series Configurations Available
