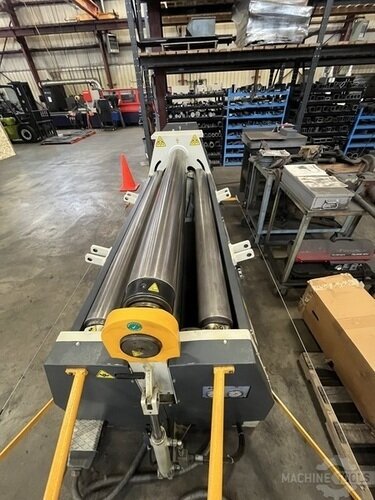

SAHINLER 4R HS 20-190

Description

• Four-roll design and construction.
• Compact design for minimal floor space.
• Welded, all-steel, heavily proportioned, thermally stress-relieved frame and drop end.
• Roll shafts journaled in radial bearings Induction-hardened SAE 1050 steel bars, hardened to 58 – 60 Rockwell C are used for the rolls.
• Rolls are precisely machined with crowning to compensate for deflection under load Fully hydraulic.
• Two-roll drive.
• The upper and lower central rolls are driven from a central hydraulic system, equipped with overload protection, by a hydraulic motor through a planetary gearbox
• The lower central roll and the two side bending rolls are hydraulically and individually adjustable and tiltable
• Each side roll is adjustable hydraulically and independently to provide double pre-bending; therefore each end of the workpiece can be prebent and then rolled with only one insertion of the workpiece into the machine
• Orbital movement of the side rolls (with hydraulic pistons) for faster rolling and easier prebending of light to medium capacities
• Dual rolling speeds Hydraulic balancing system for rolls parallelism

Specifications

Equipped With

Equipped With

• Two-roll drive. The upper and lower central rolls are driven by a hydraulic motor through a planetary gearbox Induction hardened and crowned rolls
• Hydraulic adjustment of the lower central roll and of the side rolls, each independently
• Hydraulic drop end for easy removal of the completed cylinder
• Hydraulic system complete with controls
• Orbital movement of the side rolls Dual rolling speeds
• Hydraulic balancing system for parallelism of the rolls
• Manual central lubrication
• Cone bending attachment
• Operating controls in a rolling console for all functions including adjustment of the lower and side rolls, for paralleling and tilting the side rolls (for cone rolling) and for operation of the drop end.
• 3 – Electronic digital readouts (LED) for the positions of the side rolls and the lower central roll are mounted in the rolling control console, each with programmable roll position pre-set and memory.
• Electric motor and controls. Electrics for 3/60/220/440.
• Low voltage at the controls. Overload and under voltage protection.
• Emergency stop wires at the front and rear of the machine.
• Hydraulics by Rexroth, Bosch, Duplomatic or Parker.
• Electrics by Siemens, NAIS or Telemecanique.
• Bearings by FAG and SKF.

Spec Sheet

Spec Sheet

• Circular Bending to diameters 5 times upper roll diameter and larger 6’ x 5/16”
• Circular Bending to diameters 1-1/2 times upper roll diameter and larger 6’ x 1/4”
• Prebending to diameters 5 times upper roll diameter and larger 6’ x 1/4”
• Prebending to diameters 1-1/2 times upper roll diameter and larger 6’ x 5/32”
• With prebending, resulting flat ends are 1-1/2 to 2 times plate thickness or less.
• Proportional capacities in other material, widths and thicknesses.
• Cone bending capacity is 50% of each width and thickness capacities.

Features:

• Four-roll design and construction. Compact design for minimal floor space.
• Welded, all-steel, heavily proportioned, thermally stress-relieved frame and drop end.
• Roll shafts journaled in radial bearings.
• Induction-hardened SAE 1050 steel bars, hardened to 58 – 60 Rockwell C are used for the rolls. Rolls are precisely machined with crowning to compensate for deflection under load.
• Fully hydraulic. Two-roll drive. The upper and lower central rolls are driven from a central hydraulic system, equipped with overload protection, by a hydraulic motor through a planetary gearbox.
• The lower central roll and the two side bending rolls are hydraulically and individually adjustable and tiltable. Each side roll is adjustable hydraulically and independently to provide double pre-bending; therefore each end of the workpiece can be prebent and then rolled with only one insertion of the workpiece into the machine.
• Orbital movement of the side rolls (with hydraulic pistons) for faster rolling and easier prebending of light to medium capacities.
• Dual rolling speeds.
• Hydraulic balancing system for rolls parallelism.
• Robust drop end, hydraulically operated.
• Controls for all functions and electronic digital readouts in a rolling console.
• Cone bending attachment is standard equipment; and the side rolls can be tilted for more effective cone rolling, after which they can be easily paralleled for normal bending.
• All the advantages of asymmetrical, pyramid and double-pinch bending.
• 3 – Electronic digital readouts (LED) for the positions of the side rolls and the lower roll, each with programmable roll position pre-set and memory.
• Components are from world-renowned sources.
• Pre-arranged for easy retro-fit of overhead and side support devices if required after machine has been put into operation.
• Built according to stringent European standards for design, production and quality and bearing the CE-Mark of certification

Specifications:

• Overall working length of the rolls – 80.7”
• Diameters of the upper and lower central rolls – 7.48”
• Diameter of each side roll – 5.91”
• Rolling speeds, dual – 5 and 19-1/2 FPM
• Motor HP – 7
• Dimensions, L x W x H, excluding control console – 174” x 42” x 50”
• Weight – 7,700#

Standard Equipment:

• Two-roll drive. The upper and lower central rolls are driven by a hydraulic motor through a planetary gearbox.
• Induction hardened and crowned rolls.
• Hydraulic adjustment of the lower central roll and of the side rolls, each independently.
• Hydraulic drop end for easy removal of the completed cylinder.
• Hydraulic system complete with controls.
• Orbital movement of the side rolls.
• Dual rolling speeds.
• Hydraulic balancing system for parallelism of the rolls.
• Manual central lubrication.
• Cone bending attachment.
• Operating controls in a rolling console for all functions including adjustment of the lower and side rolls, for paralleling and tilting the side rolls (for cone rolling) and for operation of the drop end.
• 3 – Electronic digital readouts (LED) for the positions of the side rolls and the lower central roll are mounted in the rolling control console, each with programmable roll position pre-set and memory.
• Electric motor and controls. Electrics for 3/60/220/440. Low voltage at the controls.
• Overload and under voltage protection. Emergency stop wires at the front and rear of the machine.
• Hydraulics by Rexroth, Bosch, Duplomatic or Parker. Electrics by Siemens, NAIS or Telemecanique.
• Bearings by FAG and SKF. 2 – Operating Manual/Parts List
