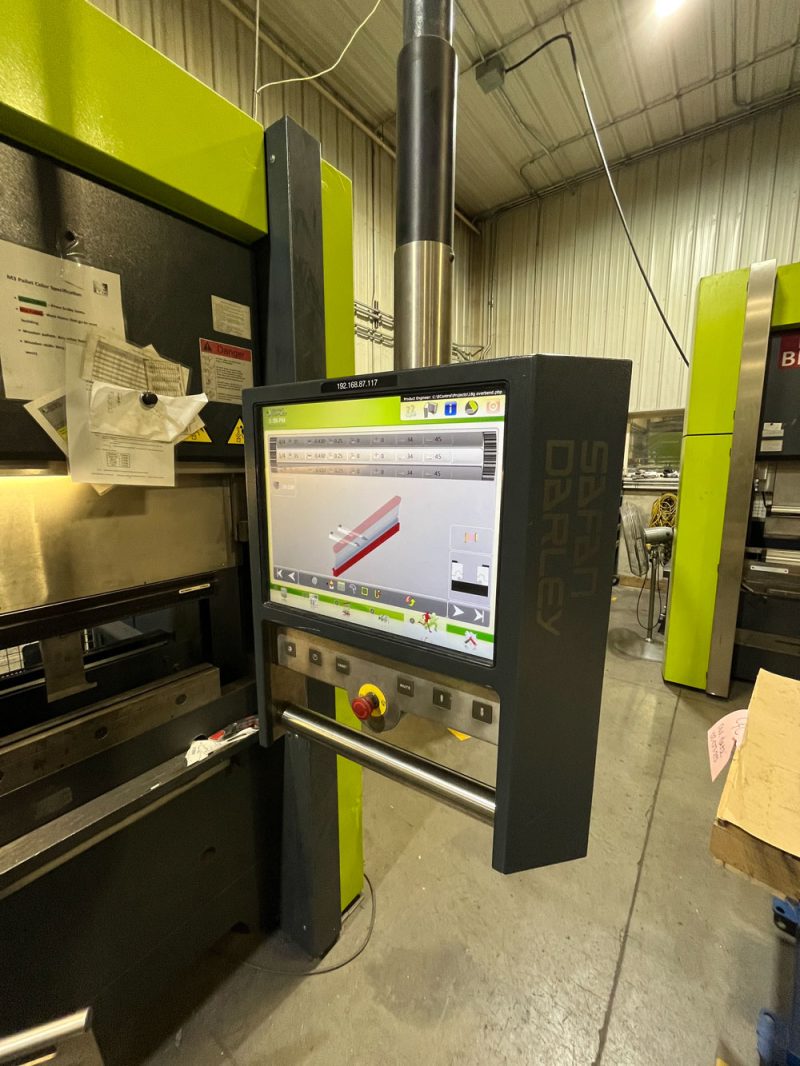

Safan Darley E-BRAKE B press brake control panel

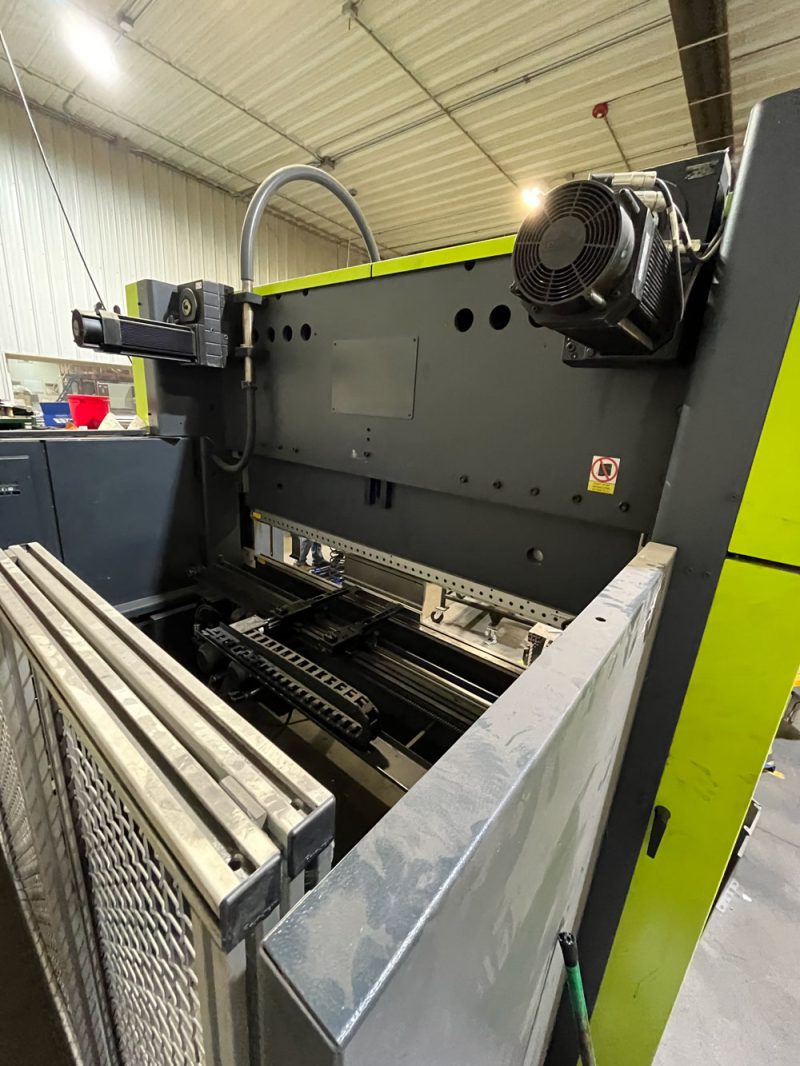

Safan Darley E-BRAKE B press brake catch-side view
Safan Darley E-BRAKE B press brake control panel

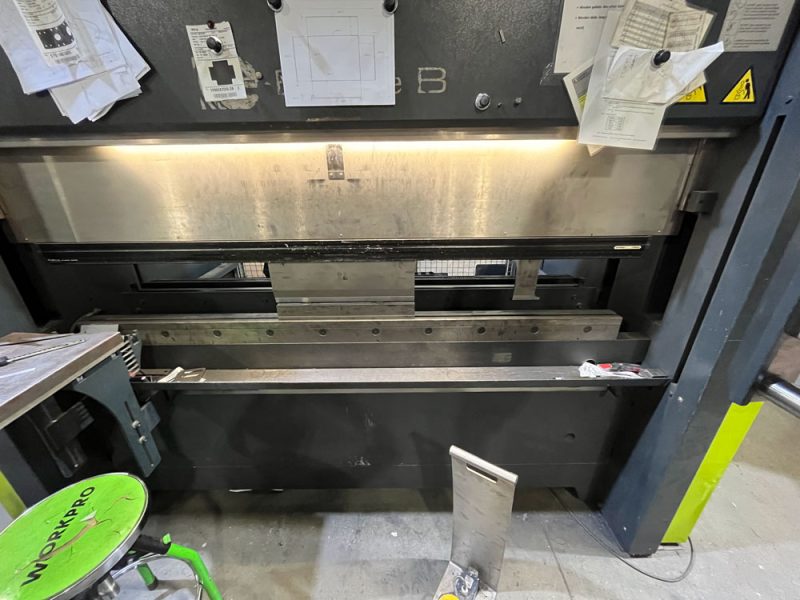

Front opening of a Safan Darley E-BRAKE B press brake with tooling area and safety light strip.

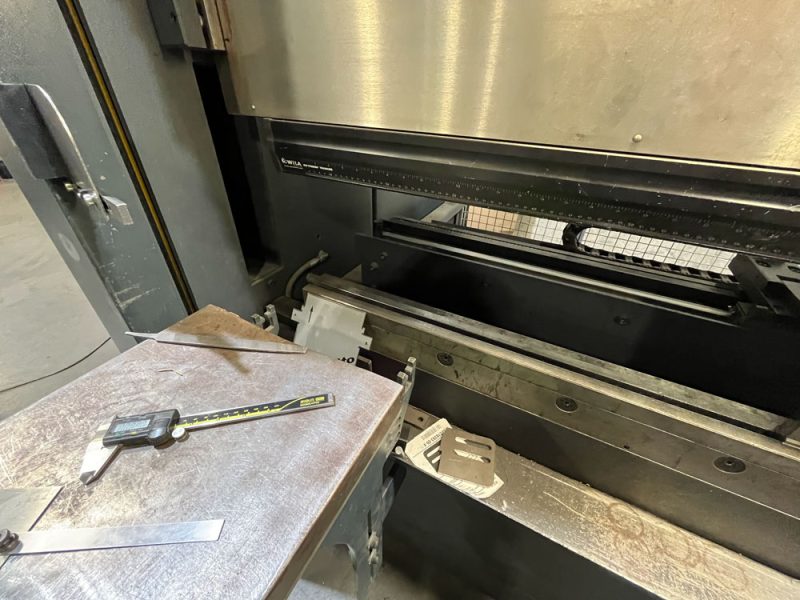

Safan Darley E-BRAKE B press brake tooling

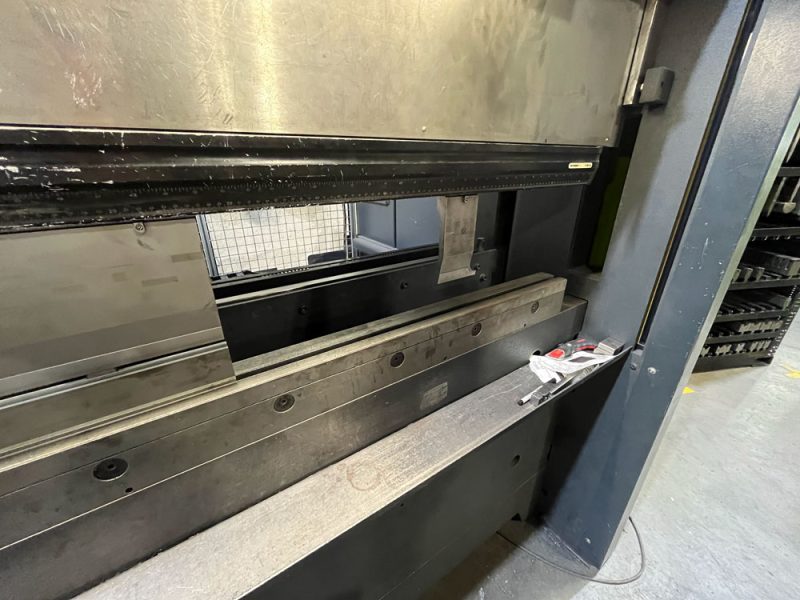

Safan Darley E-BRAKE B press brake tooling

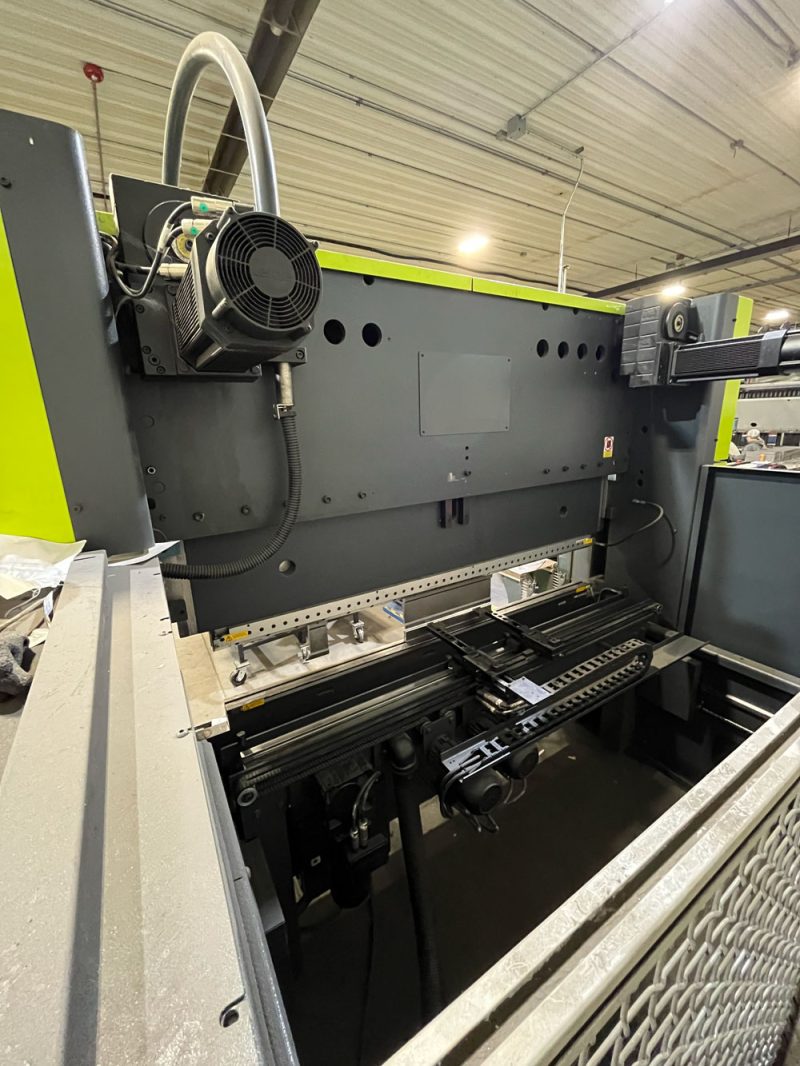

Rear view of a Safan Darley E-BRAKE B press brake showing the backgauge and motor housing.

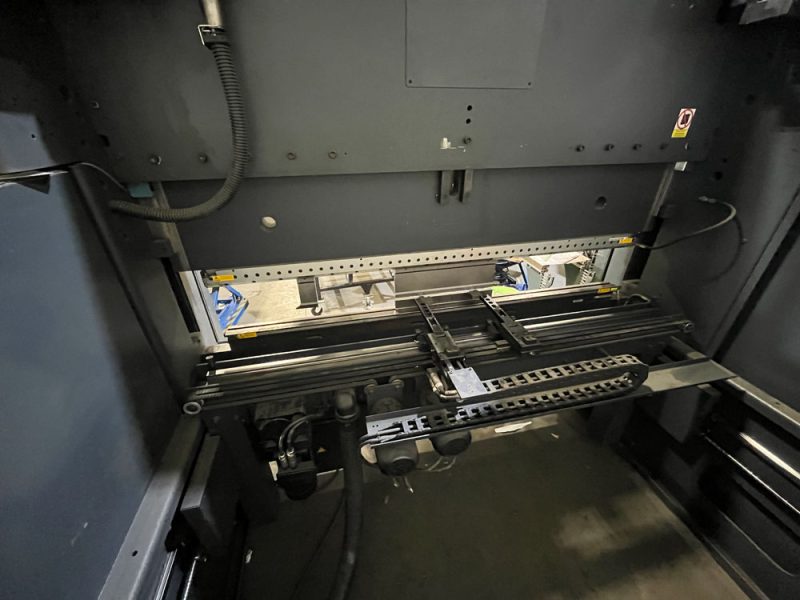

Interior detail of a Safan Darley E-BRAKE B press brake showing the backgauge area.

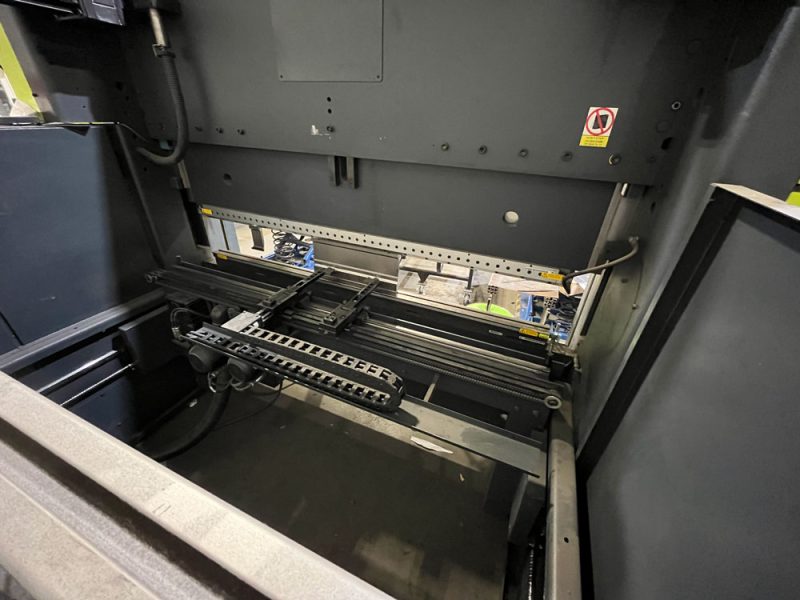

Interior detail of a Safan Darley E-BRAKE B press brake showing the tooling and backgauge area.
Used Machines

SAFAN DARLEY E-BRAKE B 50-2050

Brand – SAFAN DARLEY
Model – E-BRAKE B 50-2050
Type – Press Brakes
Year – 2015
Condition – Used – Excellent

Get a Quote

Categories: , Tags: ,

SAFAN DARLEY E-BRAKE B 50-2050

Description

Description

Brand – SAFAN DARLEY
Model – E-BRAKE B 50-2050
Type – Press Brakes
Year – 2015
Condition – Used – Excellent

Learn More

Specifications

Specifications

Tonnage 55 T
Type ELE
Overall Length 119.3″
Between Housings 81″
Stroke 11.81″
Dimensions 120″ L x 70″ W x 117″ H
Weight 10472 lb
Control CNC (EC20)

Equipped With

Equipped With

Upgraded EC20 Control,
Light Curtains,
CNC Controlled X-Axis, R-Axis & Y1/Y2 Axis,
Top Tool Adapter NSCL I Pro MC w/hyd tool clamp,
Table OB/S-3 Pro MC w/hyd tool clamp,
Z1+ Z2 Axis – CNC Programmable movement of the back gauge fingers independently adjustable parallel on the tools,
Back Gauge finger dX adjustment on the right finger Stroke 100mm (+/- 50mm) incl. set hardened stops for 3D type back gauge,
Aluminum Front Sheet Support Arms w/brushes 750mm length 25kg max load per arm,
Airco Chiller

Spec Sheet

Spec Sheet

E-Brake B 50-2050

Length (in.) – Overall 119.3

Length – Between Housings (in) 80.70

Maximum Tonnage 55

Shut Height (in.) 11.41

Stroke Length (in.) 11.81

Open Height (in.) 23.22
