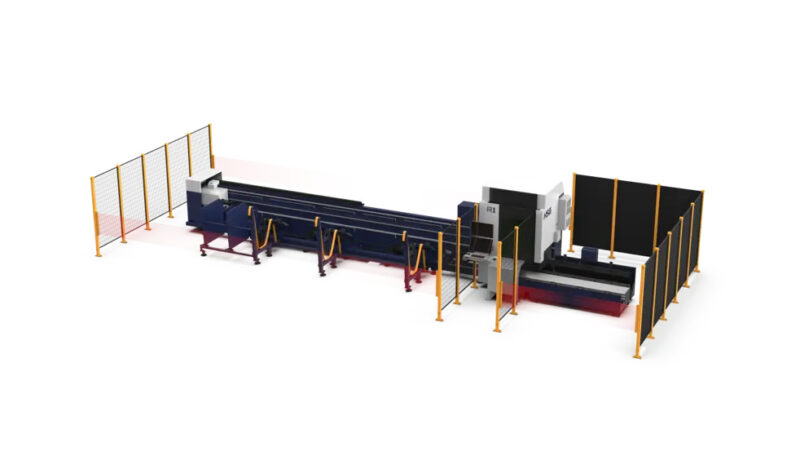

R1 3KW FIBER TUBE LASER CUTTING MACHINE
R1 3KW FIBER TUBE LASER CUTTING MACHINE
Description
Description
Equipped With
Equipped With
EQUIPPED WITH
- 3 kW Raycus Fiber Laser Source
- HSG Laser Cutting Head
- HSG-X CNC Control
- Automatic Centering Chucks
- R1-AL65-A Automatic Tube Loader

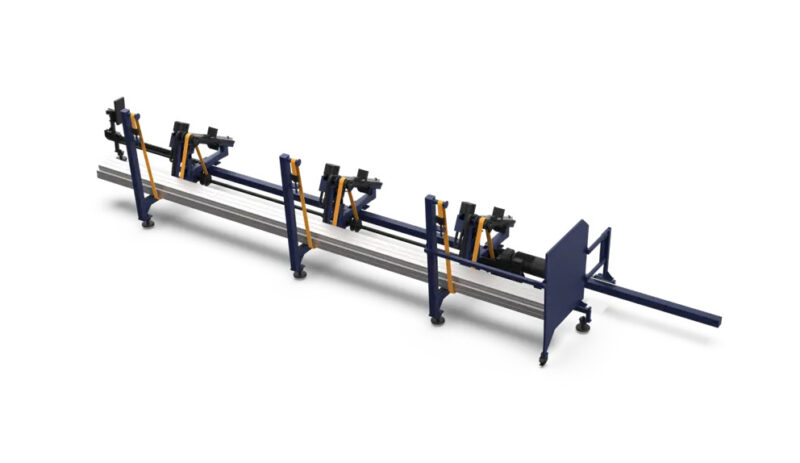

- Follow Unloading System
- Seam Detection System
- Automatic Material Handling
- Integrated Nesting Software
- Water Chiller
- Dust Collector
- Transformer & Voltage Stabilizer
- Safety Light Barriers
- Laser AC Enclosure
Spec Sheet
Spec Sheet
SPEC SHEET
- Model: HSG R1
- Laser Power: 3 kW
- Laser Source: Raycus
- Cutting Head: HSG
- CNC Control: HSG-X
- Tube Length Range: 1,000–6,500 mm
- Round Tube Capacity: Ø8–120 mm
- Square Tube Capacity: 8 x 8–120 x 120 mm
- Rectangular Tube Capacity: 8–120 mm per Side
- Angle Capacity: 20 x 20–80 x 80 mm
- Channel Capacity: 50 x 37–80 x 43 mm
- I-Beam Capacity: 50 x 37–80 x 50 mm
- Maximum Tube Weight: Approx. 80 kg
- Chuck Speed: Up to 150 RPM
- Maximum Linkage Speed: 150 m/min
- Maximum Acceleration: 1.5G
- Positioning Accuracy: ±0.05 mm/m
- Repeatability: ±0.03 mm
- Automatic Loader: R1-AL65-A
- Loader Round Tube Capacity: 15–100 mm
- Loader Square Tube Capacity: 15 x 15–100 x 100 mm
- Loader Rectangular Tube Capacity: Up to 100 mm per Side
- Loader Length Range: 4,800–6,500 mm
- Maximum Individual Loading Weight: 50 kg
- Loader Storage Capacity: Up to 1.5 Tons
