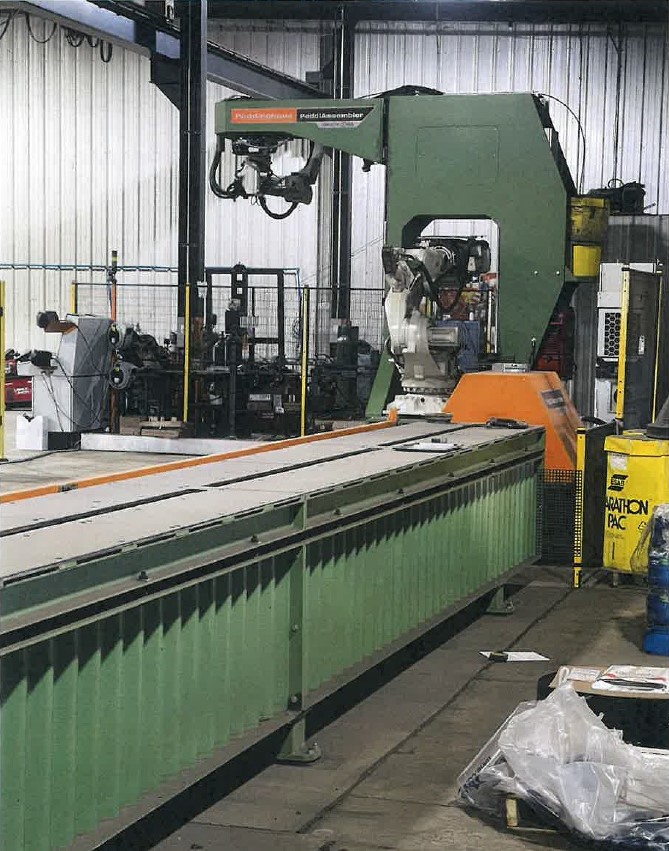

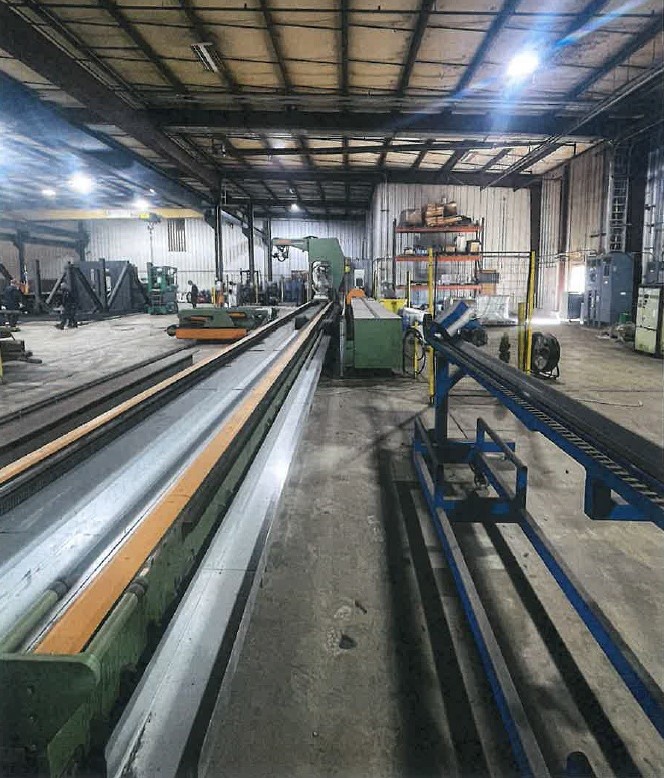

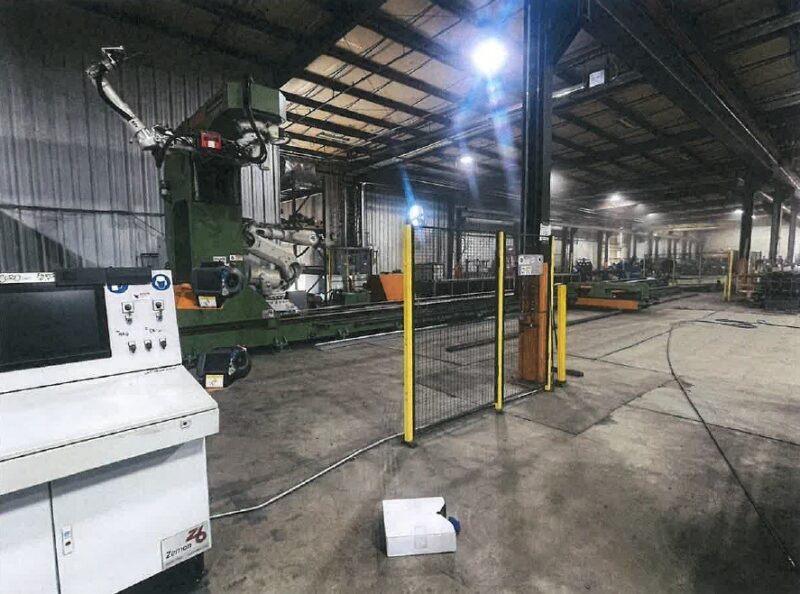

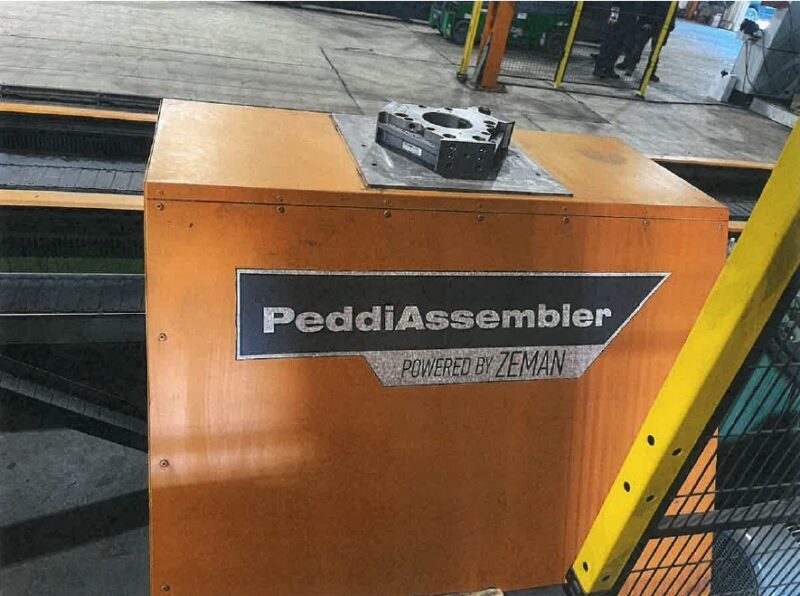

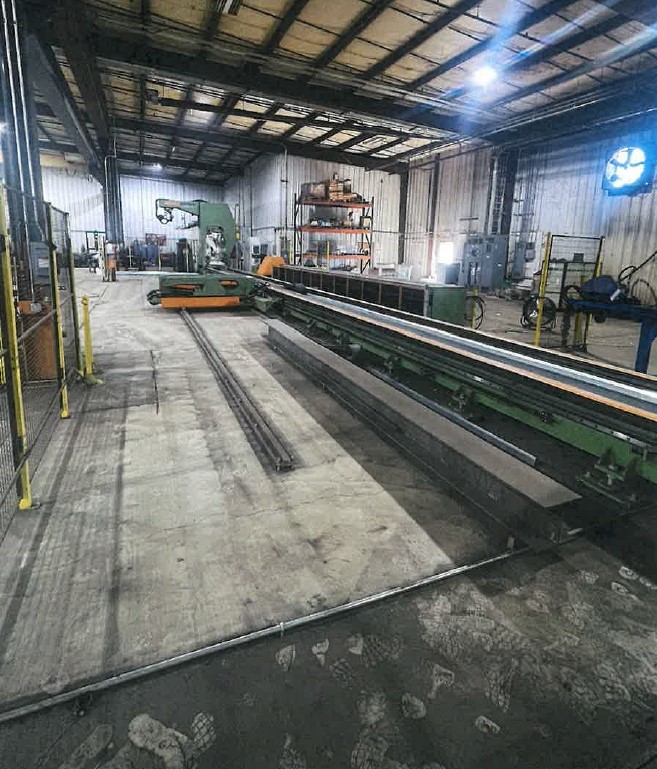

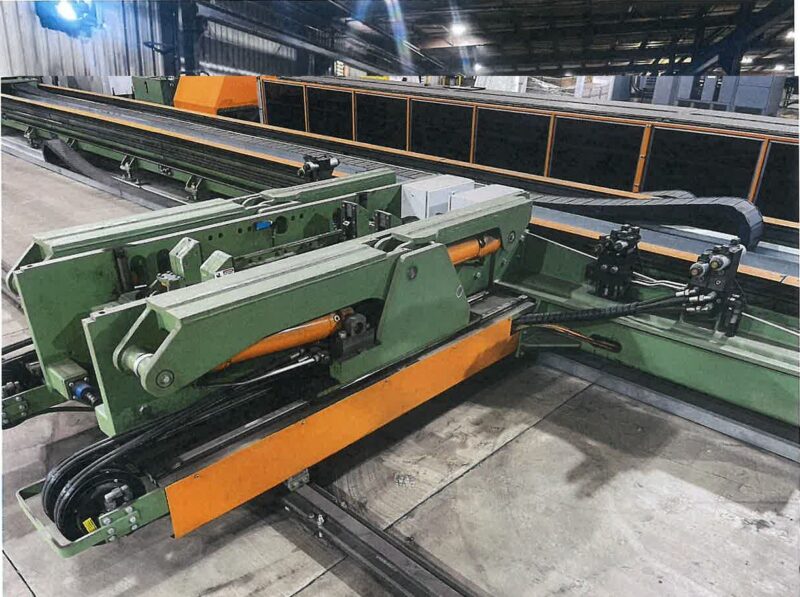

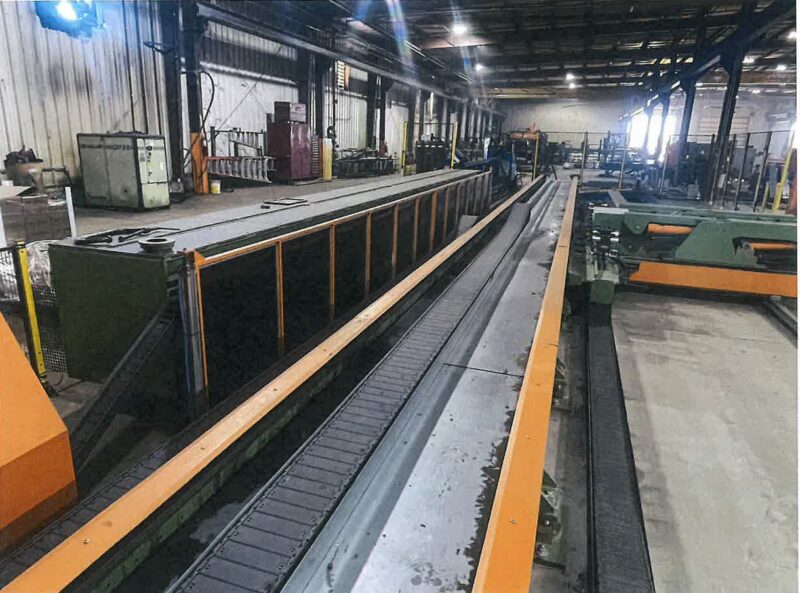

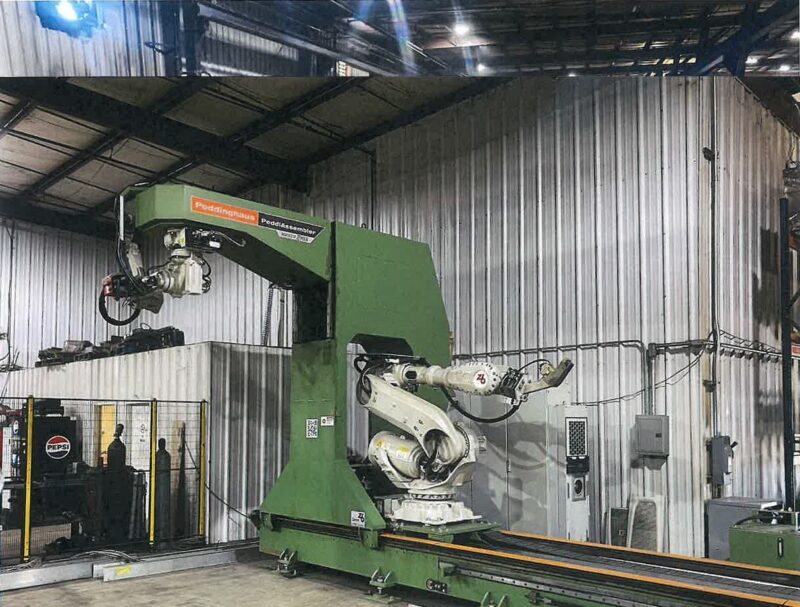

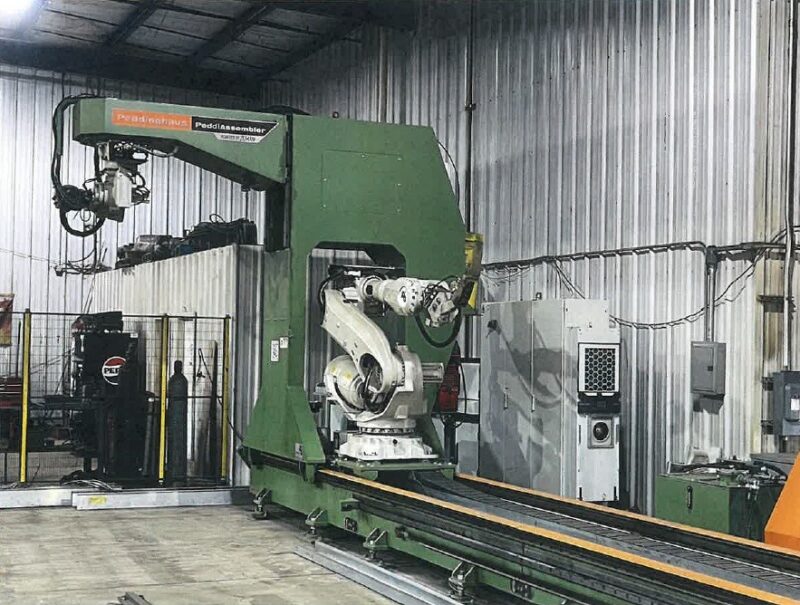

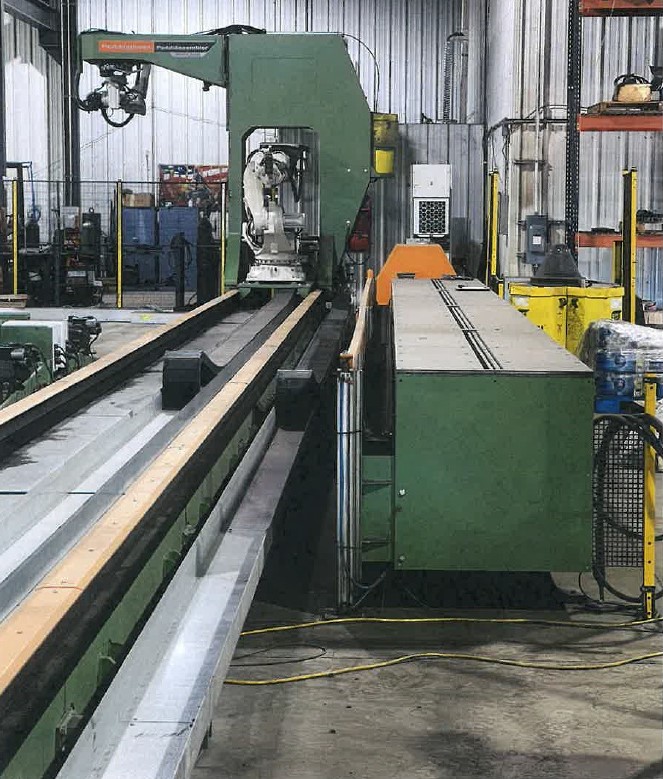

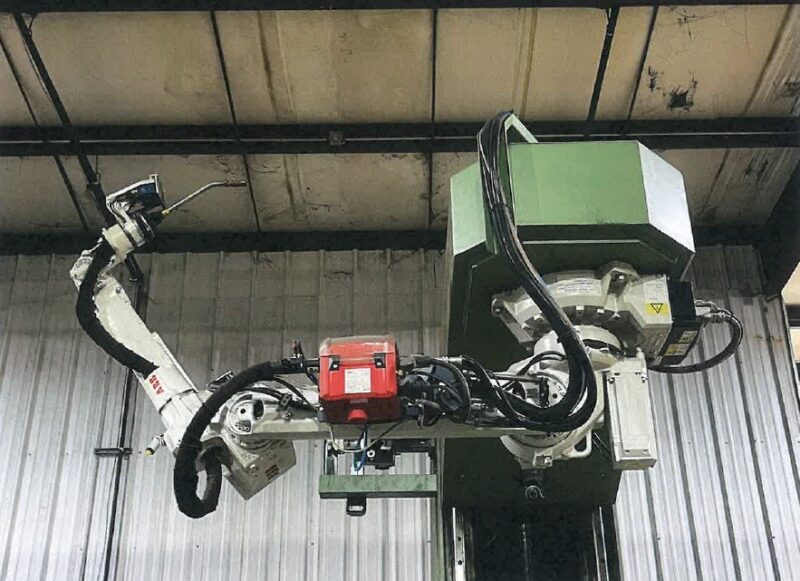

PEDDINGHAUS PEDDIASSEMBLER

Description

Specifications

SPECIFICATIONS

Machine Information

• Current Machine Hours: 687

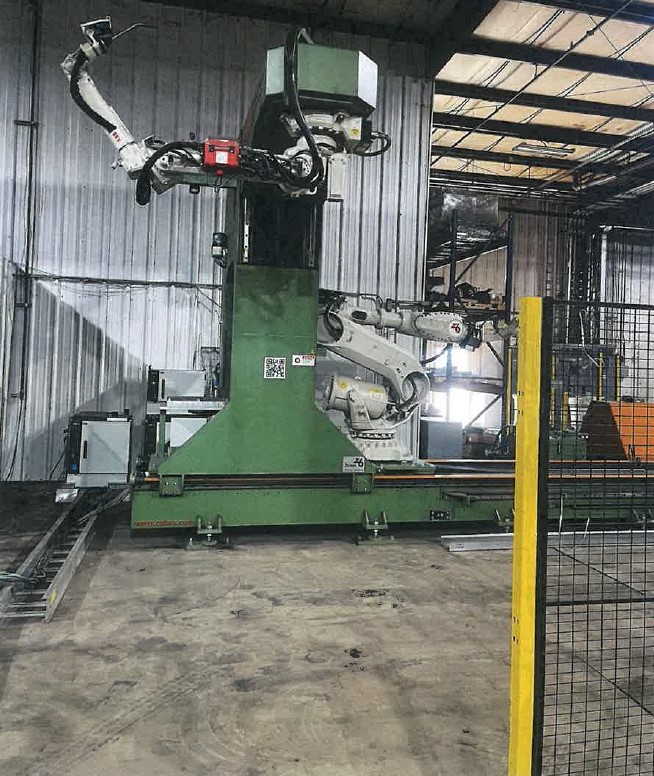

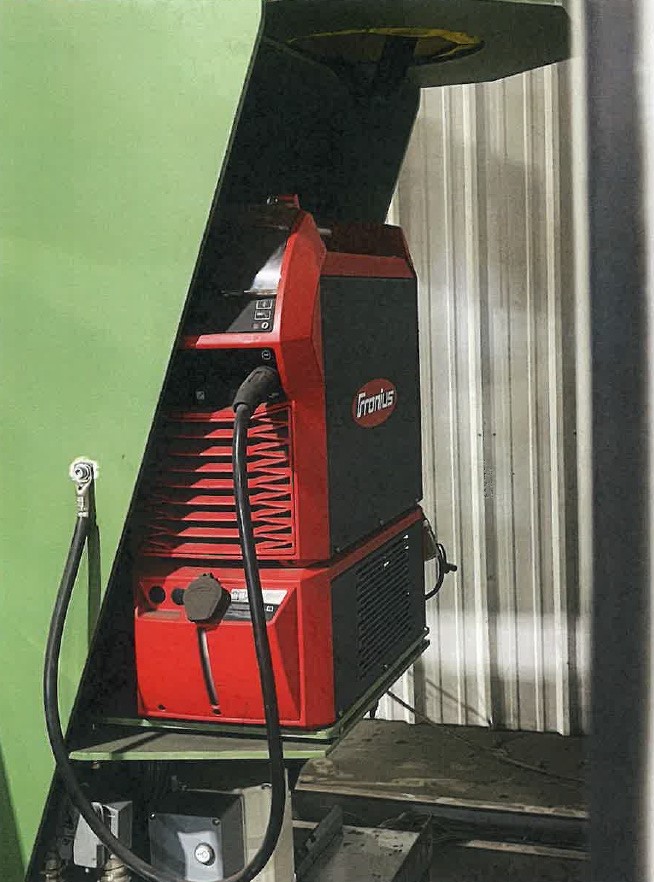

• Type of Welding: MAG

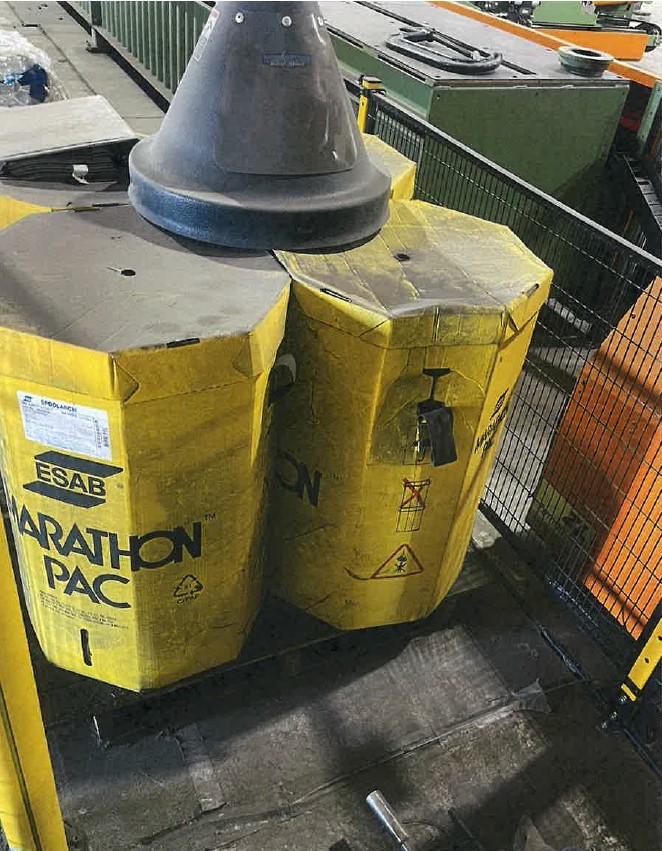

• Welding Wire: G3Si1

• Single-Layer Welding Seam Sizes: a3 – a6 (0.12″ – 0.24″)

• Multi-Layer Welding Seam Sizes: a8 – a15 (0.31″ – 0.59″)

• Overall Machine Dimensions: Length 79.4 ft (expandable to 89.2 ft / 99.1 ft), Width 26.9 ft, Height 14.8 ft

• Material Processing: 4 Sides

• Scanning Speed: 9.8 in/sec

• Maximum Material Weight: 11,023 lbs

• Maximum Material Length: 39.4 ft (expandable to 49.2 ft / 59.1 ft)

Materials & Main Profile Dimensions

• H-Beam: Height 3.15–15.75 in, Width 5.91–29.92 in, Length 3.15–708.66 in

• U-Channel: Height 3.15–4.33 in, Width 8.66–15.75 in, Length 3.15–708.66 in

• Rectangular: Height 3.15–11.81 in, Width 3.15–19.69 in, Length 3.15–708.66 in

• Tube: Height 3.15–11.81 in, Width 3.15–11.81 in, Length 3.15–708.66 in

Part Dimensions

• H-Beam: Height 3.15–9.84 in, Width 3.15–9.84 in, Length 3.15–19.69 in

• U-Channel: Height 3.94–15.75 in, Width 2.76–4.72 in, Length 3.94–19.69 in

• Tube: Height 2.76–7.87 in, Width 2.76–7.87 in, Length 2.76–19.69 in

• Angle: Height 2.36–7.09 in, Width 2.36–7.09 in, Length 2.36–39.37 in

• Plate: Height 1.97–31.5 in, Width 3.94–39.37 in, Length 1.97–2.36 in

Technical Specifications

• Pneumatic Supply: 8 bar [116 psi], 50 L/min (400 NL), 1/2″ connection

• Shielding Gas Connection: M21-ArC-18 / EN ISO 14175, 5 bar [73 psi], 1.1 m³ (3/8″) [39 ft³/h]

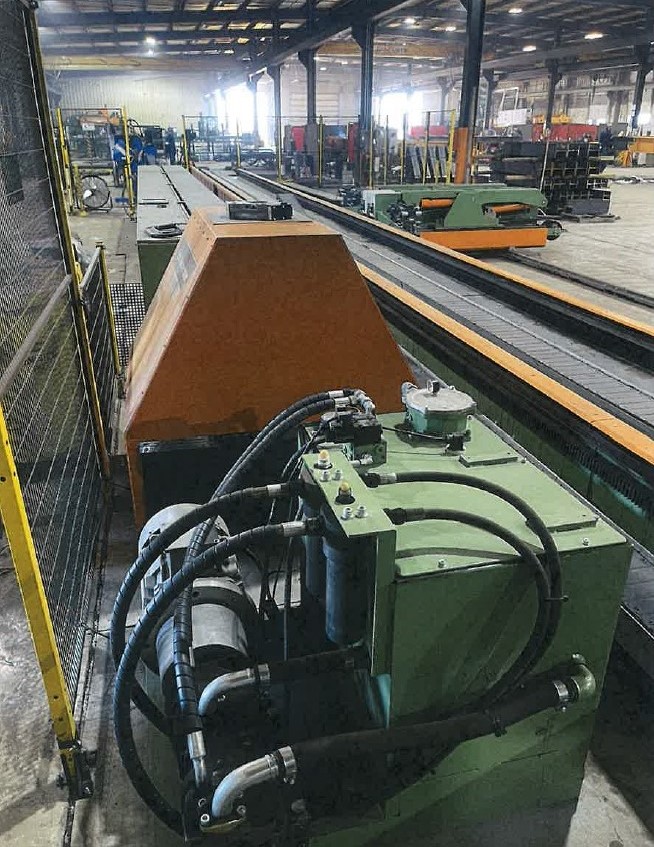

• Hydraulic Supply: 160 bar [2,321 psi]

• Hydraulic Tank Capacity: 200 L [52.8 gal], mineral oil HLP

Electrical Specifications

• Network Connection: 1 Gbit

• Power: 70 kW

• Voltage / Phase / Frequency: 400V, 3 phases + neutral, 50Hz/60Hz

• Full-Load Ampere: 100A

• Back-Up Fuse: Provided by installer with 125A

• Short Circuit Rating of Protective Device: 65kA / 480V AC

• Short Circuit Current: 10kA rms symmetrical, 400V max

• Full Load Current of Largest Motor: Approx. 32A

• Control Voltage: 24 VDC
