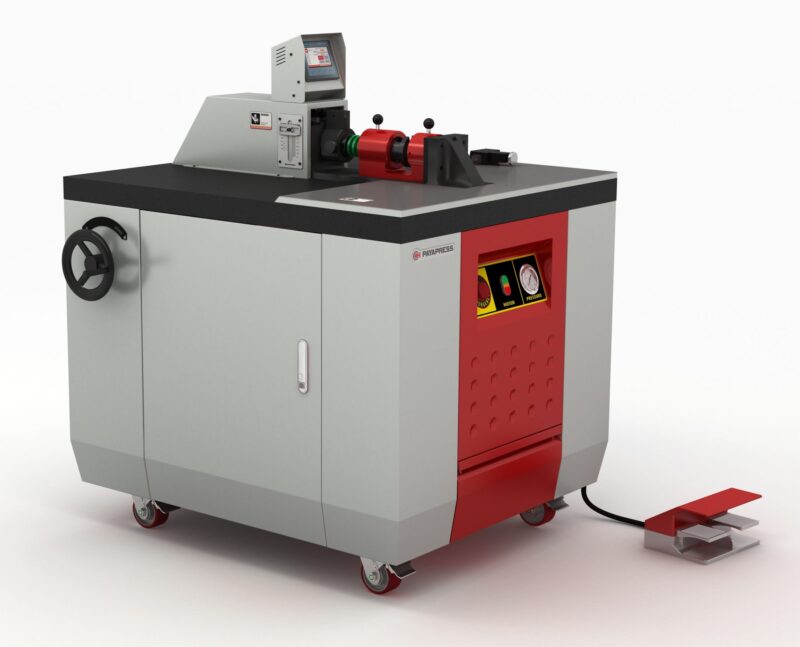

PAYAPRESS WORKSHOP BUSBAR PROCESSING MACHINE

Description

The Payapress HBC-PC120EH Workshop Busbar Processing Machine is a cost-effective and space-saving solution that combines punching, cutting, and bending into one compact unit. Designed for workshops with limited floor space, it delivers efficient busbar processing without compromising on performance or precision.

The bending system is engineered for accuracy and repeatability, featuring separate rotary encoder and linear measuring systems along with a spring back compensation system. A digital angle indicator ensures precise bending results, while rotatable plates help prevent surface damage to the busbar. Optional tooling such as step molds, edge molds, and twist bending molds expand the machine’s versatility for specialized applications.

The punching system provides precise and consistent hole placement with a laser pointer and a 20 position programmable length stopper. Easy-change dies minimize downtime, while a movable stripper plate and double-action hydraulic system prevent die damage and sticking. Die guides and rollers further support smooth and efficient operation.

The cutting system delivers clean, accurate cuts with features such as a centering guide, part rollers, and a high-accuracy length stopper. An optional programmable stopper allows for precise positioning using both absolute and incremental settings. Together, these features make the HBC-PC120EH a dependable and efficient solution for everyday busbar processing needs.

Specifications

SPECIFICATIONS

• Machine Type: 3 in 1 Busbar Processing Machine
• Functions: Cutting, Bending, Punching
• Material Compatibility: Copper and Aluminum Busbar
• Length Stopper: Programmable in 20 Positions (Absolute and Incremental)
• Control Features: Rotary Encoder and Linear Measuring System
• Bending Accuracy: Spring Back Compensation and Digital Angle Indicator
• Machine Design: Compact Footprint for Workshop Use

Equipped With

EQUIPPED WITH

• Separate Cutting, Bending, and Punching Stations
• Rotary Encoder and Linear Measuring System
• Spring Back Compensation System
• Digital Angle Indicator
• Laser Pointer for Hole Positioning
• Easy-Change Die System
• Double-Action Hydraulic System
• Movable Stripper Plate
• Die Guides and Rollers
• Centering Guide and Part Rollers
• High-Accuracy Length Stopper

Key Features

KEY FEATURES

• Economical 3 in 1 Busbar Processing Solution
• Punching, Cutting, and Bending in One Machine
• Compact Design Ideal for Limited Shop Space
• High Precision and Repeatability Across All Functions
• Laser-Guided Hole Positioning for Accuracy
• Easy Die Changes Reduce Downtime
• Double-Action Hydraulics Prevent Die Sticking
• Clean, Precise Cutting with Smooth Material Handling
• Advanced Bending Control with Spring Back Compensation
• Protects Busbar Surface with Rotatable Plates
• Optional Tooling for Specialized Bending Applications
• Programmable Length Stopper for Consistent Results
