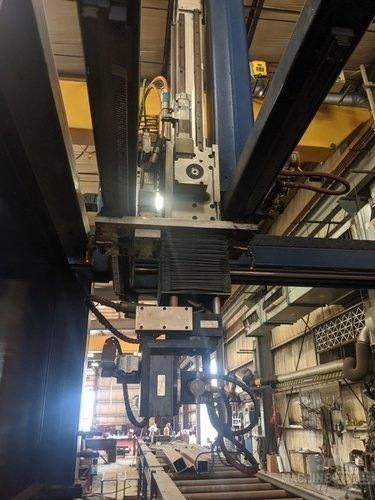

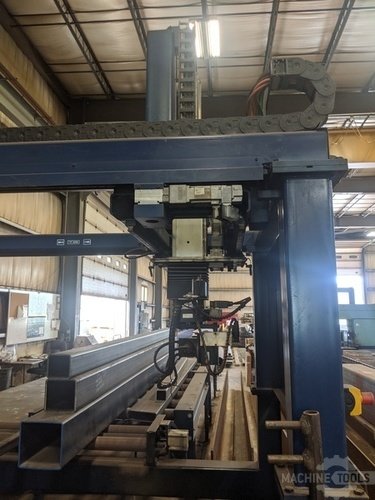

Ocean Liberator CNC plasma cutting system (plasma table with gantry) detail view

Ocean Liberator CNC plasma cutting system (plasma table with gantry) operator-side view

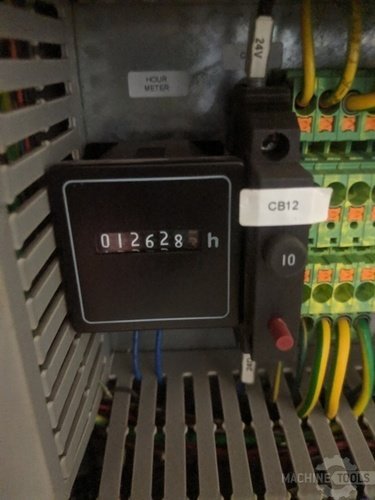

Ocean Liberator CNC plasma cutting system (plasma table with gantry) electrical cabinet

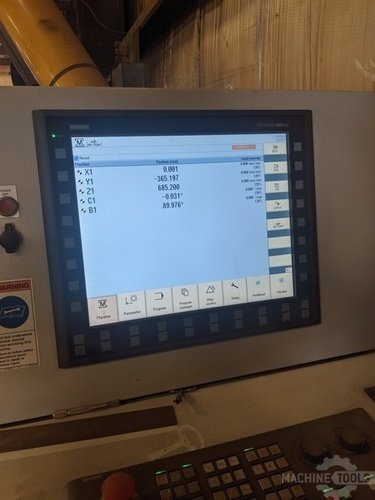

Ocean Liberator CNC plasma cutting system (plasma table with gantry) control panel

Used Machines

OCEAN LIBERATOR

Brand – OCEAN

Model – LIBERATOR

Type – Beam Coping Machines

Year – 2015

Condition – Used – Excellent

Get a Quote

Categories: Used Beam Coping, Used Machines Tags: JR, ocean

OCEAN LIBERATOR

Description

Brand – OCEAN

Model – LIBERATOR

Type – Beam Coping Machines

Year – 2015

Condition – Used – Excellent

Specifications

SPECIFICATIONS

Dimensions	Approx 124″(l) X 96″(w) X 132″(h)
Weight	5,200 Lbs
Control	CNC (Siemens 840Di CNC Controller)

Equipped With

EQUIPPED WITH

Siemens CNC Control
Electric Motor Drive for A-Axis with Gearbox and Rack & Pinion
Front and Rear Material Clamps
Adjustable Material Supports
Operator Safety Features (standard)

Spec Sheet

SPEC SHEET

Maximum Opening Width Between Material Clamps: 50″
Minimum Closed Width Between Material Clamps: 0.13″
Maximum Opening Height: 28″
Minimum Material Length: 127″
Maximum Beam Width: 48″
Minimum Beam Width: 3″
Maximum Flange Height: 24″
Maximum Flange Thickness: 6″
Minimum Plate Thickness: 0.25″
Maximum Plate Thickness: 6″
Minimum Angle Dimensions: 3″ x 3″ x 3/16″
Minimum Square Tube Dimensions: 2.5″ x 2.5″ x 3/16″

A-Axis Specifications:

Electric Motor to Gearbox to Rack & Pinion
Maximum Motor Speed: 6,000 RPM
Gearbox Reduction: 90:1
Drive Pinion Diameter: 1.253″
Pinion Circumference: 3.936″
Rapid Approach: 400 in/min @ 5,081 RPM
Normal Running Speed: 100 in/min @ 1,270 RPM
Cutting Speed: 7.5–30 in/min @ 95–381 RPM
Acceleration to Max Speed: 0.5–1 sec
Approximate Weight of Moving Parts: 200 lbs
Main Machine Weight: 5,200 lbs
