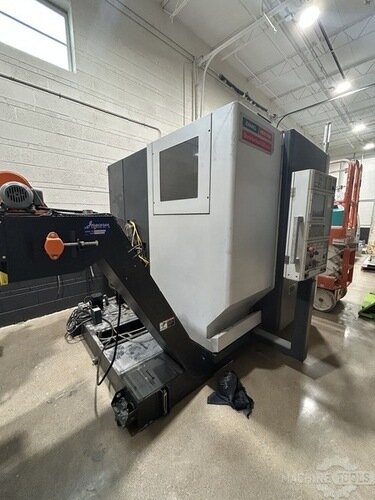

MORI SEIKI DURAVERTICAL 635 ECO
Brand – MORI SEIKI
Model – DURAVERTICAL 635 ECO
Type – Vertical Machining Centers
Condition – Used – Good
MORI SEIKI DURAVERTICAL 635 ECO
Description
Description
Specificaitons
Specificaitons
SPECIFICATIONS
| X | 25″ |
| Y | 20″ |
| Z | 18″ |
| Power | 15.3 hp |
| RPM | 12,000 RPM |
| # ATC | 20 |
| Table-W | 30″ |
| Table-L | 20″ |
| Taper | 40 |
| Dimensions | 88″ x 108″ x 102″ |
| Weight | 11,000 lbs |
| Control | CNC (MSX-853- IV) |
Spec Sheet
Spec Sheet
SPEC SHEET
- Spindle Taper: CAT 40
- Spindle Speed: 12,000 RPM
- Horse Power (30 min rating): 15.30
- Number of Tools: 30
- Tool Change Time C-to-C (sec): 5.00 1.60sec tool-to-tool
- Max. Tool Length (in.): 11.810
- Max. Tool Diameter (in.): 3.100(with empty adacent
pockets)Opt.4.921 - Max. Tool Weight 13.20
- X-Axis Travel: 25.000″ 984 ipm 1,200 ipm
- Y-Axis Travel: 20.100″ 984 ipm 1,200 ipm
- Z-Axis Travel: 18.100″ 984 ipm 1,200 ipm
- X,Y,Z Max Feed: 984 IPM
- Z,Y,Z Rapid Rate: 1200 IPM
- Machine Dimensions (l x w x h)(in.): 76″ x 103″ x 104″
- Machine Weight (lbs): 8,360
- Spindle Nose To Table (Max): 22.800
- Spindle Nose To Table (Min): 4.700
- Machine: 88″ x 108″ x 102″ 8,360 lbs
- Chip Conveyor: 120″ x 74″ x 52″ 1,500 lbs
