MITSUBISHI BH8525
MITSUBISHI BH8525
Description
Description
Specifications
Specifications
SPECIFICATIONS
| Tonnage | 94 T |
| Overall Length | 102″ |
| Between Housings | 87″ |
| Stroke | 9.84″ |
| Weight | 15,400 lbs |
Equipped With
Equipped With
EQUIPPED WITH
- Movable Foot Switch
- Dual Telescoping Back Gauge Fingers “FF Axis”
- DIAMONDBEND Brake Offline Programming Software
- Dual Drive Mechanism
- Crowning System
- Automatic Thickness Detection System

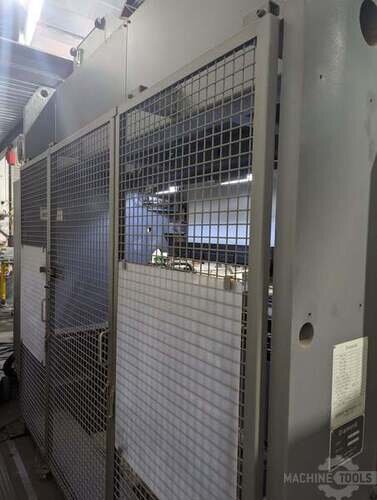

- Rear Safety Fence
Spec Sheet
Spec Sheet
SPEC SHEET
- Capacity 94 US Tons
- Ram Repeatability ± 0.00004 Inch
- Approach Speed Max. 472 IPM
- Bend Speed Max. 24 IPM
- Return Speed Max. 472 IPM
- Punch holder Height 5.9 Inch
- Back Gauge X distance 33.5 Inch
- Back Gauge Repeat Accuracy 0.0002 Inch
- R Axis Travel 7.8 Inch
- Bending Length 102 Inch
- Distance Between Frames 86.6 Inch
- Ram Stroke 9.84 Inch
- Daylight w/o punch holders 20.8 Inch
- Daylight w/ standard holders 14.9 Inch
- Throat Depth 15.7 Inch
- Table Height 35.4 Inch
- Table Width 6.7 Inch
- Weight 15,400 lbs.
- Oil Capacity 12.6 Gallon
- KVA 9 KVA
- Standard Voltage 208 V
