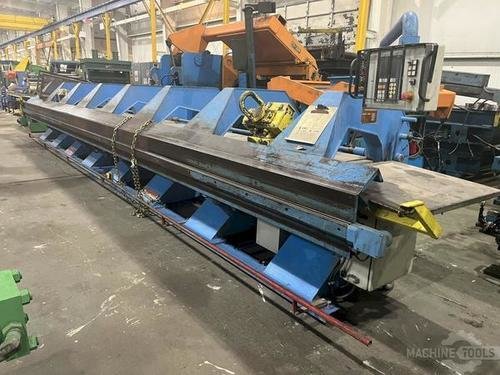

JORNS AG
JORNS AG
Description
Description
Specifications
Specifications
SPECIFICATIONS
| Max Thickness | 0.05″ |
| Max Thickness (gauge) | 18 gauge |
| Overall Length | 21′ |
| Weight | 11440 |

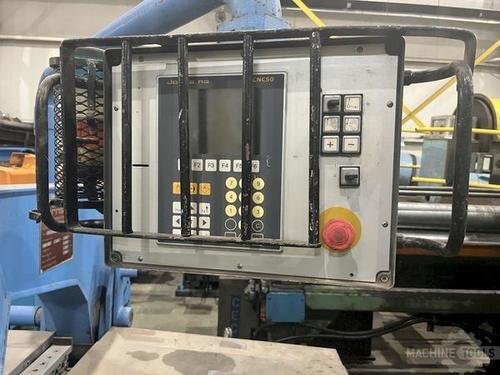

| Control | CNC (CNC50) |
Equipped With
Equipped With
EQUIPPED WITH
- UNITEK Drive System
- Hydraulic Clamping System
- CNC-Controlled Feeding and Bending System
- Adjustable Upper Cheek for Variable Sheet Thickness
- Automatic Feed and Stop Position Control
- 480V, 3-Phase Electrical System
- Heavy-Duty Machine Frame and Drive (4.6 kW Motor)
Spec Sheet
Spec Sheet
SPEC SHEET
- Year: 2000
- Model: 125-SM-CNC-400A-10
- Max Material Width: 21′
- Feeding Depth: 39″ (1,000 mm)
- Max Bending Angle: 140°
Thickness Capacities:
- Mild Steel: 0.050″ (1.25 mm)
- Aluminum: 0.078″ (2 mm)
- Stainless Steel: 0.031″ (0.80 mm)
Mechanical Specs:
- Opening Stroke (Max): 7.8″ (200 mm)
- Clamping Force: 30 kN
- Upper Cheek Adjustment:
- Min Thickness: 0.019″ (0.5 mm)
- Max Thickness: 0.078″ (2 mm)
- Hydraulic Pressure: 140 bar
- Feed Rate: 17 m/min
- Stop Depth Range: 1″ (25 mm) to 39.3″ (1,000 mm)
Power Requirements:
- Voltage: 480V, 60 Hz, 3-Phase
- Motor Drive: 4.6 kW
Dimensions & Weight:
- Length Overall: 36′ 2″
- Width Overall: 5′
- Height Overall: 73′ 6″
