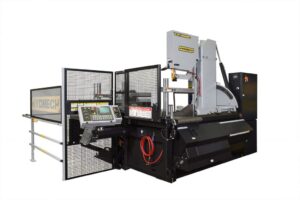

Hydmech V-21/26APC
Automatic vertical band saw with the ability to miter from 60° left to 60° right.
A heavy duty vertical saw, the V-21/26APC efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications. This model features user friendly, graphical icon programming for miter cutting.
Featuring a large 26″H x 21″W capacity, 10 HP motor, and 1 1/2″ blade, the V-21/26APC is a reliable choice for all your automated vertical metal cutting applications.
Videos Hydmech V-21/26APC
Hydmech V-21/26APC
Description
Specifications
Specifications
| Capacity | Rectangular (h x w) | |
| 90° | 26” x 21” (22” x 21” w/bund) | |
| 45° Right | 18” x 21” (15.5” x 21” w/bund) | |
| 45° Left | 18” x 21” (15.5” x 16.5” w/bund) | |
| 60° Right | 12 1/2” x 21” (7” x 21” w/bund) | |
| 60° Left | 11” x 21” (7” x 16.5” w/bund) | |
| Blade Size | 1 1/2” x 19’ 4” | |
| Blade Drive | 10 HP VFD | |
| Machine Voltage | 480 v (all other voltages require optional transformer) | |
| Blade Speed | 65-385 SFM | |
| Automatic Multi-Indexing | 60″ (120″ optional) | |
| Machine Weight | 14,700 lbs. | |
| Table Height | 44” | |
| Dimensions (w x l x h) | 181” x 184” x 112” | |
Standard Features
Standard Features
STANDARD FEATURES
- 4 ° canted head allows for efficient cutting and improved blade life
- 60″ bar feed, left side
- Shuttle features automatic multi-indexing up to 60″ (120″ optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.
- Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
- Hydraulic head tilt
- Cast iron band wheels
- Hydraulic DDF system
- Two full stroking hydraulic vises
- Hydraulically powered, programmable guide arm attached to saw column.
- 8.5″ Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue
- 10 HP VFD. True direct blade drive – no belts/pulleys
- Blade chamber separates material from cut part
- Hydraulic chip conveyor
- Replaceable blade brush
- Robust steel base
- Out of stock switch
- Blade breakage switch Easy access electrical panel and hydraulics
- Pop-up feed roller – one, opposite bar feed
- Hydraulic band tensioning with digital readout
- Replaceable carbide guide inserts
- 3 HP hydraulic pump provides system pressure
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
- Variable vise pressure
Automatic, Hydraulic Powered Mitering
Mitering from 60 degrees left to 60 degrees right. The control panel features a digital angle display. Head tilt is controlled hydraulically.

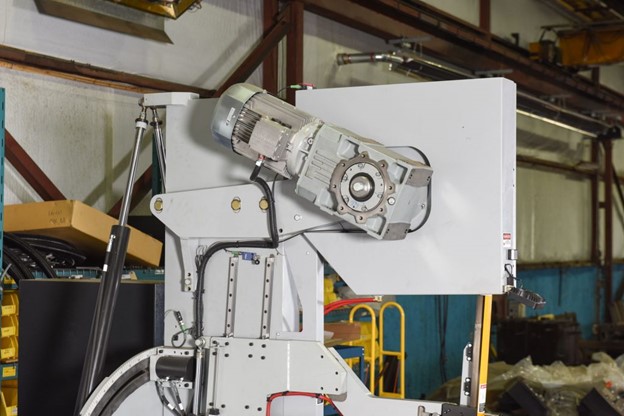

10 HP Blade Drive
The Motor and Gear box are bolted together. This results in better transfer of power between the two moving parts. Other benefits include lower maintenance costs, better torque, and less vibration resulting in better blade life.

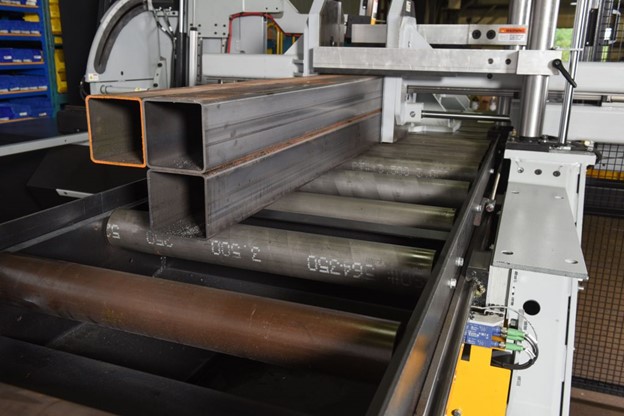

Automatic Multi-indexing
Indexes material quickly and accurately, up to 60” or 120” optional in a single stroke. Shuttle carriage moves on linear bearings and is driven by a rack and pinion servo motor.

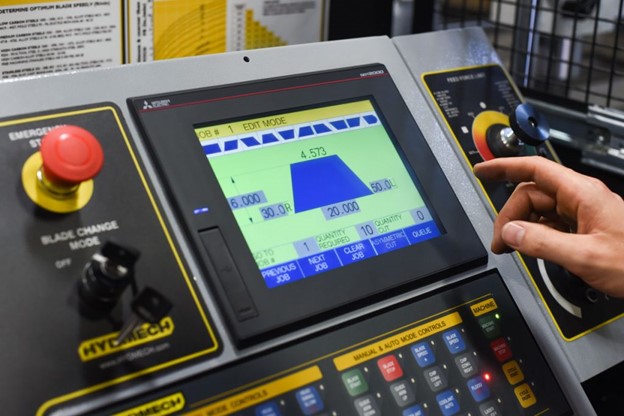

Graphical Icon Programming
User friendly, graphic icon programming makes programming angles simple for the operator.
Optional Features
Optional Features
OPTIONAL FEATURES
- Chip bucket with pump
- Full capacity hydraulic overhead bundling
- Mist lubrication
- Tall square vise inserts
- Out feed vise
- Out feed vise bundling
- Right side infeed shuttle
- 10’ shuttle infeed
- Bridge/interface bracket
- Powered bridge/interface bracket
- Idler conveyors
- Powered conveyors
- Power transformer
